Monitoring the S
DI Physical Layer
To Configure Phy
sical Layer
Alarms

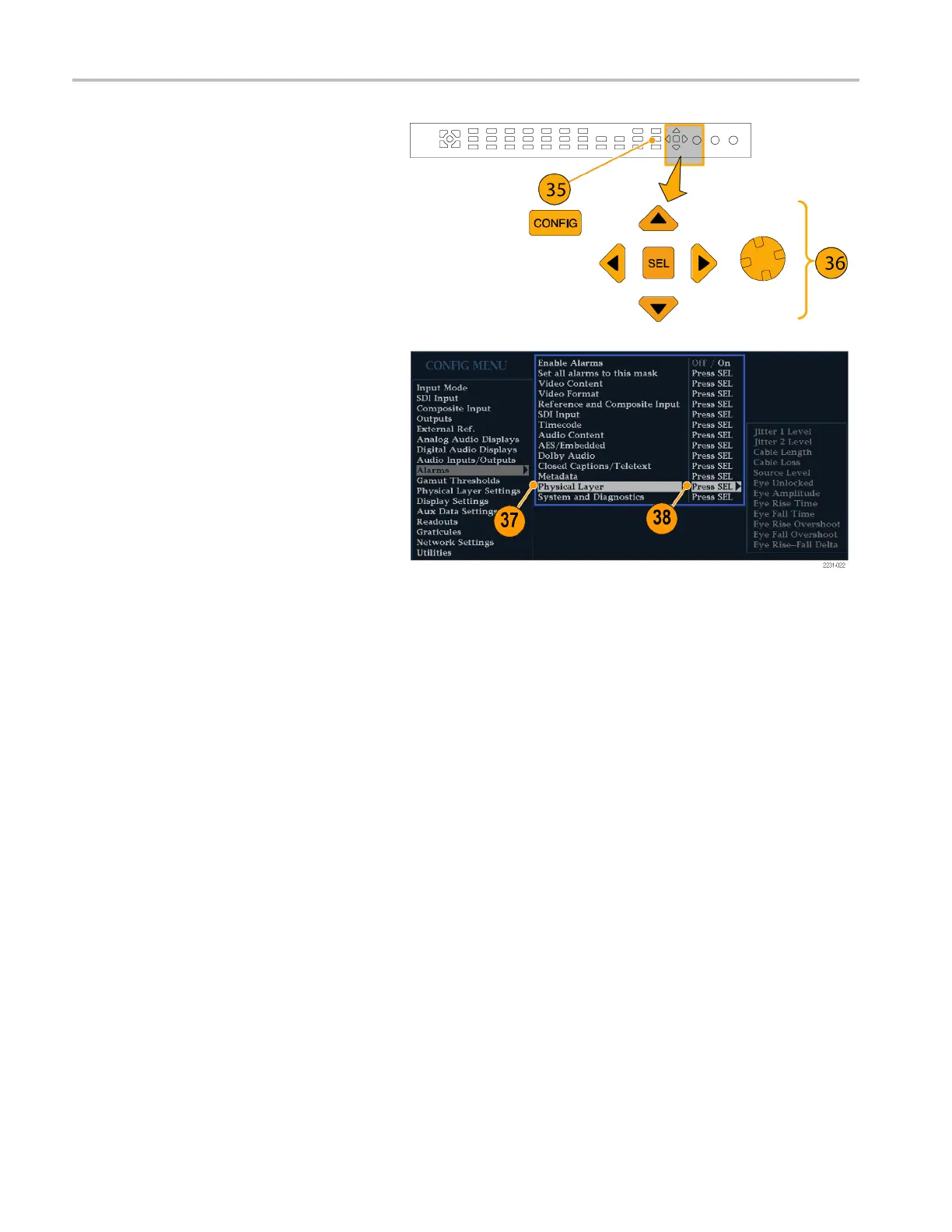

35. Press the CONFIG button to display the
Configuration menu.
36. U se the selec tion (arrow) keys, the SEL
button, and the General knob to make
the menu selections in the steps that
follow.
37. Select Alar
ms and then select Physical
Layer.
38. Press SEL and set the response type for
each of the Physical Layer alarms. (See
page 113, Using
Alarms.)
NOTE. For instruments with Option DL and
SIM, only the single, currently selected input
will be moni
tored.
60 Waveform Rasterizers Quick Start User Manual
