User’s Manual 9-17
Optional Devices
5. Lift the cover up and out to remove it.

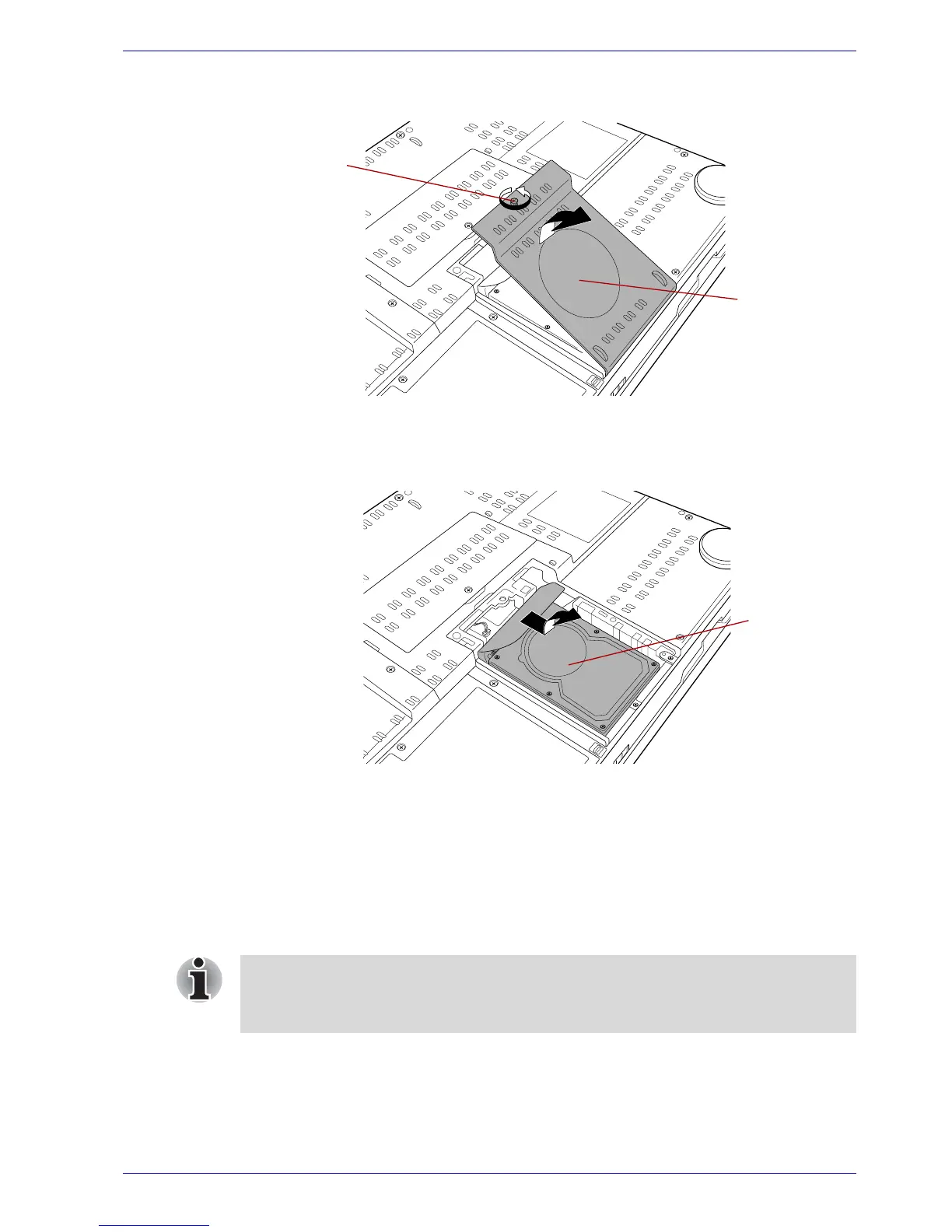

Figure 9-15 Removing the Hard disk drive cover
6. With the hard disk drive in a vertical position, lift it straight up and away
from the connector.
Figure 9-16 Removing the Hard disk drive pack
Installing the Hard disk drive pack
To install the Hard disk drive pack, follow the steps below.
1. Move the connector until it is vertical.
2. Hold the hard disk drive vertically with its label on the left.
3. Connect the hard disk drive to the connector.
Screw
Hard disk drive
cover
Hard disk drive
pack
Ensure that the hard disk drive is connected to the connector in a vertical
position. If the hard disk drive is slanted and connected to the connector, it
might damage the connector.
To Next Page
