User’s Manual 2-9
The Grand Tour
Front with the display open
This section shows the front of the computer with the display open. Refer to
the appropriate illustration for details. To open the display, push the display
latch on the front of the display and lift up. Position the display at a
comfortable viewing angle.

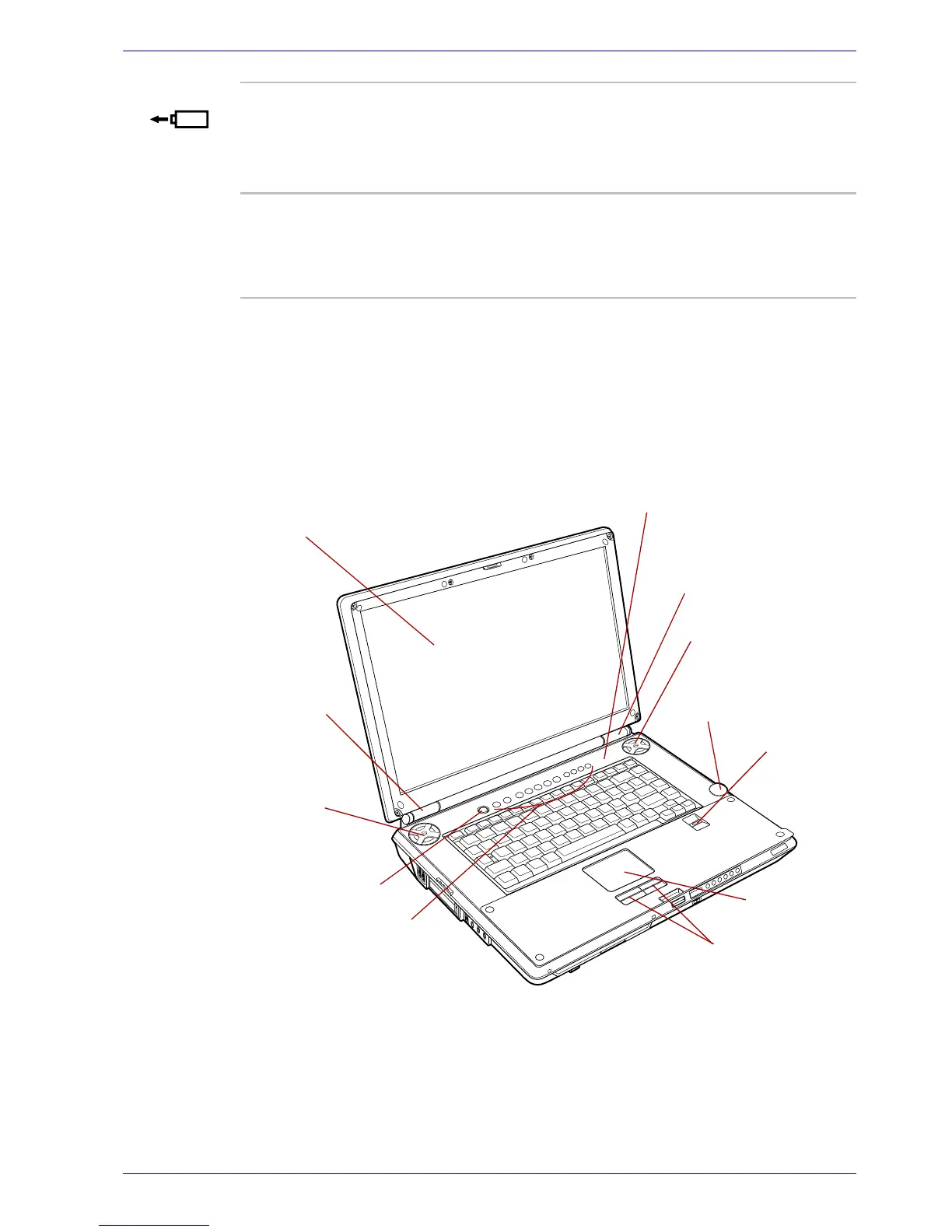

Figure 2-6 The front of the Touch Pad model with the display open
Battery release
latch
Slide and hold this latch to release the battery
pack for removal.
For detailed information on removing the battery
packs, refer to Chapter 6, Power.
Battery pack The battery pack powers the computer when the
AC adaptor is not connected. For detailed
information on the battery pack, refer to Chapter
6, Power.
Stereo speaker
(Right)
Touch Pad
control buttons
Touch Pad
Power button
Display hinge
Stereo speaker
(Left)
Front operation button
(eleven buttons)
Display hinge
Volume control
LCD Sensor switch (Not shown)
Display screen
Fingerprint
Sensor
