The Grand Tour
Right side

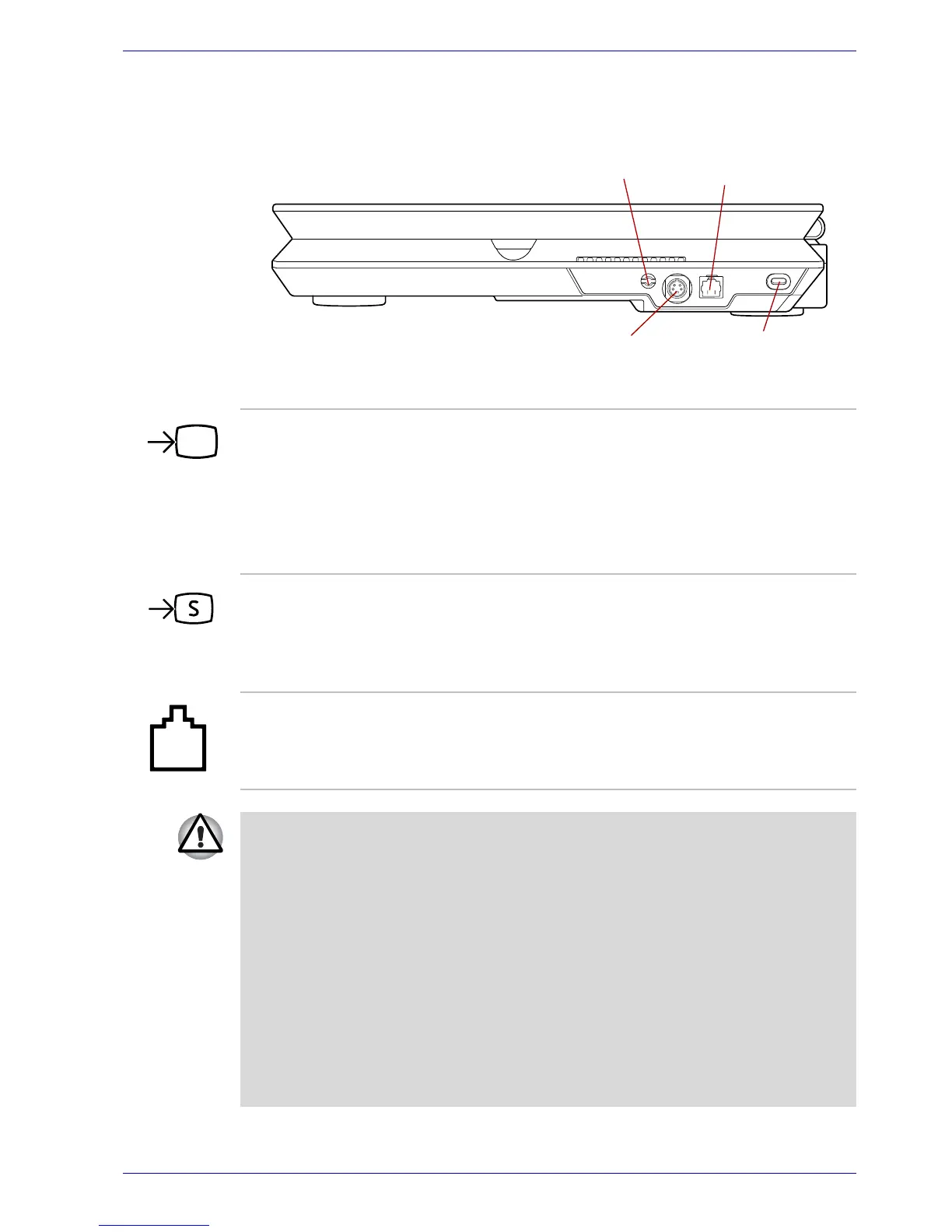

Figure 2-3 shows the computer’s right side.
Figure 2-3 The right side of the computer
Modem jack
VIDEO-IN port
S-Video-in port
Security lock slot
VIDEO-IN port With the bundled VIDEO-IN cable, the CATV or
satellite set top boxes can be connected to the
computer to view the channels.
Please refer to Chapter 8, Using the Remote
Controller, Front operation button and
QosmioPlayer for details on how to connect the
computer with the VIDEO-IN cable.
S-Video-in port A camcorder or other recording device can be
connected to your computer via the S-Video-in
cable for importing video data. Connect the cable
to this port for this operation. Refer to the S-
Video-in section in Chapter 9, Optional Devices.
Modem jack In areas where an internal modem is installed as
standard equipment, there is a modem jack that
lets you use a modular cable to connect the
modem directly to a telephone line.
■ Connection to any communication line other than an analog phone line
could cause a PC system failure.
■ Connect the built-in modem only to ordinary analog phone lines.
■ Never connect the built-in modem to a digital line (ISDN).
■ Never connect the built-in modem to the digital connector on a
public telephone or to a digital private branch exchange (PBX).
■ Never connect the built-in modem to a key telephone system for
residences or offices.
■ Never operate your PC on AC power during a thunderstorm. If you see
lightning or hear thunder, immediately turn off the PC. An electric surge
caused by the storm, may result in a system failure, loss of data or
hardware damage.
