9-18 User’s Manual
Optional Devices
4. With the connector connected, lower the hard disk drive down to the
storage position.

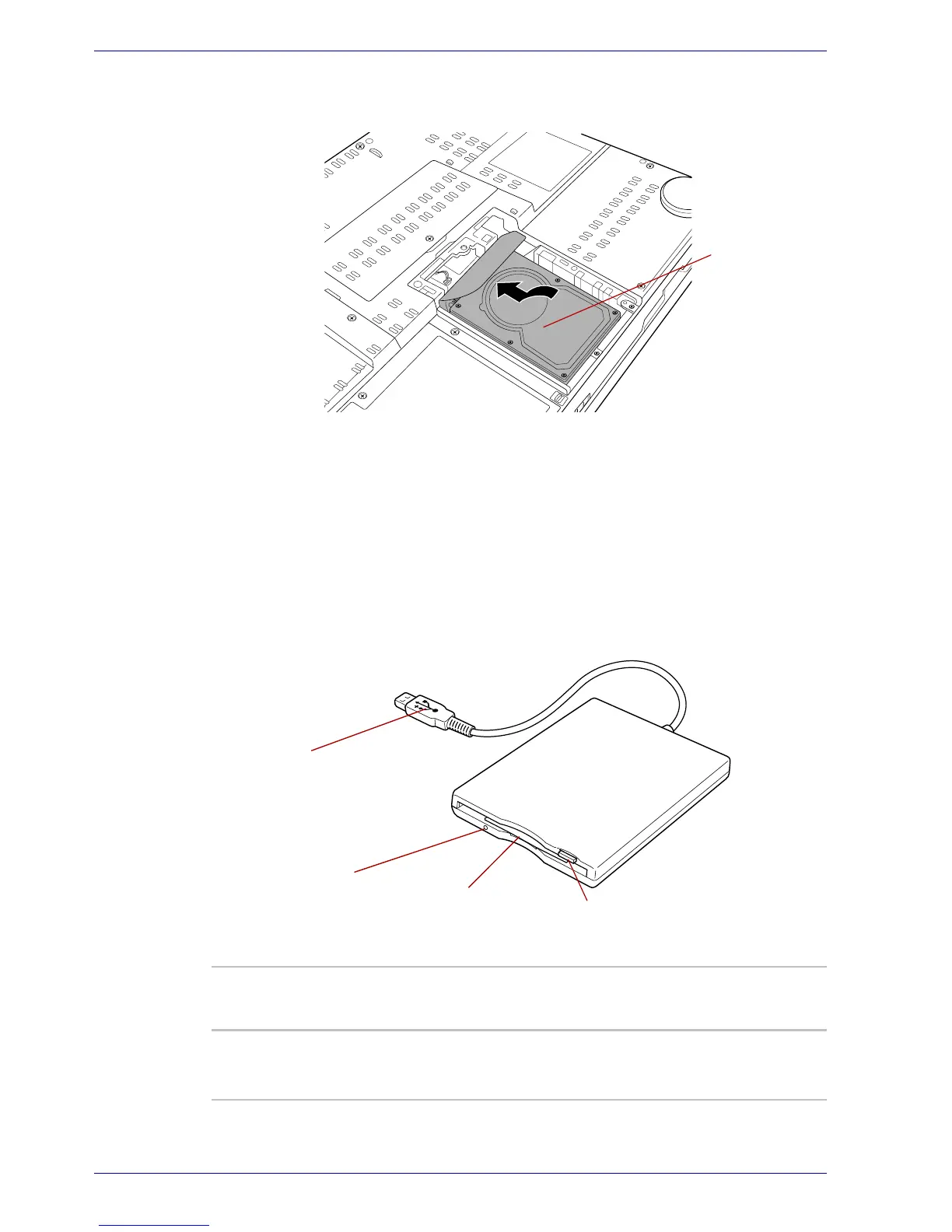

Figure 9-17 Installing the Hard disk drive pack
5. Seat the cover and press down until the latches click into place.
6. Secure the cover with a screw.
7. Turn your computer over.
USB floppy disk drive
USB floppy disk drive accommodates 1.44-megabyte or 720-kilobyte floppy
disks. It connects to the USB port.
Figure 9-18 USB floppy disk drive
Hard disk drive
pack
USB connector Insert this connector into one of the USB ports of
your computer.
Disk-In-Use
Indicator
This indicator lights when the floppy disk is being
accessed.
Eject button
Floppy disk slot
Disk-In-Use
Indicator
USB connector
