100 CLCH-SVX07C-EN
Controls Interface
The portable operator display is used for temporary connection to and operation of Tracer MP580/
581 controllers. With the portable operator display, you can monitor data, change setpoints,
monitor alarms, and override points. The portable operator display includes a 10 ft (3 m) cable with
connector that is stored in the storage compartment of the carrying bag. The cable cannot be
disconnected from the operator display. Keep this document with the portable operator display for
access to calibration and cleaning instructions.
Note: The portable operator display is not used for timeclock scheduling. To provide scheduling
you must use a Tracer Summit system.
Connecting the operator display
To connect the portable operator display:
1. Locate the factory-provided service module (see Figure 91).
2. Attach the operator-display cable to the operator-display connector on the service module. The
operator display receives power from the controller and turns on automatically when it is
connected.
Setting up the operator display
NOTICE:
Equipment Damage!
To clean the operator display, use a cloth dampened with commercial liquid glass cleaner.
Spraying water or cleansers directly on the screen could result in equipment damage.
This section shows how to calibrate the operator display touch screen and how to adjust the
brightness and contrast. To set up the operator display screens and security, see the Tracer MP580/
581 Programmable Controller Programming guide (CNT-SVP01B-EN).

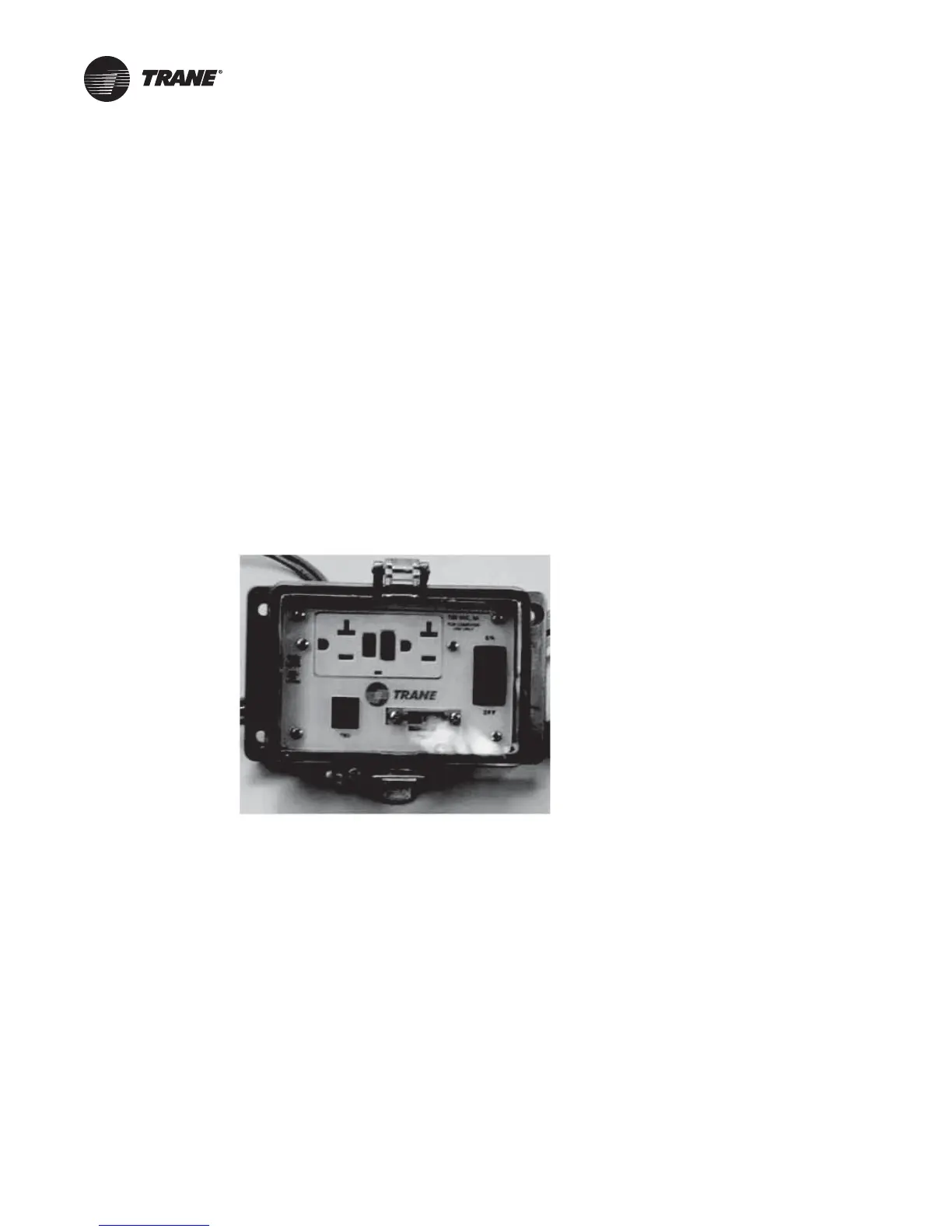

Figure 91. Service module
