Routine Maintenance
7. Be careful any contaminated material does not contact other areas of the unit or building.
Properly dispose of all contaminated materials and cleaning solution.
Bearing Set Screw Alignment
Fan Bearing Lubrication
NOTICE:
Bearing Failure!
Do not mix greases with different bases within the bearing. Mixing grease within the bearing
could result in premature bearing failure.
The grease used in electric motor bearings is usually not compatible with the grease used in fan
bearings. Never mix the two grease types! See Table 35 for compatible greases and Tabl e 3 6 for
maximum grease capacity.
Note: Lubricate the bearing according to the motor manufacturer’s recommendations and use the
manufacturer-recommended grease.
• Fan bearings without lubrication lines are sealed bearings. Re-lubrication is not required.
• Fan bearings equipped with lubrication lines should be lubricated with a lithium-based grease
that conforms to NLGI No. 2 for consistency.

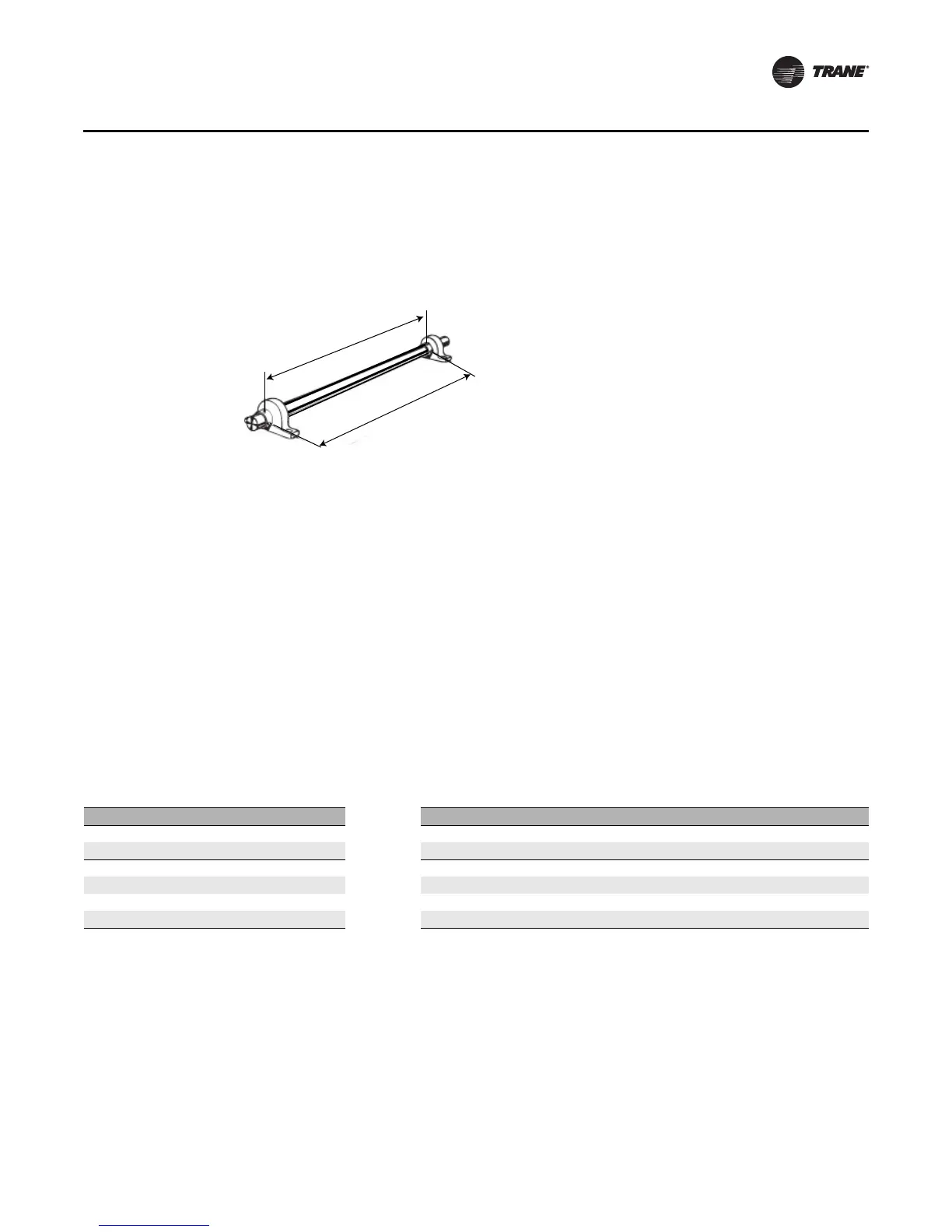

Figure 98. Alignment
Align bearing set screws as illustrated in
Figure 98. Table 10 on page 64 provides bearing
set screw torque measurements.
Align set screws
Align set screws
Table 35. Compatible Greases Table 36. Fan bearing maximum grease capacity
Type Shaft size (inches) Capacity (fluid ounce)
Texaco Multi Fak 2 1/2 - 3/4 1/7
Shell Alvania 2 7/8 - 1 3/16 3/8
Mobil 532 1 1/4 - 1 1/2 5/8
Chevron Dura-Lith 2 1 11/16 - 1 15/16 7/8
Exxon Beacon 2 - 2 7/16 1 1/4
Keystone 84H 2 1/2 - 2 15/16 2
