Installation - Mechanical
General Lifting Considerations
WARNING
Heavy Objects!
Always place, assemble, and suspend sections/subassemblies one at a time. Do not lift units in
windy conditions. Do not raise units overhead with personnel below unit. Failure to follow these
instructions could result in death, serious injury, or equipment damage.
WARNING
Improper Unit Lift!
Test lift unit approximately 24 inches to verify proper center of gravity lift point. To avoid
dropping of unit, reposition lifting point if unit is not level. Failure to properly lift unit could
result in death or serious injury or possible equipment or property-only damage.
NOTICE:
Equipment Damage!
Keep skid in place until unit is ready to set. Do not move unit or subassembly without the skid in
place as shipped from the factory. Premature skid removal could result in equipment damage.
Before preparing the unit for lifting, estimate the approximate center of gravity for lifting safety.
Because of placement of internal components, the unit weight may be unevenly distributed, with
more weight in the coil and fan areas. Approximate unit weights are provided in “Unit Dimensions
and Weights” on page 16. Refer to the unit submittals for actual section weights. Test the unit for
proper balance before lifting.
For outdoor air handlers, preparation of the roof curb or pier mount and roof openings must be
completed before lifting to the roof. See CLCH-SVN04A-EN Roof Curbs for Performance Climate
Changer Air Handlers installation instructions for details.

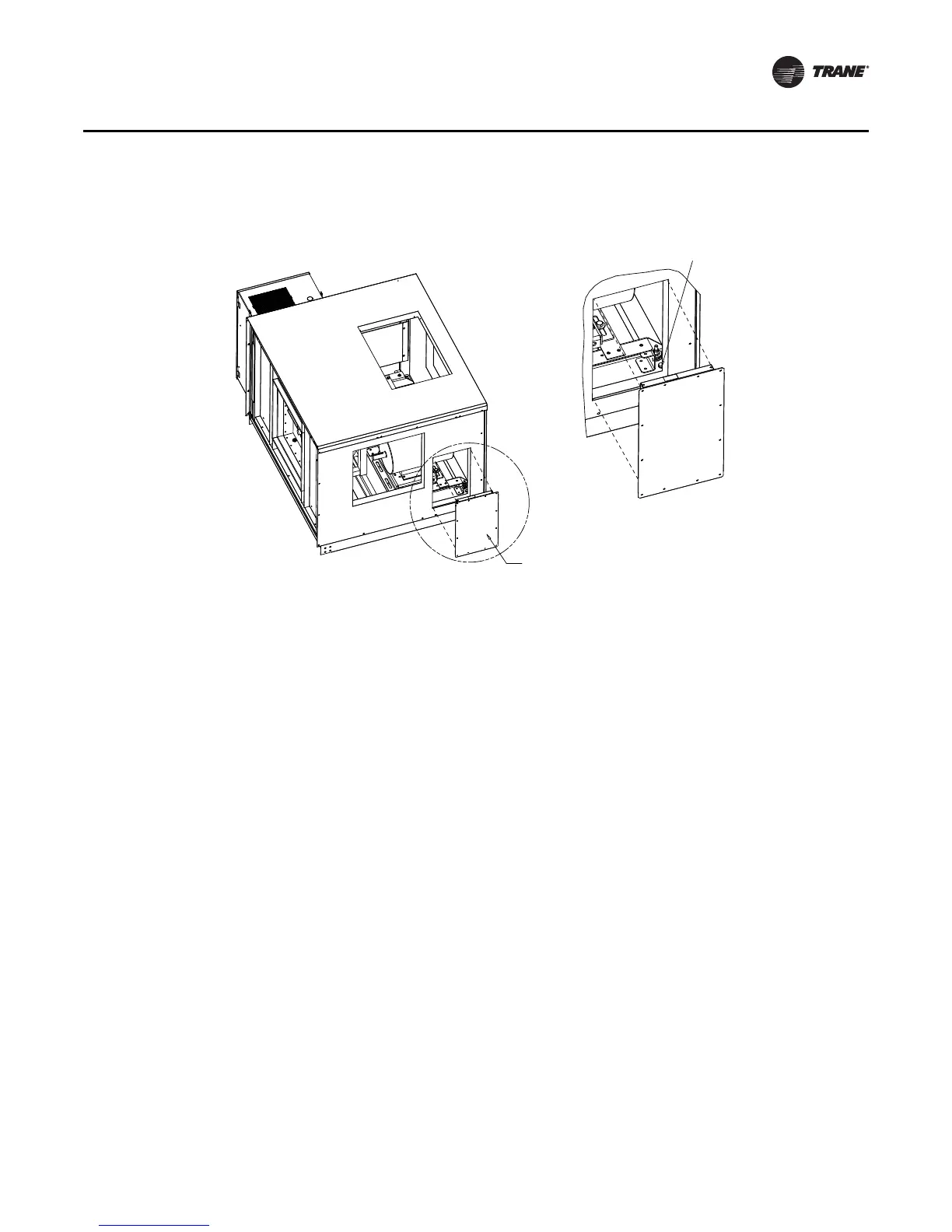

Figure 5. Plug panel plate
