46 CLCH-SVX07C-EN
Installation - Mechanical
Vertical SDU/Winterizer Indoor Air Handler Assembly
To assemble dissimilar unit sizes in a vertical SDU/winterizer configuration:
1. Apply gasketing to the mating surface of the secondary unit (see Figure 35).

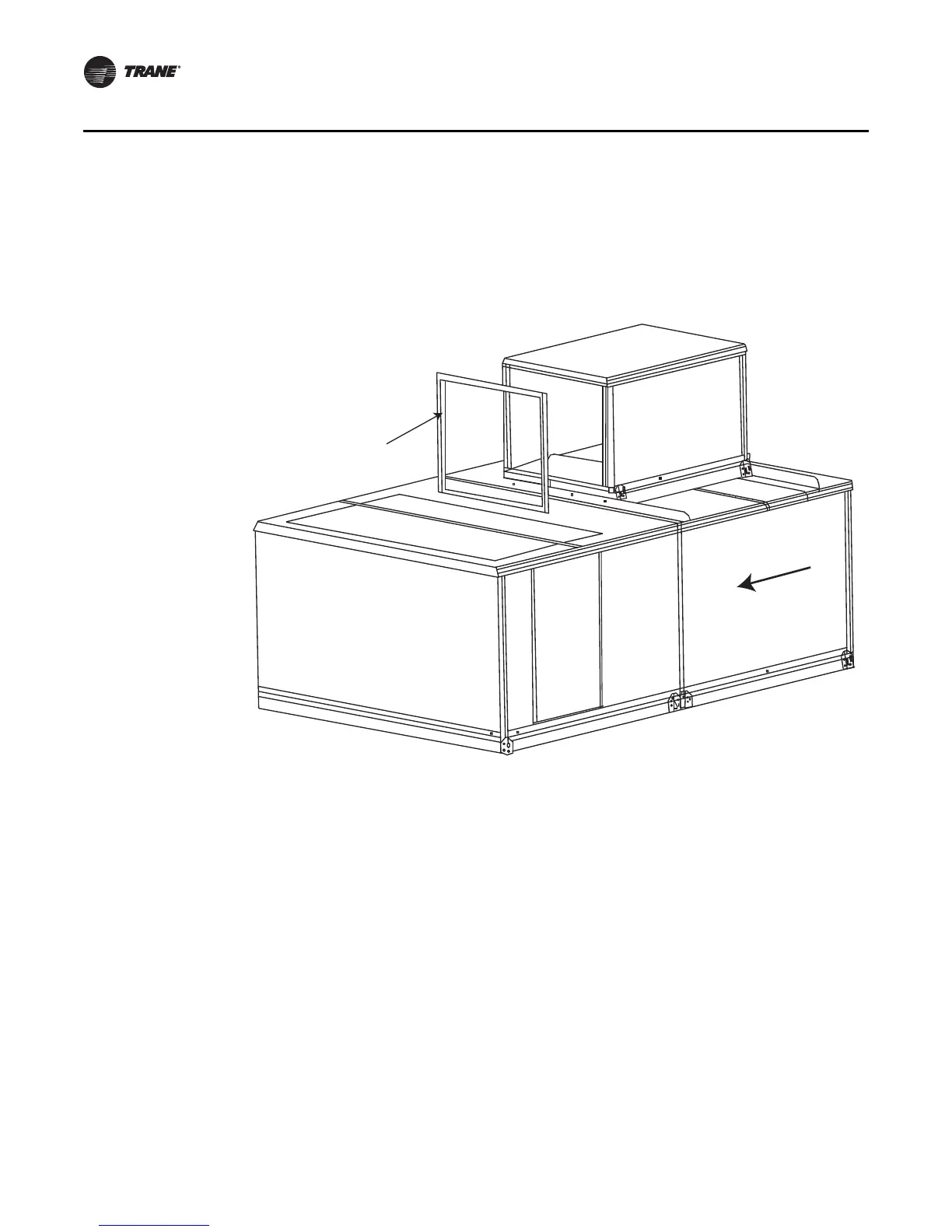

Figure 35. Apply gasketing to mating surface of secondary unit.
Airflow
Gasket
1.0 inches T x 1.0 inches W
