16 CLCH-SVX07C-EN
Unit Dimensions and Weights
Note: For specific dimensional and weight information, refer to the unit submittals. The
dimensions and weights in this manual are approximate. Trane has a policy of continuous
product and product data improvement and reserves the right to change design and
specifications without notice.
Service Clearances

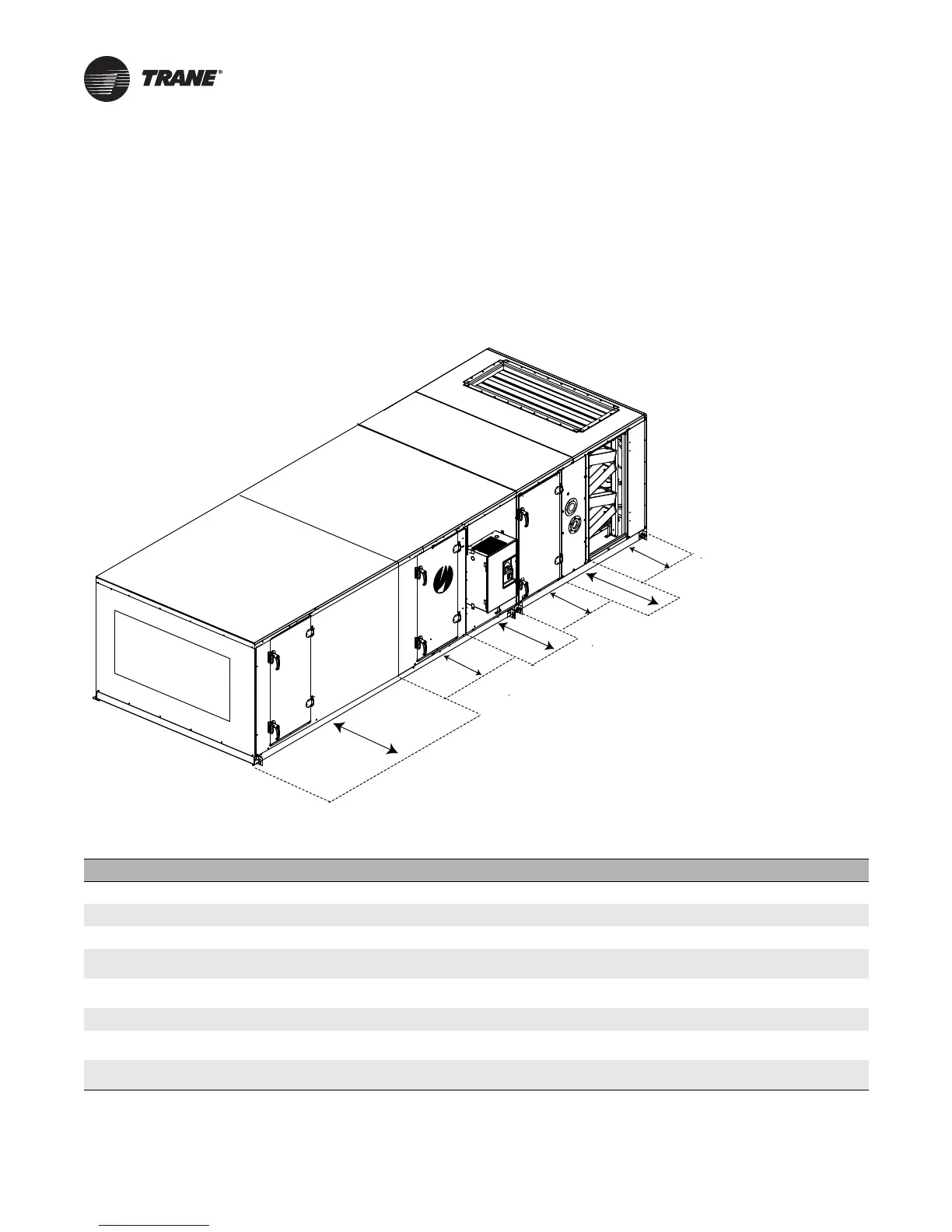

Figure 3. Service Clearance
Filter mixing box
Coil
Fan
Gas heat
Access
door
UV
lights
VFD
F
E
D
C
B
A
Table 3. Service clearances (inches)
Component 3 4 6 8 10 12 14 17 21 25 30 35 40 50 57 66 80 100 120
A (filter)
48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 52 56 58 58
B (coil)
48 59 59 66 77 82 87 87 95 95 109 115 128 141 141 156 156 170 197
C (UV Lights)
48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 52 56 58 58
D (external
starter or VFD)
61 61 61 61 61 61 61 61 64 64 64 64 64 64 64 64 64 64 64
D (internal
starter or VFD)
48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48
E (fan)
48 48 48 48 51 54 58 61 60 66 66 66 70 77 77 93 93 101 101
F (gas heat -
Ext Vestibule)
N/A N/A 89 90 108 100 100 105 115 115 118 136 140 156 156 170 179 180 N/A
F (gas heat -
Int Vestibule)
N/A N/A 56 63 74 79 84 84 92 92 106 112 125 138 138 153 153 167 194
Note: At a minimum, the above clearance dimensions are recommended on one side of the unit for regular service and maintenance. Refer to as-built
submittal for locations of items such as filter access doors, coil, piping connections, motor locations, hoods, pipe cabinets, etc. Sufficient clearance
must be provided on all sides of unit for removal of access panels, plug panels, or section-to-section attachment brackets. Clearance for starters, VFDs,
or other high-voltage devices must be provided per NEC requirements.
