3-40 OM 25-3503 us – Edition 4.1 * * 2503_3503b330.fm
Operation
Protective FOPS structure/small screen – category I (option)
Option starting cabin no. 78626
Crushing hazard! Falling objects.
Causes serious injury or death.
☞ Install a protective FOPS structure in areas with danger of falling objects.
☞ Machine operation is prohibited without a protective FOPS structure.
Information!
The protective FOPS structure corresponds to category I according to EN ISO
3449:1992.
• The machine owner must ensure that the hazard situation is evaluated and that
the national regulations are observed.
• The machine owner must ensure that only work is performed that does not
require any higher protection.
• Accidents cannot be fully avoided despite equipping a machine with protective
structures.
Assembly
1 Stop and park the machine. Stop the engine.
2 A minimum 2 persons are required for installing/removing.
3 Tighten screws A (M10) and lock nuts on the left and right to 45 Nm (33 ft.lbs.).
4 Tighten screws B (M12) and lock nuts on the left and right to 87 Nm (64 ft.lbs.).

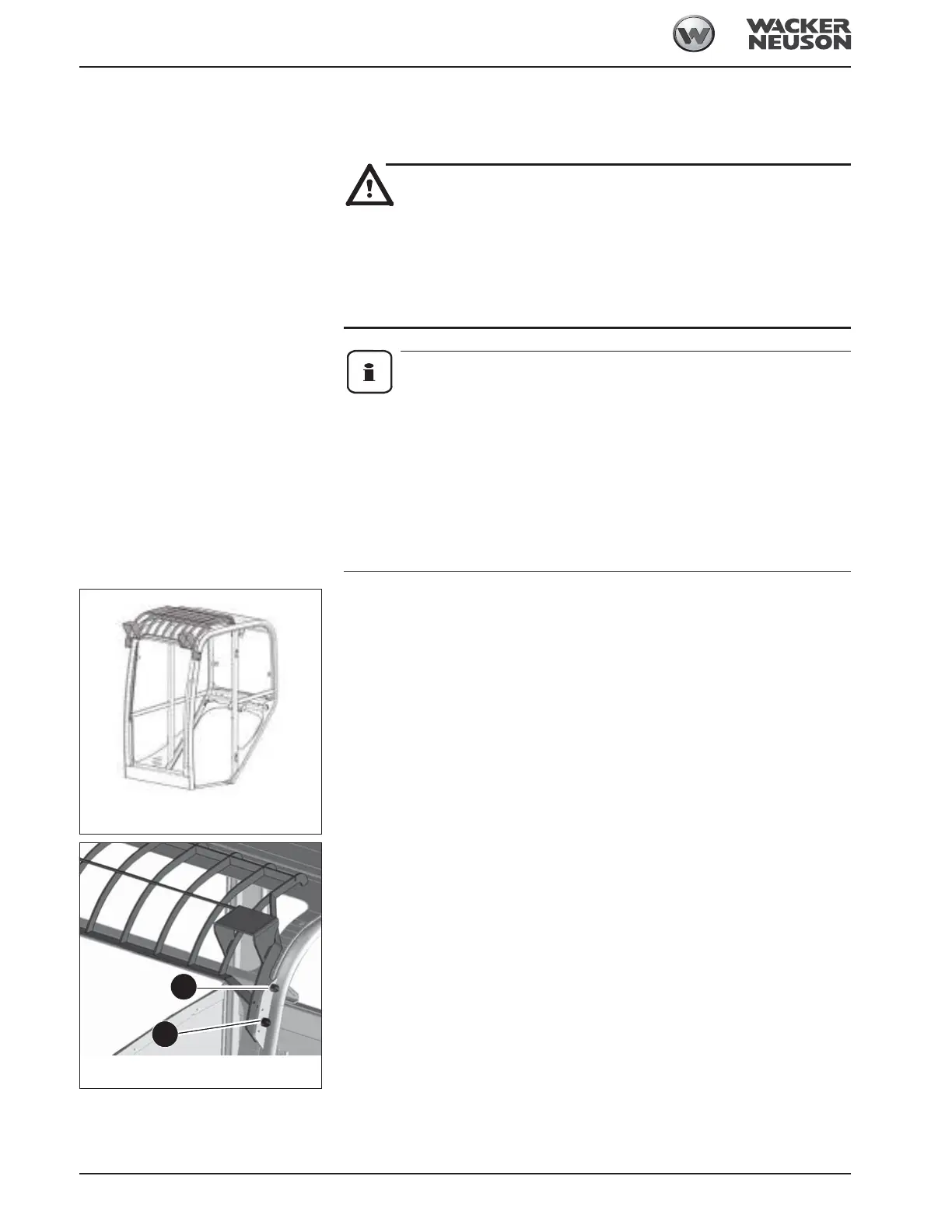

Fig. 116: Protective FOPS structure category I (symbolic
representation)
Fig. 117: Protective FOPS structure category I (assembly)
B
A
