Maintenance
From serial no. AG02695
☞ The lubrication point is located at the front of the VDS console.
1 Drive the machine over a pit.
2 Lower the stabilizer blade to the ground.
3 Lower and support the boom to prevent it from lowering into the pit.
4 Stop the engine, remove the starting key and carry it with you.
5 Apply grease to lubrication point D with five strokes of the grease gun.
6 Start the engine, raise the boom and the stabilizer blade.
7 Rotate the upper carriage by 90°.
8 Repeat steps 2 – 7 three times until the upper carriage is back in its initial position.
9 Rotate the upper carriage several times by 360°.
VDS lubrication points (option)
Apply grease to lubrication points E once a week.
– see Tilting the upper carriage (option 3503) on page 3-87

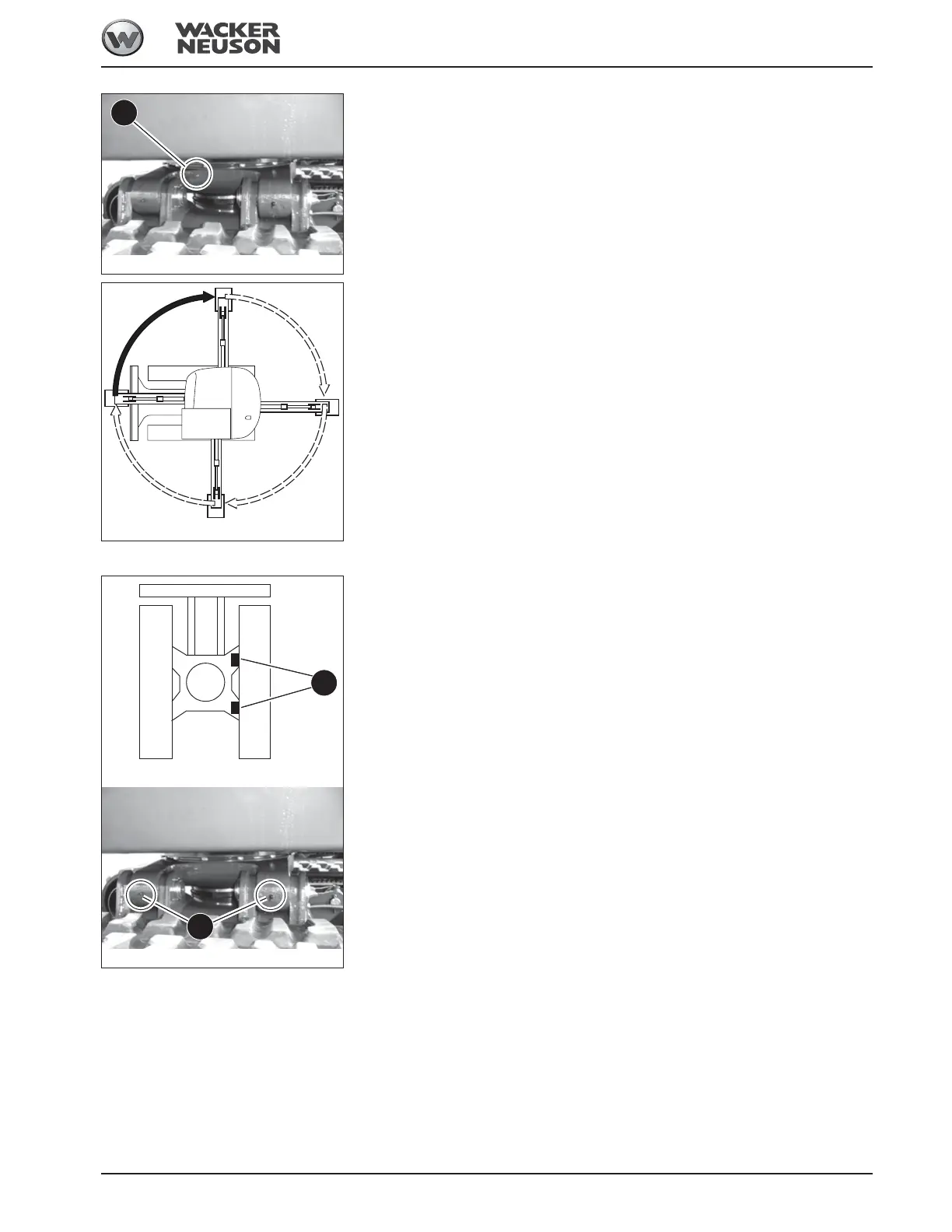

Fig. 299: Teeth of live ring VDS (from AG02695)
D
Fig. 300: Lubricating the teeth of the live ring VDS
Fig. 301: VDS lubrication points
E
E
