Operation
Setting down an attachment
1 Move the attachment inward completely and position it at 5 – 10 cm (2 – 4 in)
above the ground.
2 Press switch D to position 1.
➥ The quickhitch is enabled and the buzzer sounds.
3 Press and hold the foot-operated push button E and pull the stabilizer-blade lever
backward at the same time.
➥ The quickhitch opens.
➥ Check pin F must be fully extended.
4 Retract the bucket cylinder.
➥ The attachment is lowered to the ground.

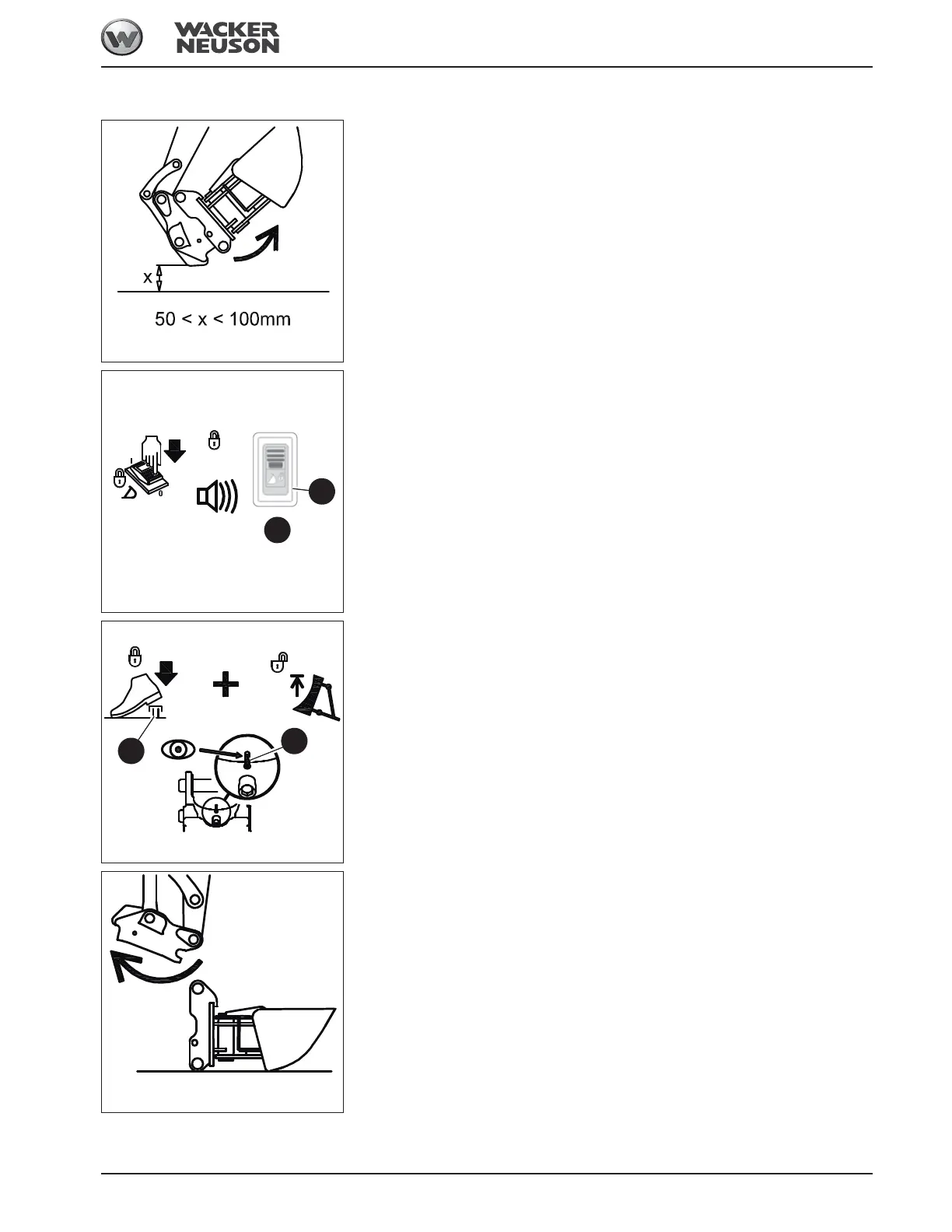

Fig. 220:
Fig. 221:
D
1
Fig. 222:
E
F
Fig. 223:
