OM 25-3503 us – Edition 4.1 * 2503_3503b340.fm 3-93
Operation

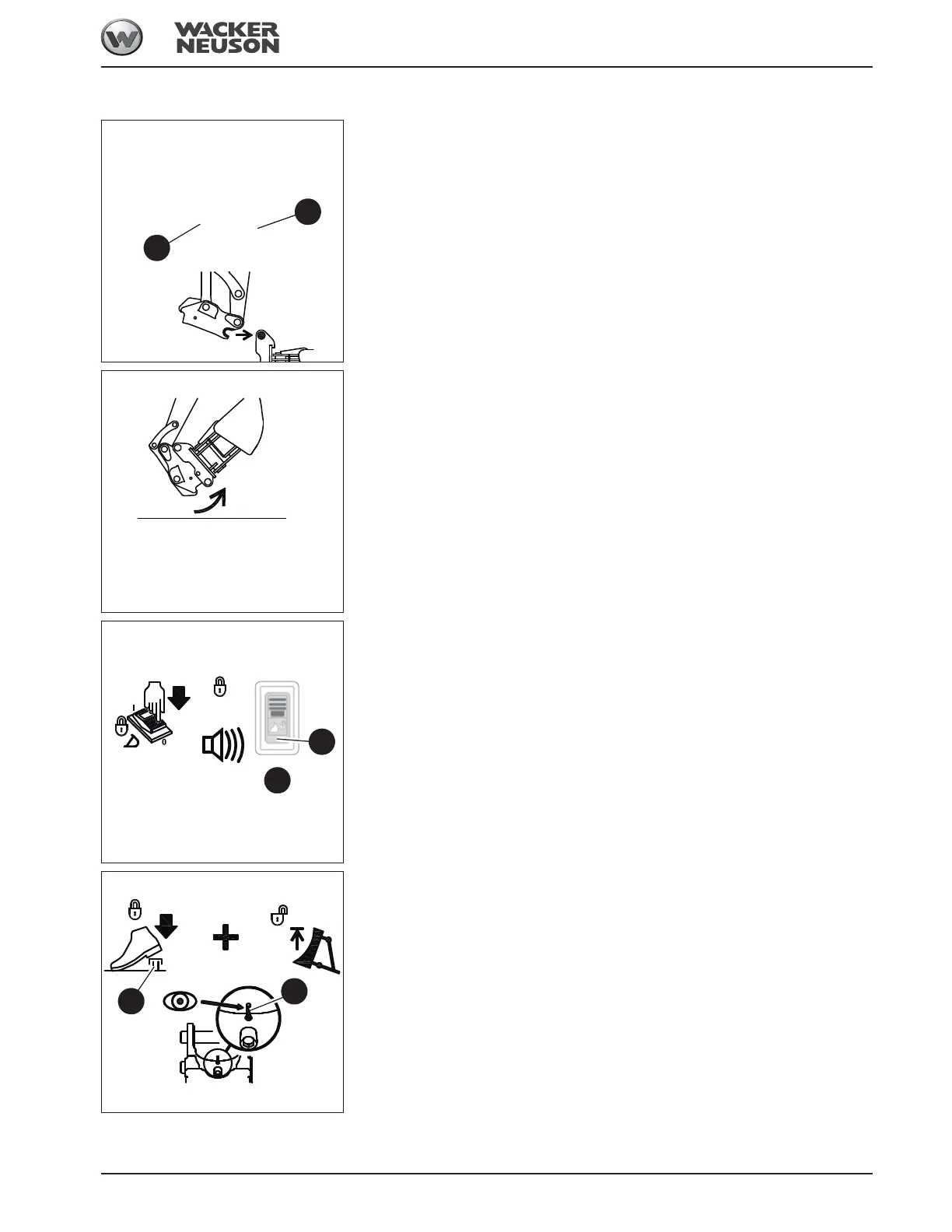

Picking up an attachment
1 Hitch claws A (on the side of the machine) into pins B of the attachment mount.
2 Extend the bucket cylinder so that pin C of the attachment touches the quickhitch.
3 Move the attachment inward completely.
4 Unlock switch D and press it to position 1.
➥ The quickhitch is enabled and the buzzer sounds.
5 Press and hold the foot-operated push button E and pull the stabilizer-blade lever
backward at the same time.
➥ The quickhitch opens.
➥ Check pin F must be fully extended.
➥ The attachment engages.
Fig. 214:
C
A
B
Fig. 215:
Fig. 216:
D
1
Fig. 217:
E
F
