3.15 Special instructions for machine travel on public roads
The machine is subject to the:
•Applicable legal regulations of your country
Also observe the applicable regulations for accident prevention of your country.
3.16 Starting machine travel
Information!
The machine will not move off unless the control lever on the left is lowered.
After starting the engine:
☞ The alternator charge indicator light goes out
☞ Press the accelerator pedal slowly
➥ Machine travel starts
3.17 Drive levers
Accident hazard due to incorrectly rotated upper carriage!
If rotated incorrectly, the upper carriage blocks the visibility of the travel path.
☞ Before starting machine travel on a construction site, align the upper car-
riage so that the operator has an unrestricted view of the travel path.
Accident hazard! The machine moves in the opposite direc-
tion if the upper carriage is rotated by 180°!
Causes serious injury or death
• Slowly and carefully actuate the drive levers/pedals.
The stabilizer blade side is the front side.
Raise the bucket and the stabilizer blade.
The machine can be moved either with the drive levers or with the pedals. Lock the upper
carriage when traveling over longer distances.

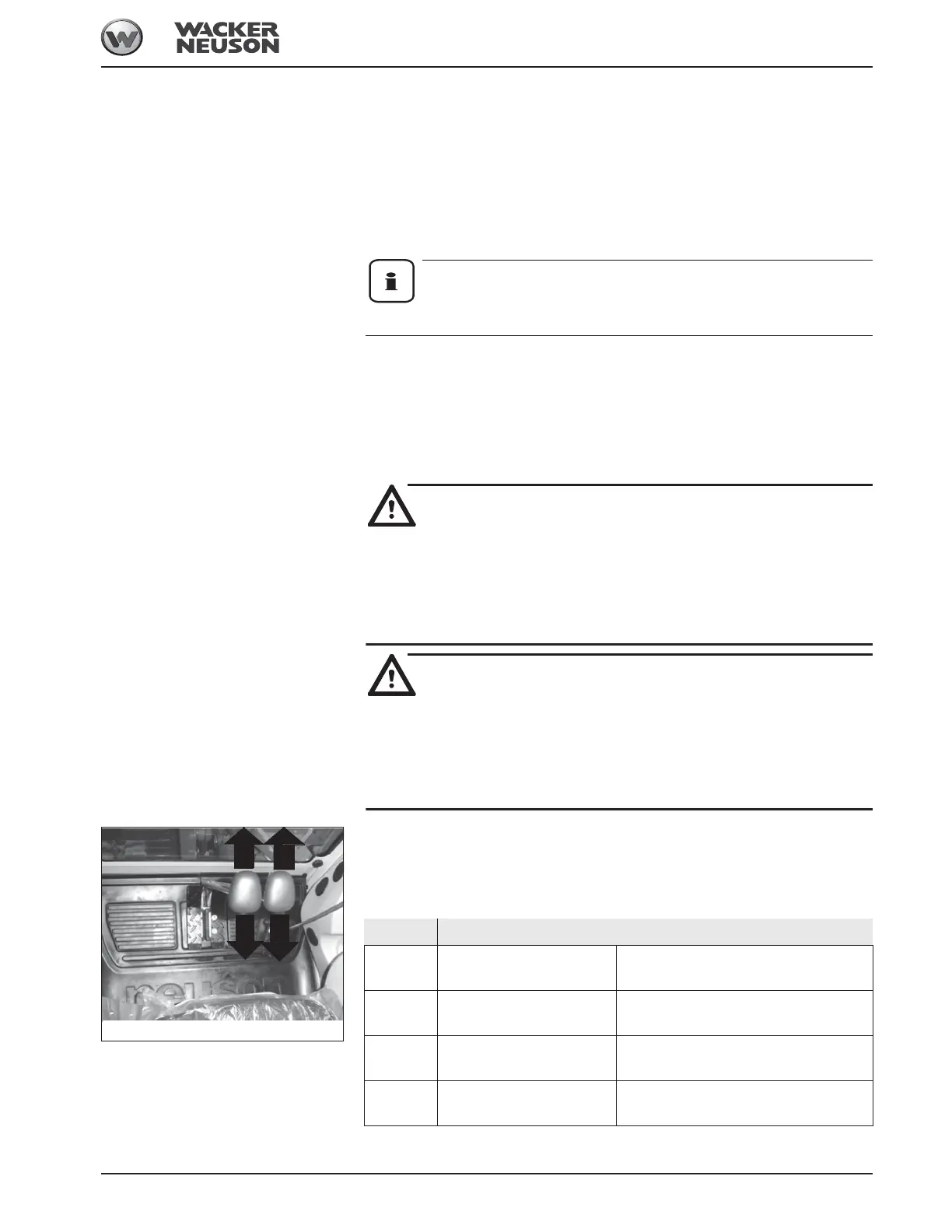

Fig. 95: Drive lever/accelerator pedal
1
2
3
4
Position Function
1
2
Push forward
Push forward
Track excavator moves forward
3
4
Pull backward
Pull backward
Track excavator moves backward
3
2
Pull backward
Push forward
Track excavator turns to the left
1
4
Push forward
Pull backward
Track excavator turns to the right
