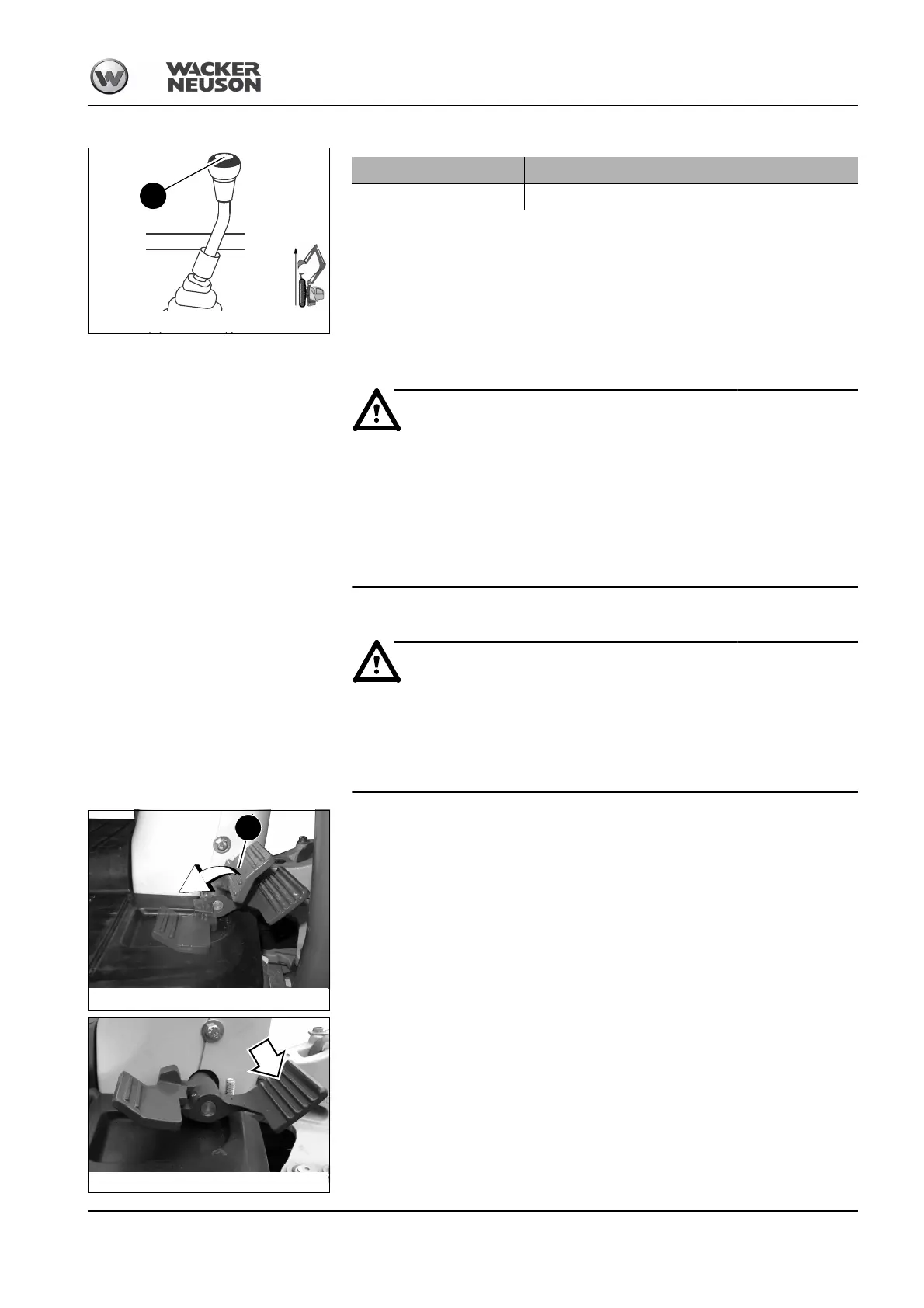

3.15 Boom swivel controls
Injury hazard when operating the boom swivel mechanism!
Can cause serious injury or death.
• The boom swivel function cannot be locked.
• Press the pedal carefully, otherwise the boom is actuated earlier than required.
• In order to minimize the risk of unintentional operation, flip the pedal for-
ward after swiveling the boom.
Boom swivel controls (up to serial no. AI00975)
Injury hazard when operating the boom swivel mechanism!
Can cause serious injury or death.
• In order to minimize the risk of unintentional operation, flip the pedal for-
ward after swiveling the boom.
☞Unfold the right-hand pedal 7
➥The boom can be swiveled
Swiveling the boom to the left:
☞Press the front half of the right-hand pedal
➥Boom swivels to the left
Fig. 112: Functions of right-hand control lever
J
Button Function
J
➥Horn
Fig. 113: Swivel controls
7
Fig. 114: Actuating the swiveling mechanism
