Operation
Engine cover
Injury hazard due to rotating parts!
Can cause serious injury or death.
• Open the engine cover only at engine standstill!
• Ensure that no one is injured by the open engine cover.
• Raise the lock lever
• Remove the starting key
Burn hazard due to hot engine parts!
Can cause serious injury or death.
• Stop the engine before performing work in the engine compartment!
• Raise the lock lever
• Remove the starting key
• Let the engine cool down.
Close and lock the engine cover after finishing work in the engine compartment.
Opening:
☞Press lock 3
☞Pull the engine cover upward
Closing:
☞Firmly press down the engine cover until lock 3 engages with an audible click
Locking and unlocking:
Close the engine cover with the starting key of the preheating start switch.
☞Turn the starting key in lock 3 to the left (L)
➥Engine cover locked
☞Turn the starting key in lock 3 to the right (R)
➥Engine cover unlocked

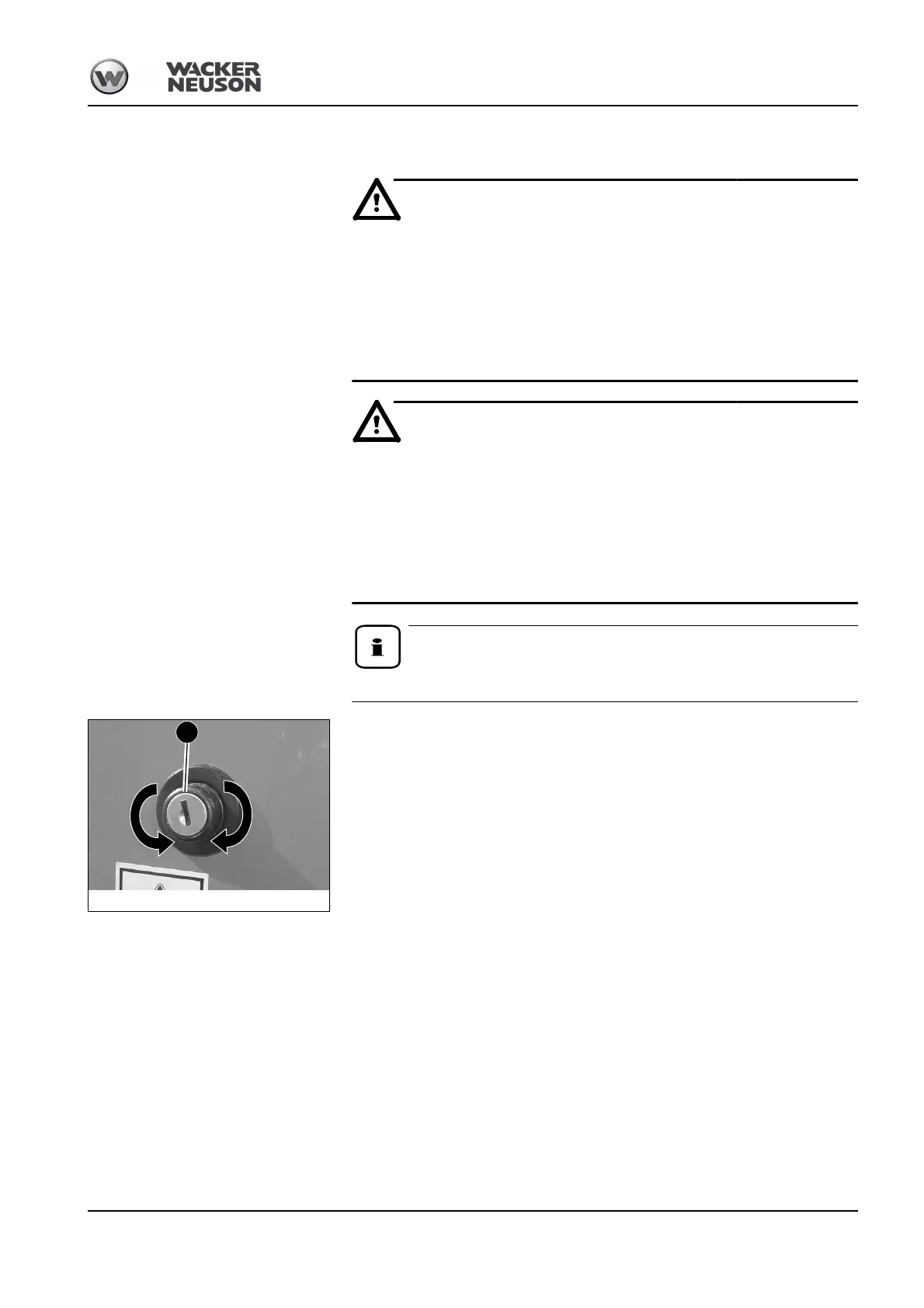

Fig. 96: Engine cover lock
L
R
3
L
R
