Operation
Special instructions for traveling on public roads
Traveling on public roads is prohibited.
Travel position
• Position the machine as shown.
• Position the boom at the center and raise it about 20 to 30 cm (8 – 12 in) off the ground.
During machine travel, raise the stabilizer blade sufficiently high off the ground
to avoid ground contact on rough terrain.
Starting machine travel
After starting the engine:
☞The alternator charge indicator light goes out
☞Slowly actuate the travel lever
➥Machine moves off
Operating temperature range
The following operating conditions must be fulfilled in order to ensure optimal output and a
long service life of the machine.
Do not operate the machine at ambient temperatures above +38 °C (+100 °F) or below
−15 °C (−5 °F).
Travel levers
Accident hazard! The machine moves in the opposite direc-
tion if the upper carriage is rotated by 180°!
Can cause serious injury or death.
• Slowly and carefully actuate the travel levers/pedals
The stabilizer blade side is the front side.
Raise the attachment and the stabilizer blade.

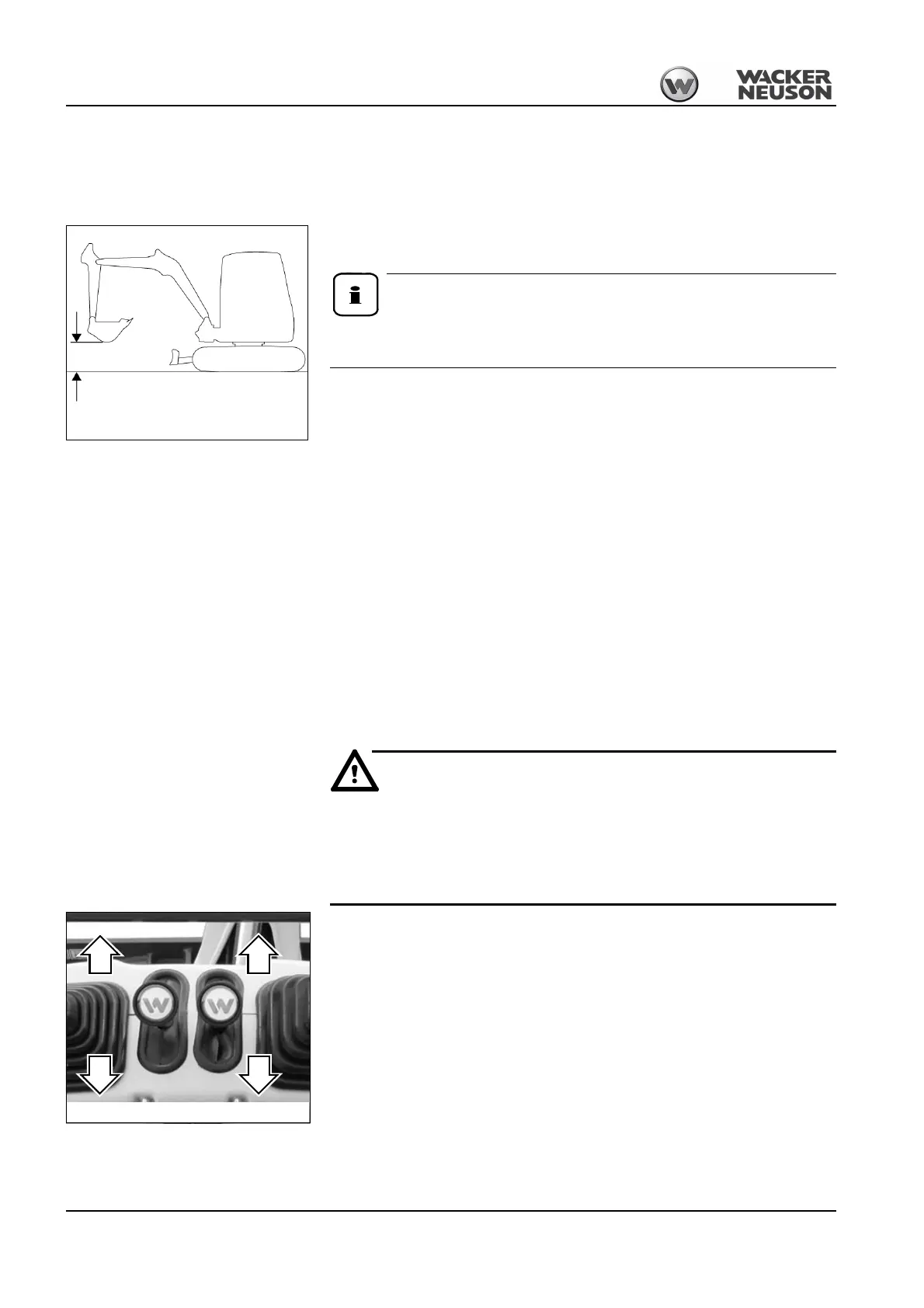

Fig. 55: Travel position
20 to 30 cm
(8 – 12 in)
Fig. 56: Travel levers
1 2
3
4
