Wacker Neuson 803 User Manual

6-10 OM 803 us – Edition 3.7 * * 803b610.fm
Technical data

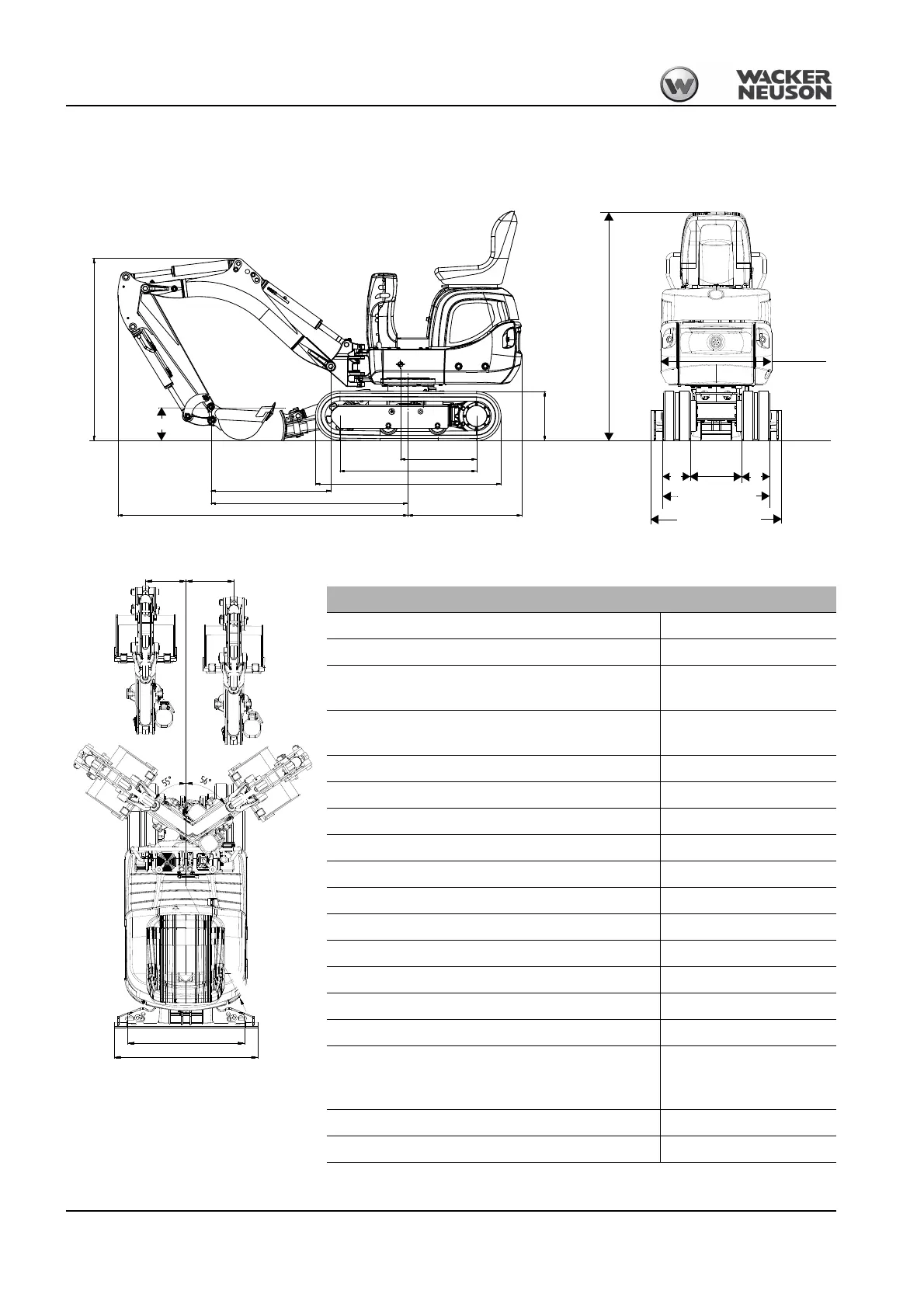

6.12 Dimensions model 803 (up to serial no. AI00966)
787 (31 in)
1294 (51 in)
1220 (48 in)
500 (20 in)
897 (35 in)
747 (29 in)
1906 (75 in)
323 (13 in)
1198 (47 in)
Fig. 228: Machine dimensions (model 803)
198 (8 in)
1507 (59 in)
700/860 (28/34 in)
1
180 (7 in)
340 (14 in)
700/860 (28/34 in)
2
730 (29 in)
1 Retracted/extended telescopic travel gear
2 folded/unfolded stabilizer blade
180 (7 in)
242 (10 in)287 (11 in)
860 (34 in)
700 (28 in)
R747 (29 in)
Main data Model 803
Height (transport position) 1507 mm (59 in)
Upper carriage width 730 mm (29 in)
Width of retracted/extended telescopic travel gear
700/860 mm
(28/34 in)
Width of stabilizer blade folded in/out
700/860 mm
(28/34 in)
Transport length 2747 mm (9')
Max. digging depth 1731 mm (68 in)
Stick length 890 mm (35 in)
Max. vertical digging depth 1349 mm (53 in)
Max. digging height 2863 mm (9'-5'')
Max. tilt-out height 2035 mm (80 in)
Max. digging radius 3074 mm (10'-1'')
Max. reach at ground level 3028 mm (9'-11")
Max. breakout force at bucket tooth 899 daN (2021 daN)
Max. tearout force 451 daN (1014 daN)
Min. tail end slewing radius 747 mm (29 in)
Max. tail end lateral projection of upper carriage, 90° rotation
With retracted/extended telescopic travel gear
With stabilizer blade folded in/out
397/317 mm (16/12 in)
397/317 mm (16/12 in)
Max. boom displacement to bucket center (right side) 287 mm (11 in)
Max. boom displacement to bucket center (left side) 242 mm (10 in)
