Operation
Auxiliary hydraulics (from serial no. AI00976)
Injury hazard due to auxiliary hydraulics operation!
Can cause serious injury or death.
• The pedal is secured with a torsion spring. The pedal flips forward when it is
released, but is not locked.
☞Unfold the left-hand pedal 10
☞Keep the left-hand pedal in position but do not press it
Actuating the auxiliary hydraulics:
☞Press the left-hand pedal
➥Oil flows through the auxiliary hydraulics line

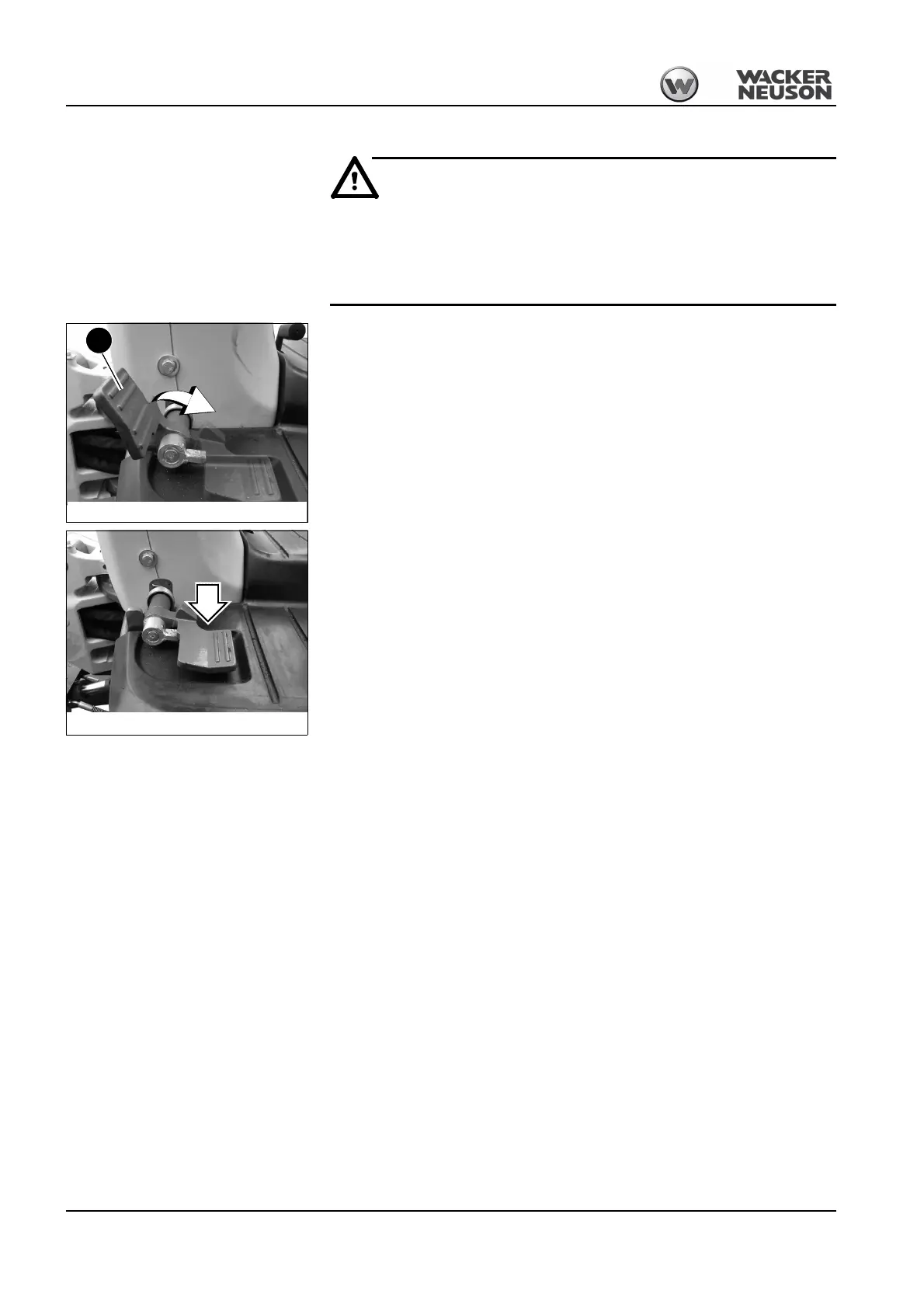

Fig. 122: Auxiliary hydraulics
10
Fig. 123: Actuating the auxiliary hydraulics
