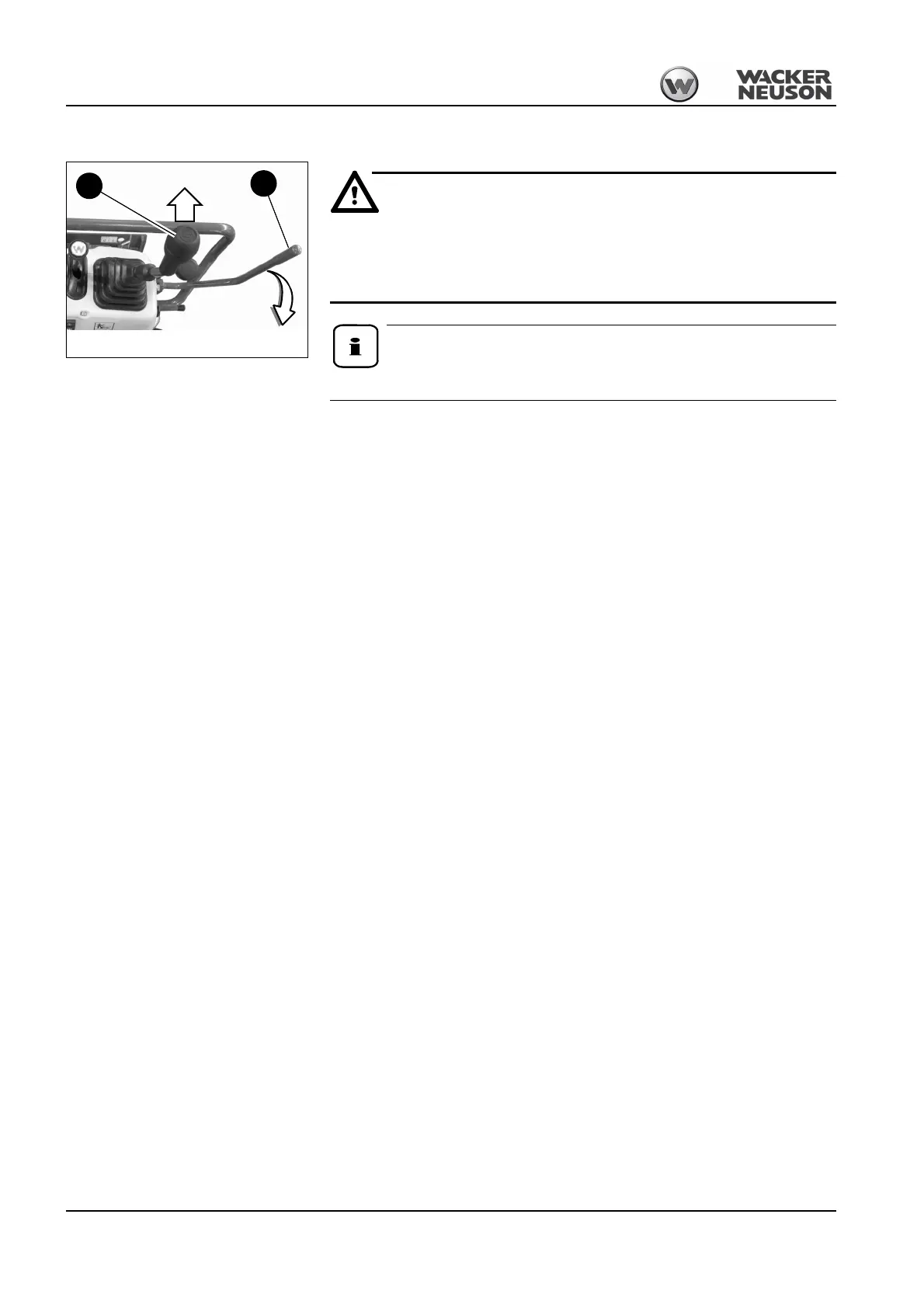

3-60
OM 803 us – Edition 3.7 * * 803b340.fm
Operation
Emergency lowering
W
a
rning!
W
A
RNING
Crushing hazard dur
ing boom lowering!
Can cause serious injury or death.
•
Ensure that no one is in the danger zone.
Information!
Lower the boom immediately after stopping the engine.
Observe the following during emergency lowering:
1
Lower lock lever
A
.
2
Push the right-hand control lever
B
forward until the boom is fully lowered to the ground.
3
Return control lever
B
to neutral.
Fig. 133:
Emergency lowering
A
B
113
115
