Technical data
6.14 Dimensions model 803 without rollbar (from serial no. AI00967)
Main data Model 803
Height 1436 mm (57 in)
Upper carriage width 730 mm (29 in)
Width with retracted/extended telescopic travel gear
700/860 mm (28/34 in)
Width with stabilizer blade folded in/out
700/860 mm (28/34 in)
Transport length 2747 mm (9')
Max. digging depth 1766 mm (70 in)
Stick length 890 mm (35 in)
Max. vertical digging depth 1320 mm (52 in)
Max. digging height 2853 mm (9'-4'')
Max. tilt-out height 2008 mm (79 in)
Max. digging radius 3092 mm (10'-2'')
Max. reach at ground level 3046 mm (10')
Max. breakout force at bucket tooth 899 daN (2021 daN)
Max. tearout force 451 daN (1014 daN)
Min. tail end slewing radius 747 mm (29 in)
Max. tail end lateral projection of upper carriage, 90° rotation
With retracted/extended telescopic travel gear
With stabilizer blade folded in/out
397 mm/317 mm (16/12 in)
397 mm/317 mm (16/12 in)
Max. boom displacement to bucket center (right side) 287 mm (11 in)
Max. boom displacement to bucket center (left side) 242 mm (10 in)
730 (29 in)
R747 (29 in)
R1039(41 in)
180 (7 in)
1436 (57 in)
178
(7 in)
194
(8 in)
1220 (48 in)
3092 (10'-2'')
1320 (52 in)
1766 (70 in)
2008 (79 in)
2853 (9'-4'')

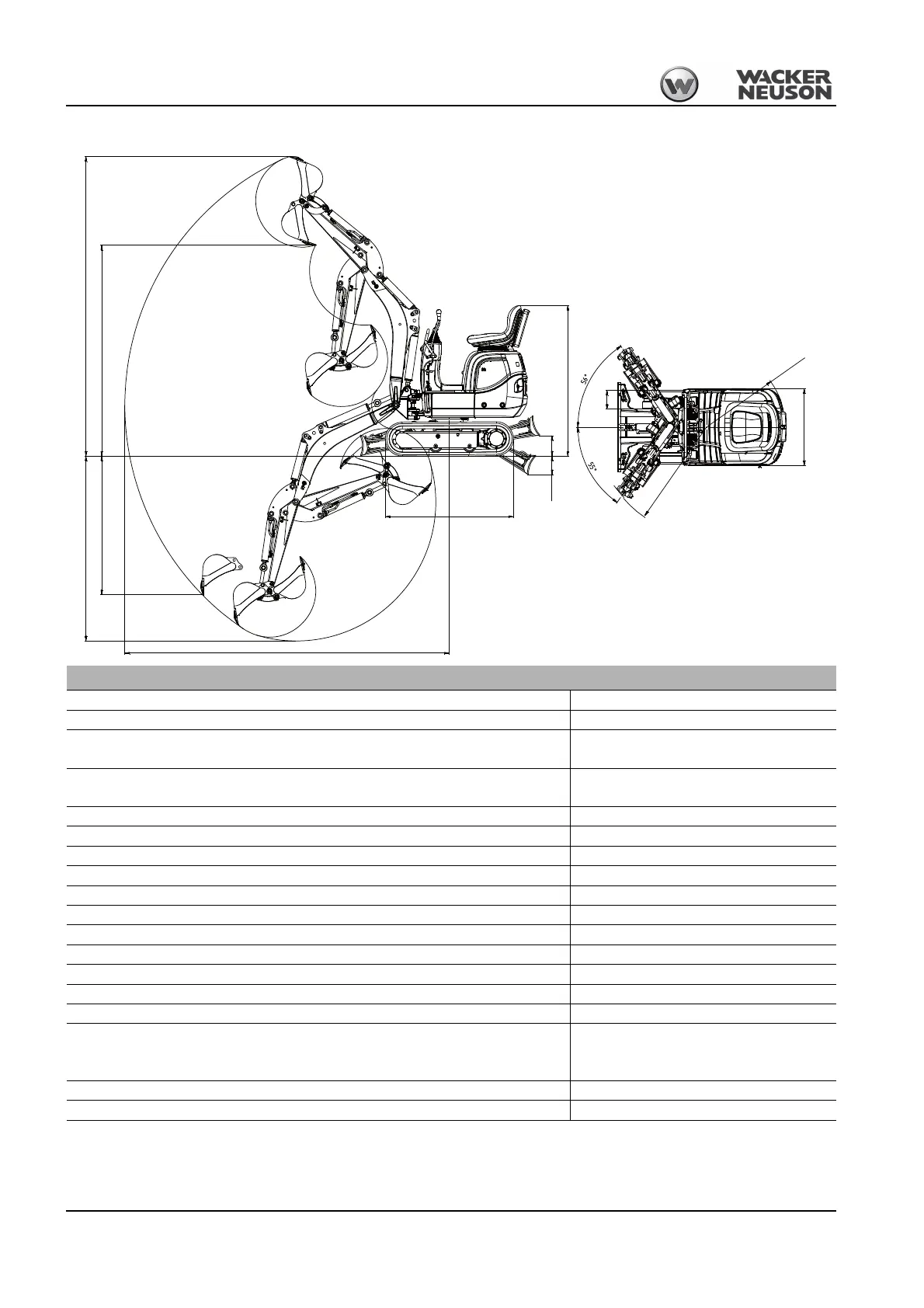

Fig. 230: Machine dimensions (model 803)
