Operation
☞Remove the lock nuts and screws A on either side
☞Slowly and carefully lower the rollbar
Raising the rollbar
☞Stop the machine on firm, level and horizontal ground
☞Stop the engine
☞Raise the lock lever
☞Remove the starting key
In order to raise it, the rollbar must be held by one person on either side.
☞Slowly and carefully raise the rollbar
☞Re-insert the screws on either side A and secure them with new lock nuts A
Replace the lock nuts every time they are loosened.

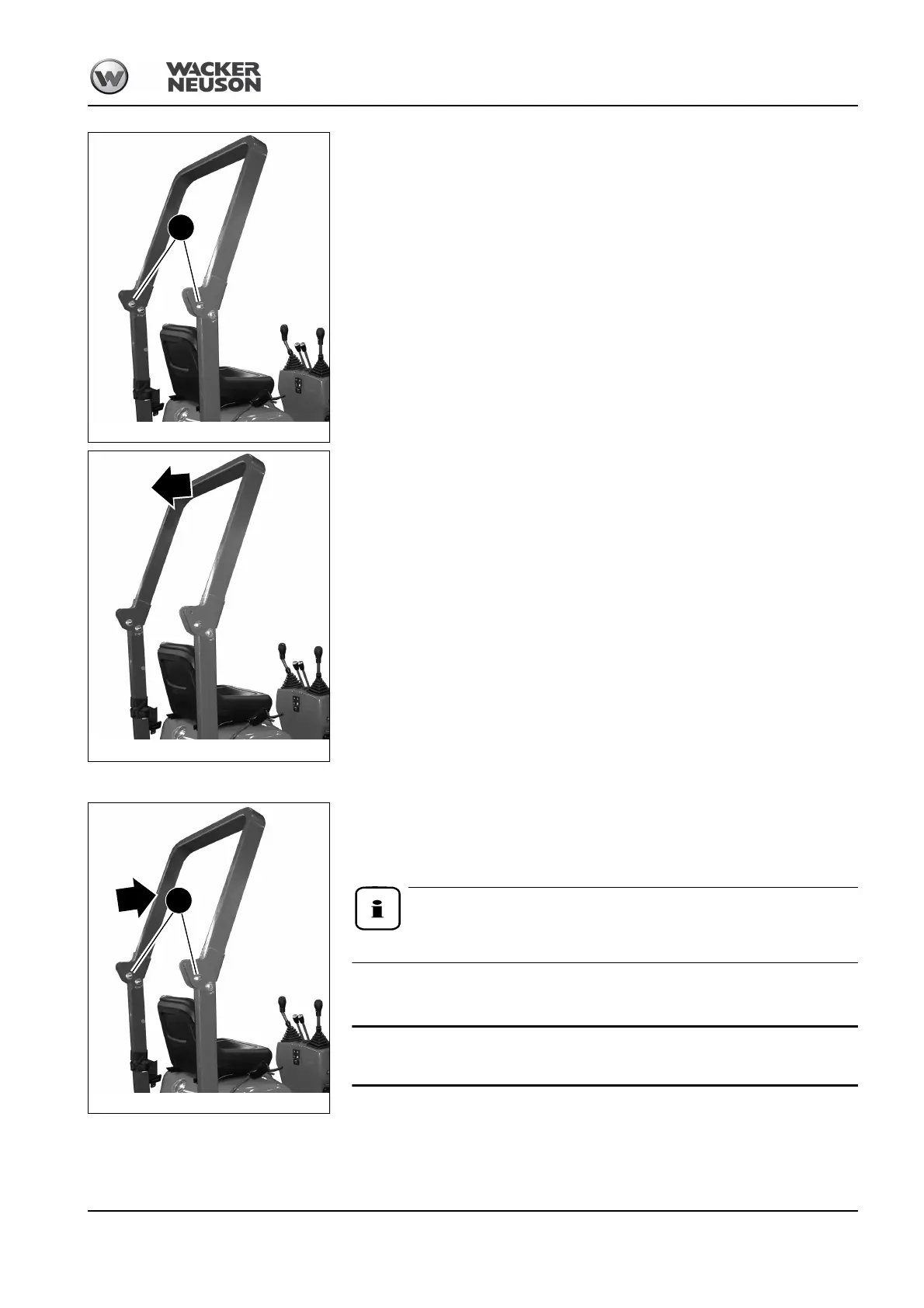

Fig. 82: Lowering the rollbar
A
Fig. 83: Lowering the rollbar
Fig. 84: Raising the rollbar
A
