Functional Verification Procedure Functional Verification
Service Manual 22 Vital Signs Monitor Series 300
NIBP
Characterization Test
1. Attach a neonate hose (part 008-0265-01) to the NIBP fitting on the monitor.

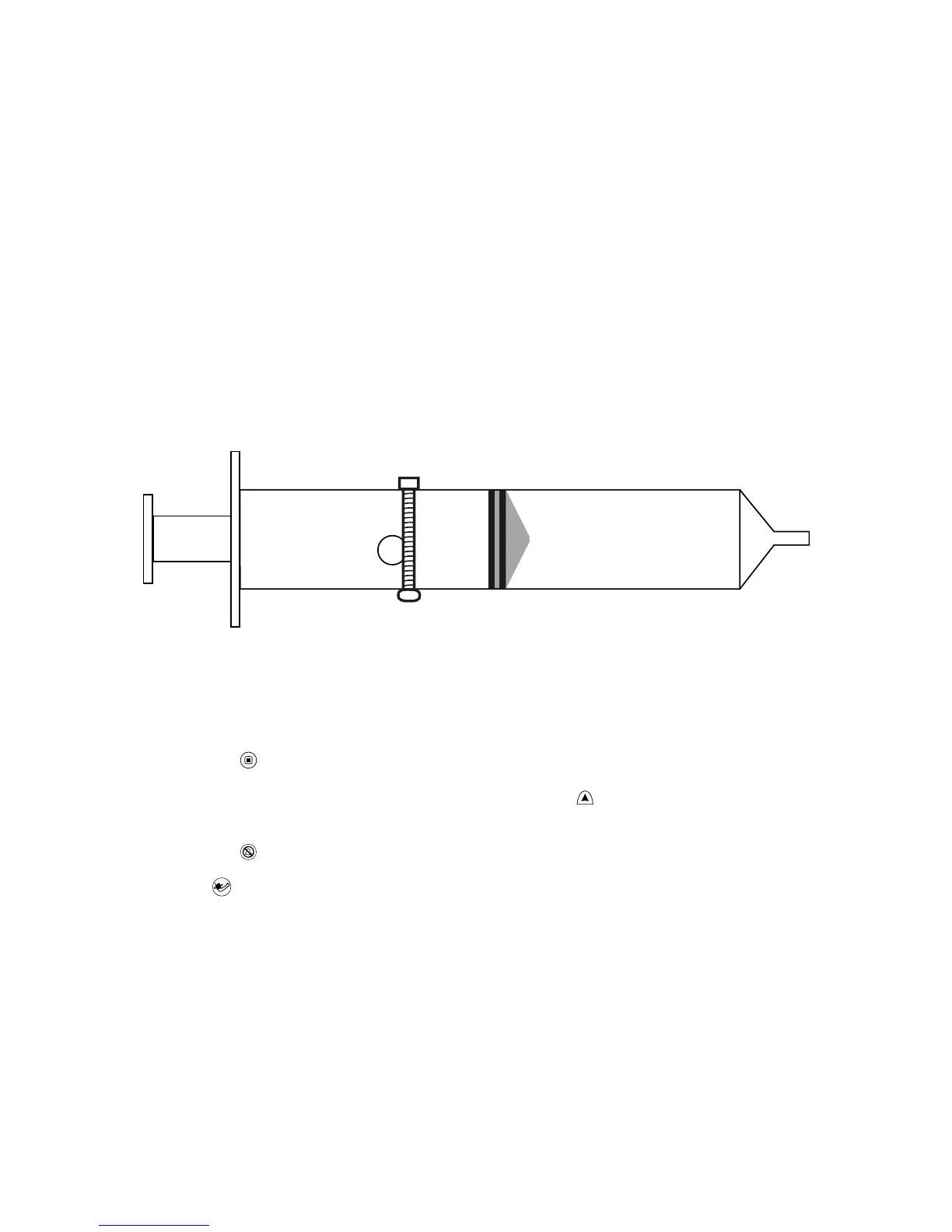

2. Prepare the 60-mL syringe as follows, with reference to the illustration below:
a. Move the syringe plunger to the 35 mL line.
b. Drill a small hole (for example, 9/64”) through the syringe and the plunger shaft, at a
location between the plunger and the top of the syringe.
c. Insert a rod or bolt (for example, a 6-32 screw) through the hole so that the plunger
cannot move, creating a constant volume in the syringe of 35 mL ± 2 mL. Secure the
rod or bolt so that it cannot fall out of the hole.
3. Insert the tip of the syringe into the open end of the neonate hose, and verify that the fit is
tight and secure.
4. Set the monitor patient type to Adult, as follows:
a. Press once.
b. If the monitor is not already in Adult mode, press once or twice until Adult
appears in the message display.
c. Press .
5. Press .
6. Verify that the error code C03 appears in the message display within a few seconds.
--
-- 10
--
-- 20
--
-- 30
--
-- 40
--
-- 50
--
-- 60
ml
