Welch Allyn 53 Service Manual

Disassembly Procedure Remove the LCD Display from the Main Board
Vital Signs Monitor Series 300 53 Service Manual
Remove the LCD Display from the Main Board
Remove the Main Board from the Rear Chassis Assembly

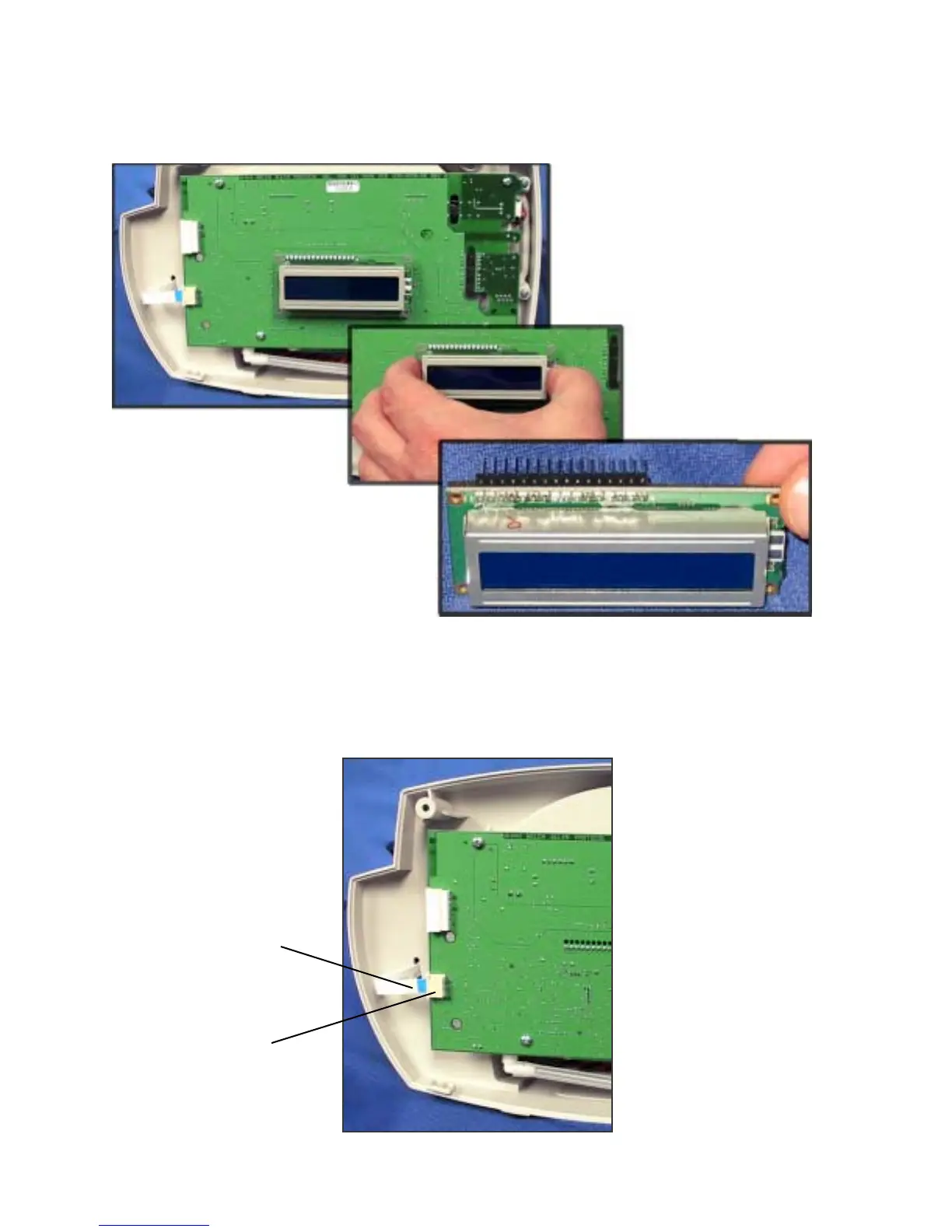

1. Disconnect the temperature module flex cable from J12 on the main board.
Disconnect the LCD display
module from connector J5 on the
main board
Temperature module
flex cable
Main board J12
connector
