Disassemble the Temperature Module Disassembly Procedure
Service Manual 68 Vital Signs Monitor Series 300
Disassemble the Temperature Module
1. Remove the temperature module from the monitor.
a. Remove the two screws (located on the left side, inside the rear chassis) securing the
module to the slots on the left side of the rear chassis. To prevent the module from
dropping, hold it as you remove the screws.
b. Separate the temperature module from the rear chassis and pull the temperature
cable through the slot in the rear chassis.
Disassembly of the temperature module does NOT require removal of the
main board.

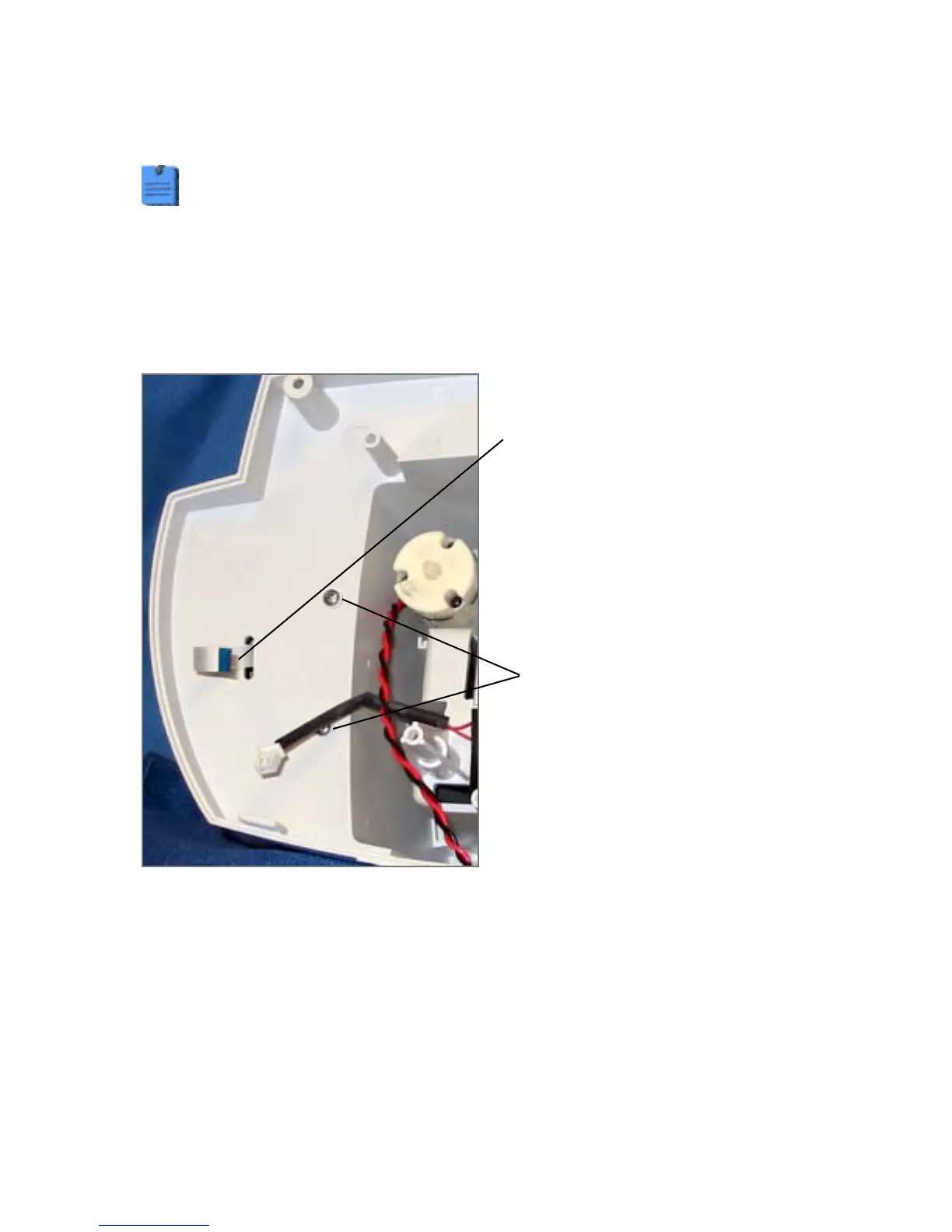

2 screws securing the
temperature module
Temperature cable
