Remove and Disconnect the Battery Disassembly Procedure
Service Manual 46 Vital Signs Monitor Series 300
SpO
2
Board Connectors
NIBP Board Connectors
Temperature Board Connectors
Remove and Disconnect the Battery
1. Remove the four screws securing the battery door.
2. Remove the battery door.
Connector Connects With Connector Connects With
J1 SpO
2
side panel J2 Main board – J7
Connector Connects With Connector Connects With
J2 Main board – J7 J6 Pump
Connector Connects With Connector Connects With
J1 Main board – J12 J5 External Probe

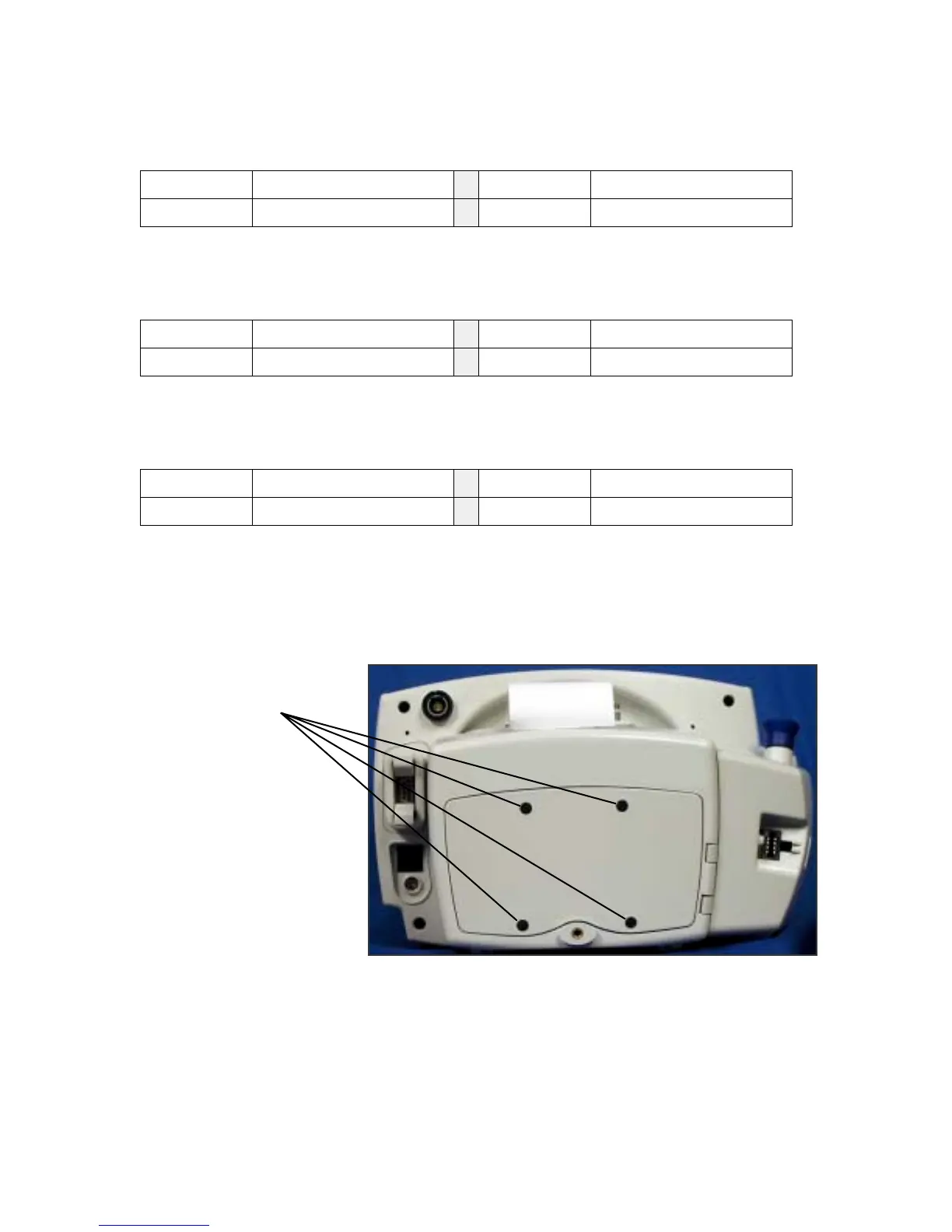

4 screws securing the
battery door
To Next Page
