3-M4
L3130 · L3430 · L3830 · L4630 · L5030, WSM
TRANSMISSION

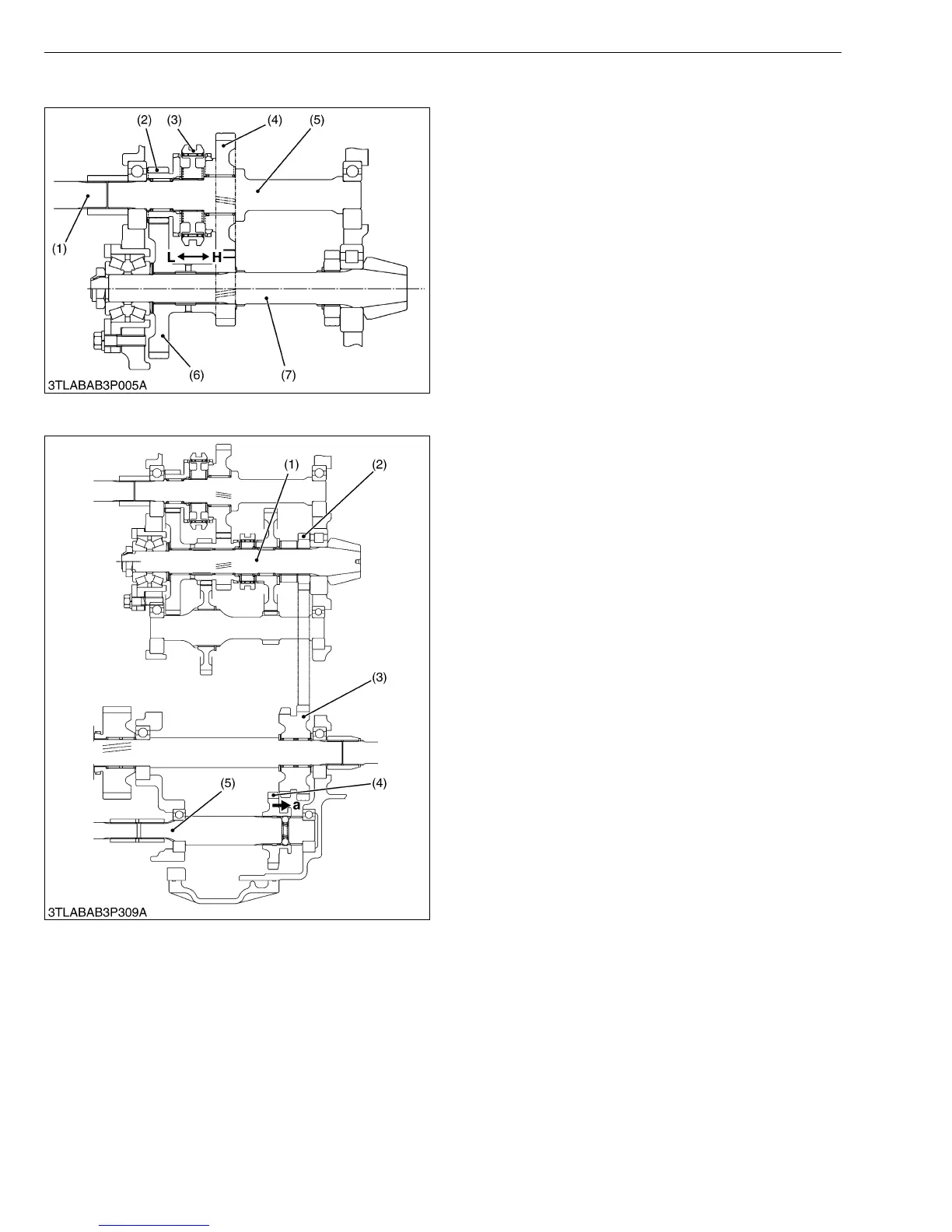

(3) Range Gear Shift Section
The range gear shift section is located in the
differential gear case, and it uses constant mesh.
W1013209
(4) Front Wheel Drive Section
Front wheel drive shift section is located in the
differential gear case. 2 wheel drive or 4 wheel drive is
selected by operating the front wheel drive lever to shift
the shifter gear (4).
W1013518
(1) Shuttle Gear Shaft
(2) Gear for Low
(3) Shifter
(4) Gear for High
(5) Range Gear Shaft
(6) Counter Gear
(7) Spiral Bevel Pinion
L : Low Speed
H : High Speed
(1) Spiral Bevel Pinion
(2) Gear
(3) Front Wheel Drive Gear
(4) Shifter Gear
(5) Front Wheel Drive Shaft
(Connected to Propeller
Shaft)
a : 4 Wheel Drive Position
KiSC issued 02, 2007 A
