8-M10
L3130 · L3430 · L3830 · L4630 · L5030, WSM
HYDRAULIC SYSTEM
5. REAR HYDRAULIC BLOCK
The rear hydraulic block is equipped with cylinder safety valve, lowering speed adjusting valve and check valve,
etc. besides hydraulic outlet port.
The hydraulic outlet port is located top of the rear hydraulic block to take power out from the tractor to operate the
hydraulic cylinders on the implement.

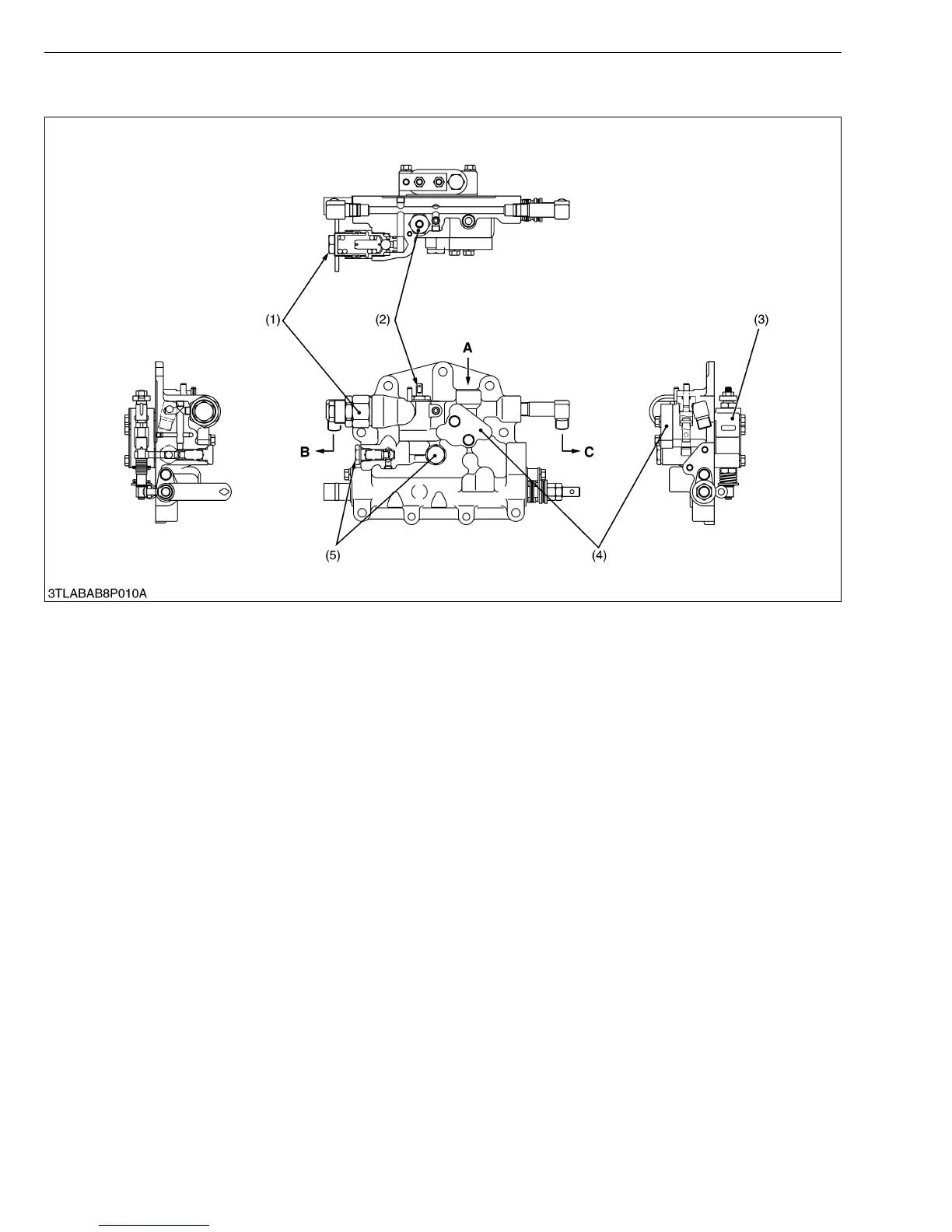

(1) Cylinder Safety Valve
(2) Lowering Speed Adjusting
Valve
(3) Position Control Valve
(4) Cover (Rear Hydraulic Outlet
Port)
(5) Check Valve A : From Hydraulic Pump
B : To or From Hydraulic Cylinder
C : To or From Hydraulic Cylinder
To Next Page
