L3130 · L3430 · L3830 · L4630 · L5030, WSM
TRANSMISSION
(5) Creep Gear Shift Section
The creep speed section is located under the N-C
range gear shift section to reduce a travelling speed. It
is shifted by the creep shift lever to shift the shifter (3).

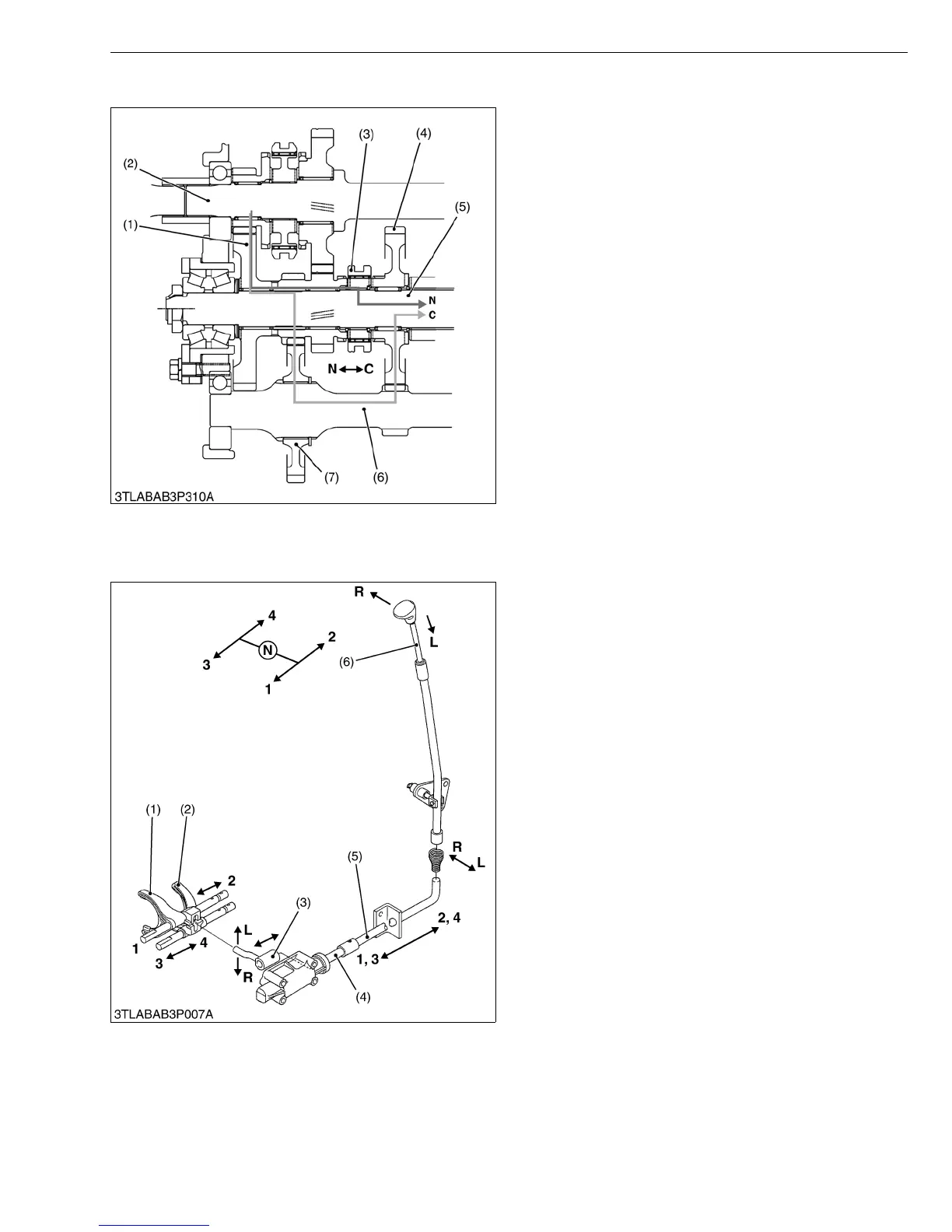

The power train of creep speed is as shown in figure.
W1021456
[3] SHIFT LINKAGE MECHANISM
(1) Main Gear Shift Lever
The links are connected from the shift lever (6) to the
shift forks (1), (2) as shown in the figure. Each speed
from the 1st to 4th can be changed by a single shift lever
(6).
When the shift lever (6) is moved to the left, the shift
arm (3) is engaged with the 1-2 shift fork (1), allowing the
operator to change the 1st or the 2nd speed.
When the shift lever (6) is moved to the right, the shift
arm (3) is engaged with the 3-4 shift fork (2), allowing the
operator to change the 3rd or the 4th speed.
W1013619
(1) Creep Output Gear
(2) Range Gear Shaft
(3) Shifter
(4) Low Speed Counter Gear
(5) Spiral Bevel Pinion Shaft
(6) Creep Gear Shaft
(7) Creep Gear
N : Normal Speed
C : Creep Speed
(1) 1-2 Shift Fork
(2) 3-4 Shift Fork
(3) Shift Arm
(4) Shift Rod 1
(5) Shift Rod 2
(6) Main Gear Shift Lever
R : Right Movement
L : Left Movement
1 : 1st Shift
2 : 2nd Shift
3 : 3rd Shift
4 : 4th Shift
