L3130 · L3430 · L3830 · L4630 · L5030, WSM
CABIN
[5] OTHERS
(1) Disassembling and Assembling
(A) Cabin Windshields
Preparation
1. Prepare the followings.
- Cutter knife 1 piece
- Scraper 1 piece
- Gun for coating 1 piece
- Sika Tack-Ultrafast or equivalent
- Gummed tape
- Sika-Activator
- Sika primer 209
- Shin Etsu silicon KE45
• Sika product are made by Sika Corporation.
• Shin Etsu silicon KE45 is made by Shin Etsu Polymer
Corporation.
• These materials can’t be provided by Kubota Corporation.
• Therefore, please find the local made equivalent materials in
your country and use them when you need.
W1053361
Before Replacing Windshields (1)

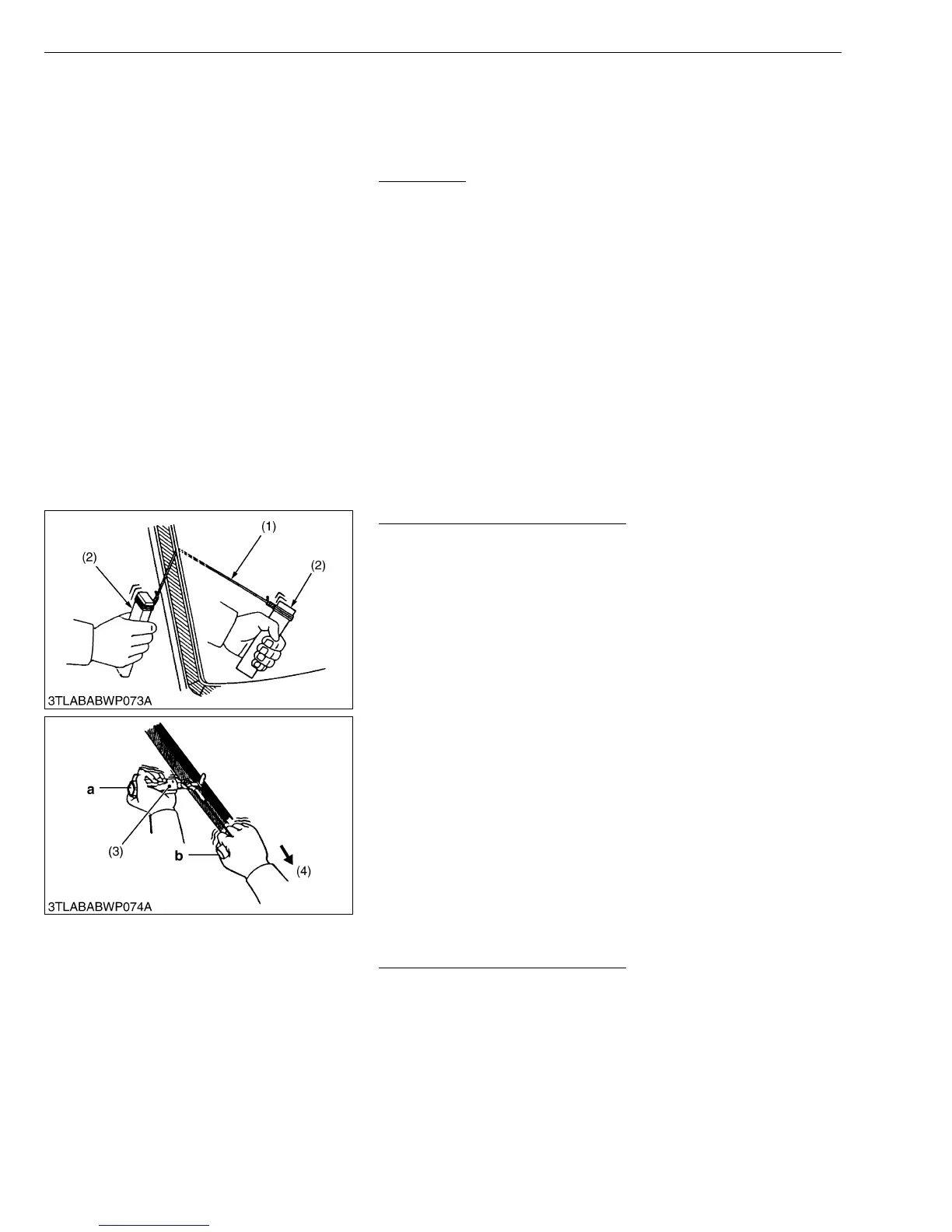

[In case of using piano wire (When glass is clacked)]
1. Thread the piano wire from the inside of cabin. Tie its both ends
to a wooden blocks or the like. (See the left figure.)
2. Pull the piano wire inward/outward alternately to cut the adhered
part.
• Do not let the piano wire make sliding contact with the edge
of glass plate forcibly.
[In case of using cutter knife (When glass is totally crushed
finely)]
1. Insert the knife (3) into the adhered part.
2. Keep the edge of knife blade square to the glass edge at the part
(a). Slide the knife blade along the glass surface and the edge.
Pull the part (b) in the direction parallel to the glass edge to cut
them off.
• Find a wider gap between the glass and body.
• Take care of handling the cutter knife not to damage your
hand.
W1035600
Before Replacing Windshields (2)
1. When the Sika Tack-Ultrafast or equivalent attached to the cabin
frame and the glass are reused, remove the bond clearly.
2. Clean the frame surface with Sika-Activator.
• Remove the bond completely.
W1035852
(1) Piano Wire
(2) Wood Peace
(3) Cutter Knife
(4) Pulling
