8-M3
L3130 · L3430 · L3830 · L4630 · L5030, WSM
HYDRAULIC SYSTEM

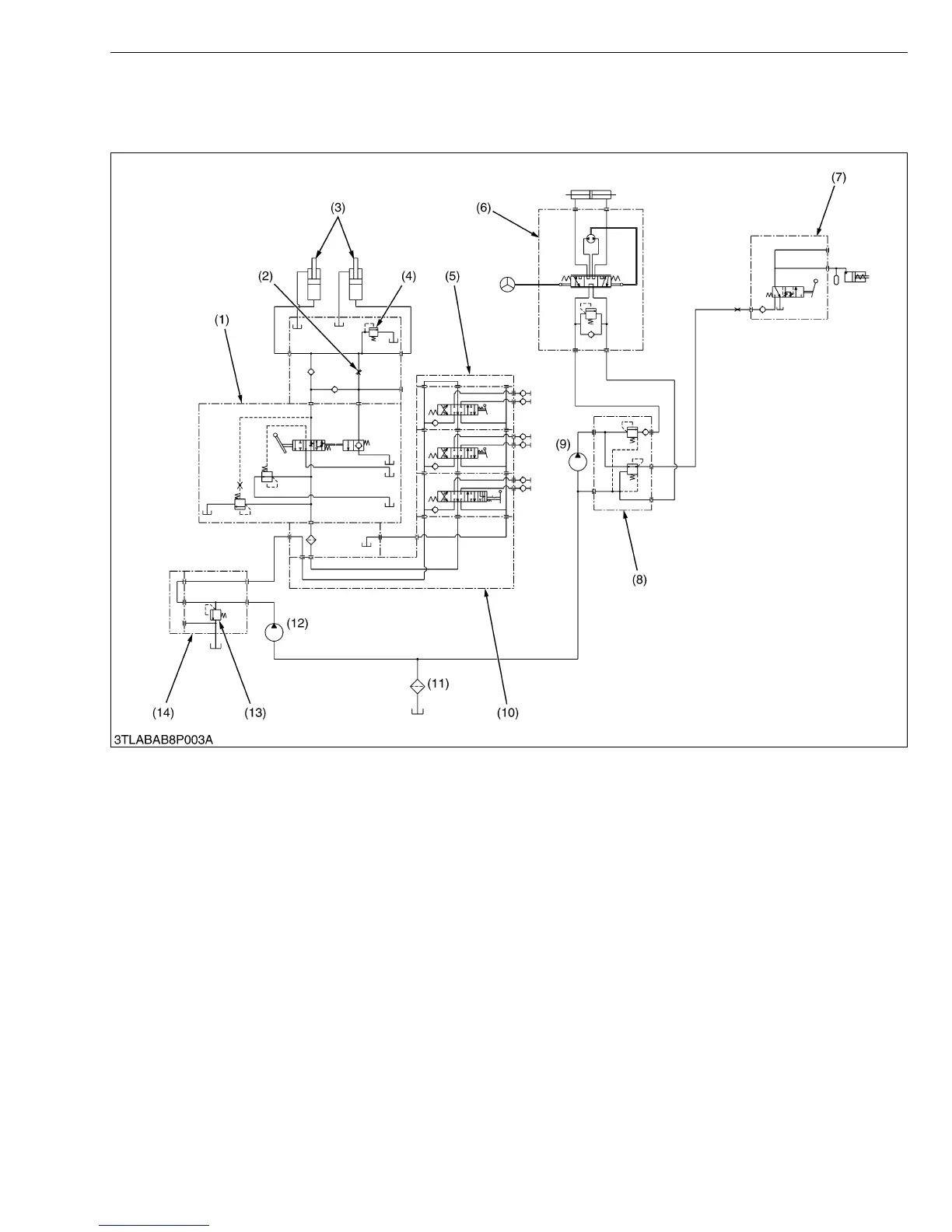

2. HYDRAULIC CIRCUIT
[1] MANUAL TRANSMISSION
(1) Position Control Valve
(2) Lowering Speed Adjusting
Valve
(3) Hydraulic Cylinder
(4) Cylinder Safety Valve
(5) Auxiliary Control Valve
(6) Power Steering Controller
(Refer to STEERING Section)
(7) PTO Clutch Valve (Refer to
TRANSMISSION Section)
(8) Regulator Valve (Refer to
TRANSMISSION Section)
(9) Hydraulic Pump 2
(10) Rear Hydraulic Block
(11) Oil Filter
(12) Hydraulic Pump 1
(13) Relief Valve
(14) Front Hydraulic Block
To Next Page
