8-S14
L3130 · L3430 · L3830 · L4630 · L5030, WSM
HYDRAULIC SYSTEM

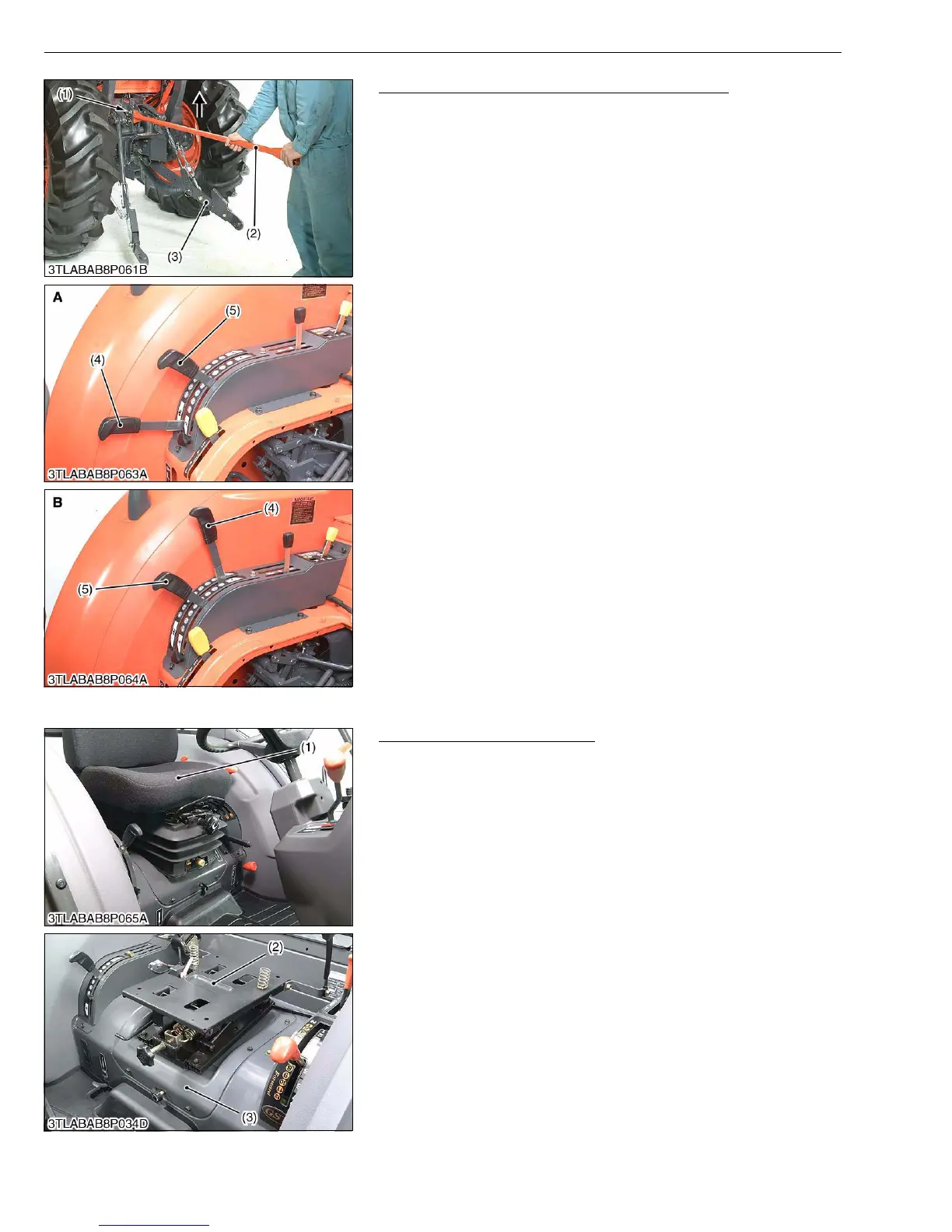

Checking Draft Control Sensitivity (If equipped)
1. Attach the test bar (2) to the top link bracket.
2. Start the engine, set at maximum speed.
3. Set the draft control lever (5) to the lowest position. (Refer to
figure A.)
4. Set the position control lever (4) between lever guide 4 and 5.
(Refer to figure A.)
5. Lift the test bar (2) upward until the top link bracket (1) comes in
contact with the stopper.
6. Confirm the lower link does not rise.
7. Set the draft control lever (4) to 7 position of the lever guide.
(Refer to figure B.)
8. Lift the test bar (2).
9. Confirm the lower links (3) must rise before the top link bracket
(1) contact the stopper.
10.If the specified play is not obtained, readjust the feedback rod.
(Refer “Adjusting Draft Control Position Section”.)
W1018582
(2) Disassembling and Assembling
Seat, Seat Bracket and Cover
1. Remover the seat (1).
2. Remove the seat bracket (2) together with cover (3).
W1015907
(1) Top Link Bracket
(2) Test Bar
(3) Lower Link
(4) Draft Control Lever
(5) Position Control Lever
(1) Seat
(2) Seat Bracket
(3) Cover
To Next Page
