9-S33
L3130 · L3430 · L3830 · L4630 · L5030, WSM
ELECTRICAL SYSTEM

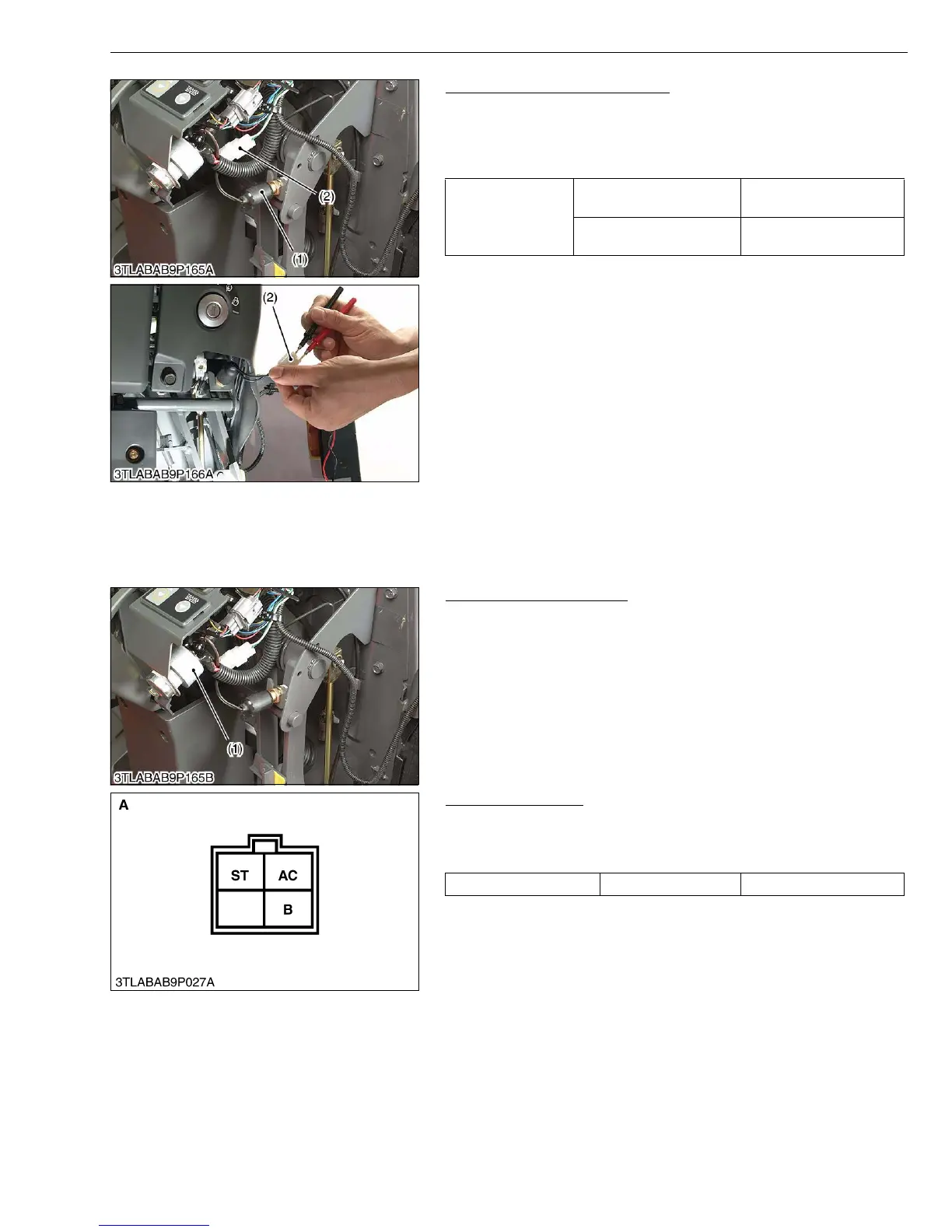

Brake Lamp Switch Continuity
1. Disconnect the connector, and measure the resistance with an
ohmmeter between connector terminal.
2. If the measurement differs from the table below, the brake switch
is faulty.
W1024163
[3] STARTING SYSTEM
(1) Checking
(A) Main Switch (ROPS Type)
Remove the Main Switch
1. Remove the combination switch.
2. Remove the panel cover.
3. Disconnect the main switch connector.
4. Perform the following checking.
W1013848
Connector Voltage
1. Measure the voltage between the terminal B and chassis.
2. If the voltage differs from the battery voltage (11 to 14 V), the
wiring harness is faulty.
W1014366
Resistance
between connecter
terminals
When brake pedal is
released
Infinity
When brake pedal is
depressed
0 Ω
(1) Brake Lamp Switch (2) Brake Lamp Switch Connector
(1) Main Switch
Voltage Terminal B – Chassis Approx. battery voltage
A : Wire Harness Side Connector 4C
To Next Page
