9-M18
L3130 · L3430 · L3830 · L4630 · L5030, WSM
ELECTRICAL SYSTEM
[3] CONTROL SYSTEM
(1) Basic Control System
(A) Normal Display
The normal display is a message indicated in the
liquid crystal display (LCD) while the main switch is
turned ON or the engine is starting.
The fuel gauge and coolant temperature gauge are
always displayed on a right edge of LCD, and the
position of gear shifting is displayed on a left edge for
GST and HST model.
By pushing the display mode switch (3), it is switched
to five kinds of displays shown in the table below.
W1017233
NOTE■
• Trip meter can be reset to 0.0 h by pushing and holding the display mode switch for about two seconds
with trip meter displayed.
*1 : Let’s suppose that the PTO gear shift lever is at the neutral position. When you turn ON the PTO clutch
control lever, the PTO shaft stays off but the meter displays the rpm at the L position. This is normal, not
a machine failure.
W1015278

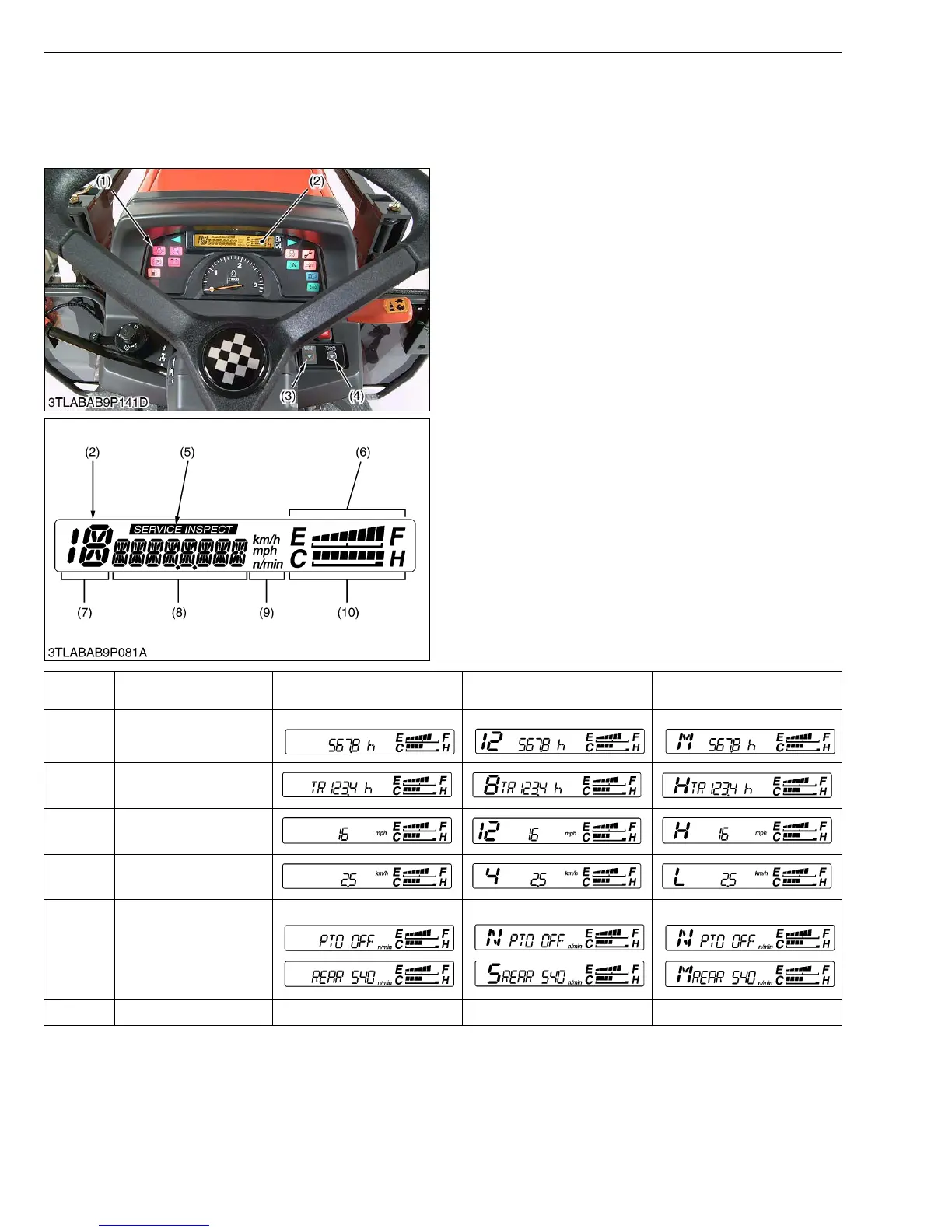

(1) IntelliPanel (Electronic
Instrument Panel)
(2) Liquid Crystal Display (LCD)
(3) Display Mode Switch
(4) Travel Speed Switch
(5) Periodic Service Required
Readout
(6) Fuel Gauge
(7) Selected Speed Indication
(HST and GST Model Only)
(8) Message Display
(9) Unit Indication
(10) Coolant Temperature Gauge
Proce-
dure
Display Item Manual Transmission Model GST Model HST Model
1
Normal Display 1
Hour Meter
(Multiplication hours)
2
Normal Display 2
Trip Meter (Unit hours)
3
Normal Display 3
Traveling Speed (mph)
4
Normal Display 4
Traveling Speed (km/h)
5
Normal Display 5
PTO Speed
(PTO OFF)
(PTO ON)*1
6 Return to Top
KiSC issued 02, 2007 A
