STEERING
4. STEERING CONTROLLER
The steering controller mainly consists of a control valve, a metering device and a relief valve with check valve.
The metering device comprises a set of special gear called “Gerotor”.

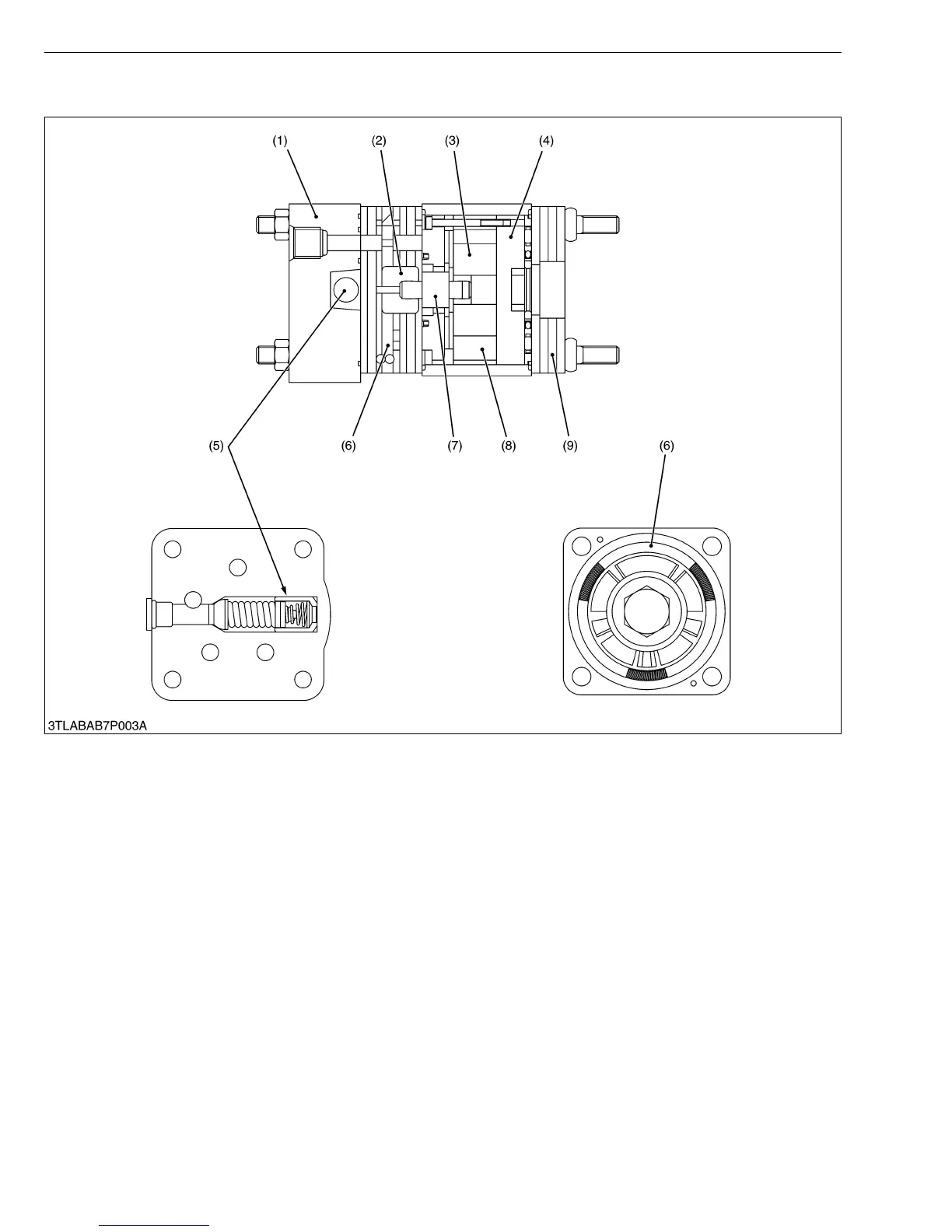

(1) Port Cover
(2) Hex. Drive Assembly
(3) Rotor
(4) Drive Plate
(5) Relief Valve
(6) Valve Plate
(7) Drive Link
(8) Stator
(9) Upper Cover
