3-S55
L3130 · L3430 · L3830 · L4630 · L5030, WSM
TRANSMISSION
(2) Disassembling and Assembling
(A) Clutch Housing

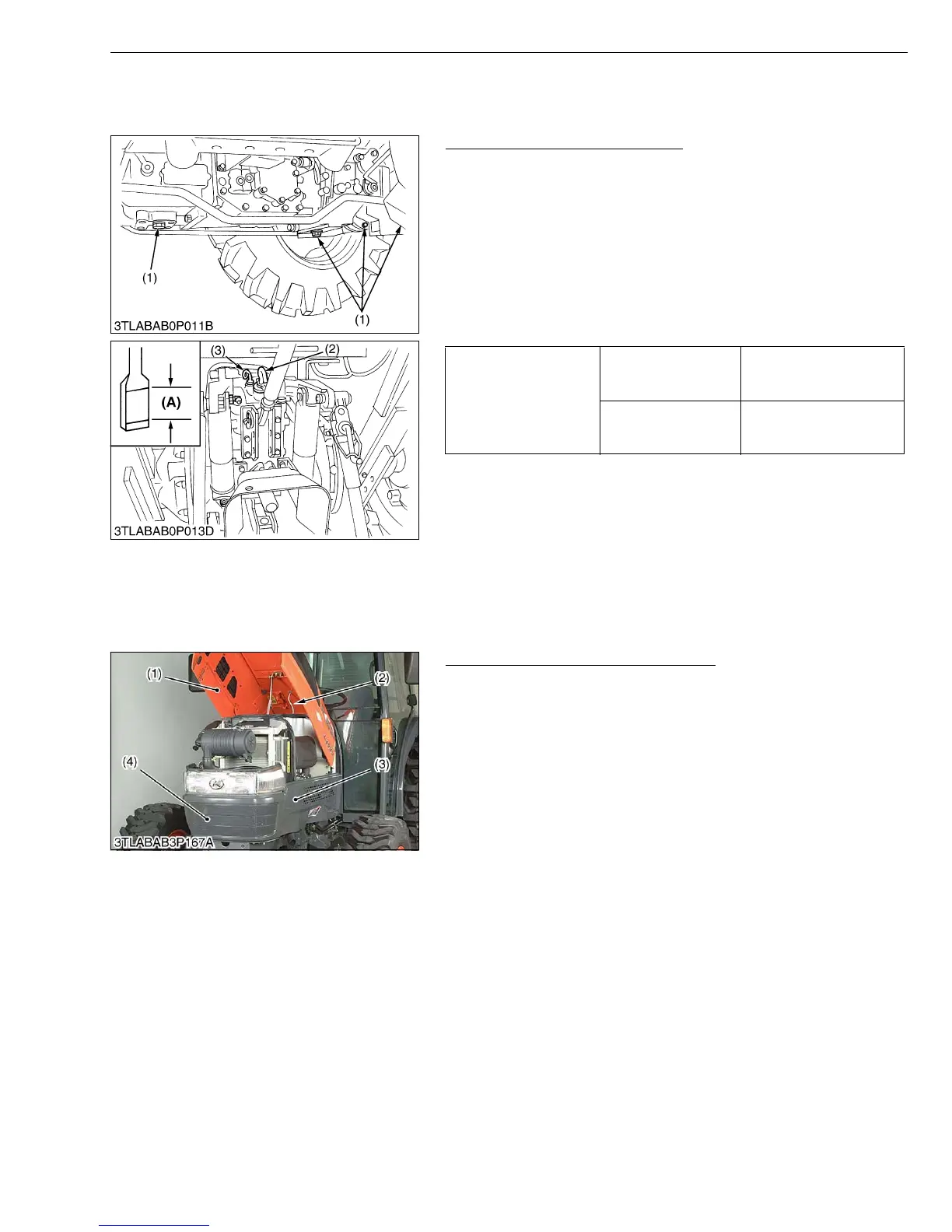

Draining the Transmission Fluid
1. Place oil pans underneath the transmission case.
2. Remove the drain plugs (1).
3. Drain the transmission fluid.
4. Reinstall the drain plugs (1).
(When refilling)
• Fill up from filling port after removing the filling plug (2) until
reaching the upper notch on the dipstick (3).
• After running the engine for few minutes, stop it and check the oil
level again, add the fluid to prescribed level if it is not correct
level.
• Use only KUBOTA SUPER UDT fluid. Use of other oils may
damage the transmission or hydraulic system.
Refer to “LUBRICANTS, FUEL AND COOLANT”. (See page
G-7, 8.)
• Do not mix different brands of fluid together.
W1166268
Battery, Front Grill, Skirt and Bonnet
1. Open the bonnet and disconnect the battery negative cable.
2. Disconnect the head light connector and remove the front grill (4).
3. Remove the left and right side skirts (3).
4. Disconnect window washer hoses (2). (Cabin model only.)
5. Remove the bonnet (1).
• When disconnecting the battery cords, disconnect the
negative cord first, when connecting, positive cord first.
W1033112
Transmission fluid
capacity
L4630
43 L
11.4 U.S.gals
9.5 Imp.gals
L5030
45 L
11.9 U.S.gals
9.9 Imp.gals
(1) Drain Plugs
(2) Filling Plug
(3) Dipstick
(A) Oil level is acceptable within this
range.
(1) Bonnet
(2) Window Washer Hose
(3) Skirt
(4) Front Grill
To Next Page
