9-M29
L3130 · L3430 · L3830 · L4630 · L5030, WSM
ELECTRICAL SYSTEM

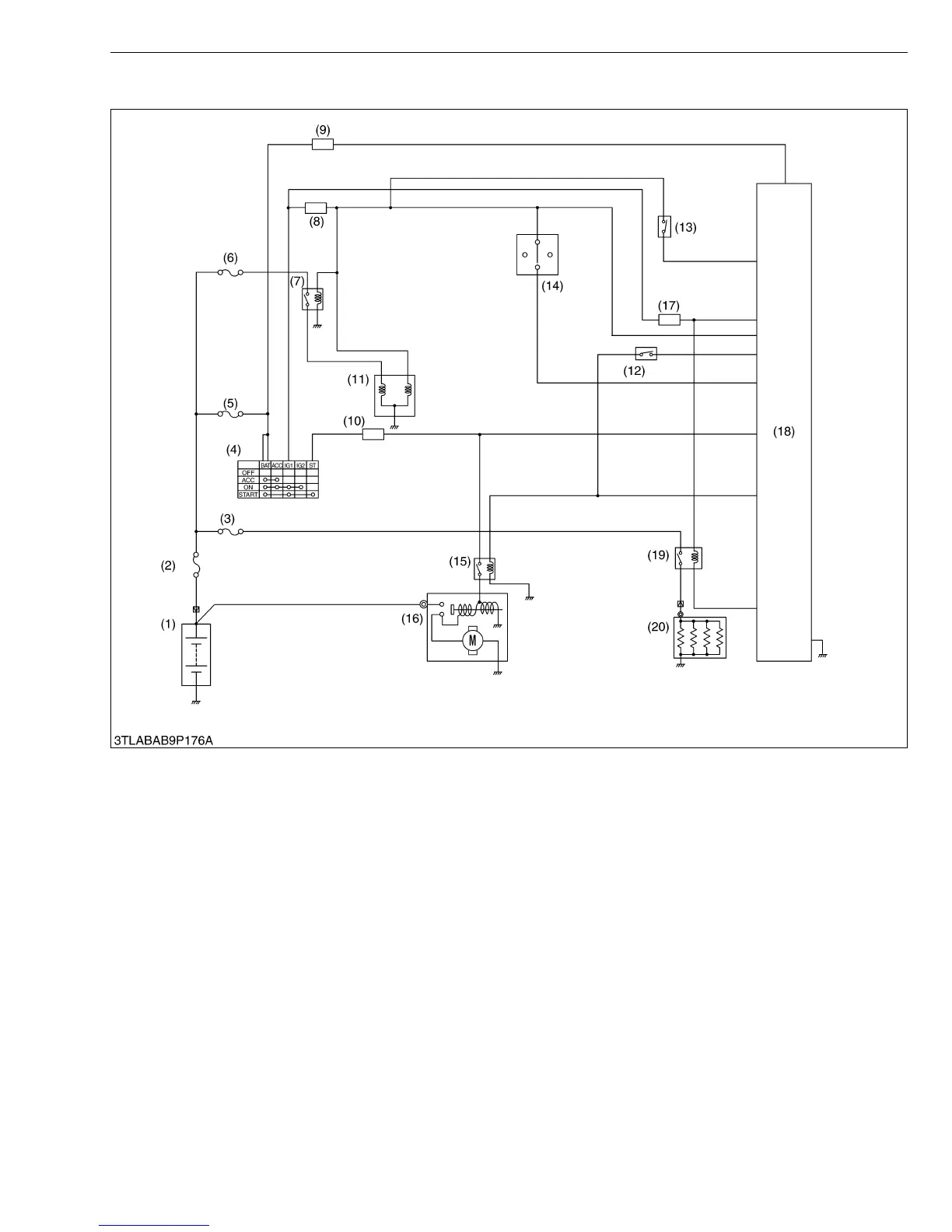

[2] MANUAL CABIN MODEL
(1) Battery
(2) Slow Blow Fuse (80 A)
(3) Slow Blow Fuse (50 A)
(4) Main Switch
(5) Slow Blow Fuse (60 A)
(6) Slow Blow Fuse (30 A)
(7) Key Stop Solenoid Relay
(8) Fuse (5 A)
(9) Fuse (5 A)
(10) Fuse (30 A)
(11) Key Stop Solenoid
(12) PTO Switch
(13) PTO Speed Change Switch
(14) Shuttle Switch
(15) Starter Relay
(16) Starter
(17) Fuse (7.5 A)
(18) Electronic Instrument Panel
(IntelliPanel)
(19) Glow Relay
(20) Glow Plug
To Next Page
