9-S54
L3130 · L3430 · L3830 · L4630 · L5030, WSM
ELECTRICAL SYSTEM

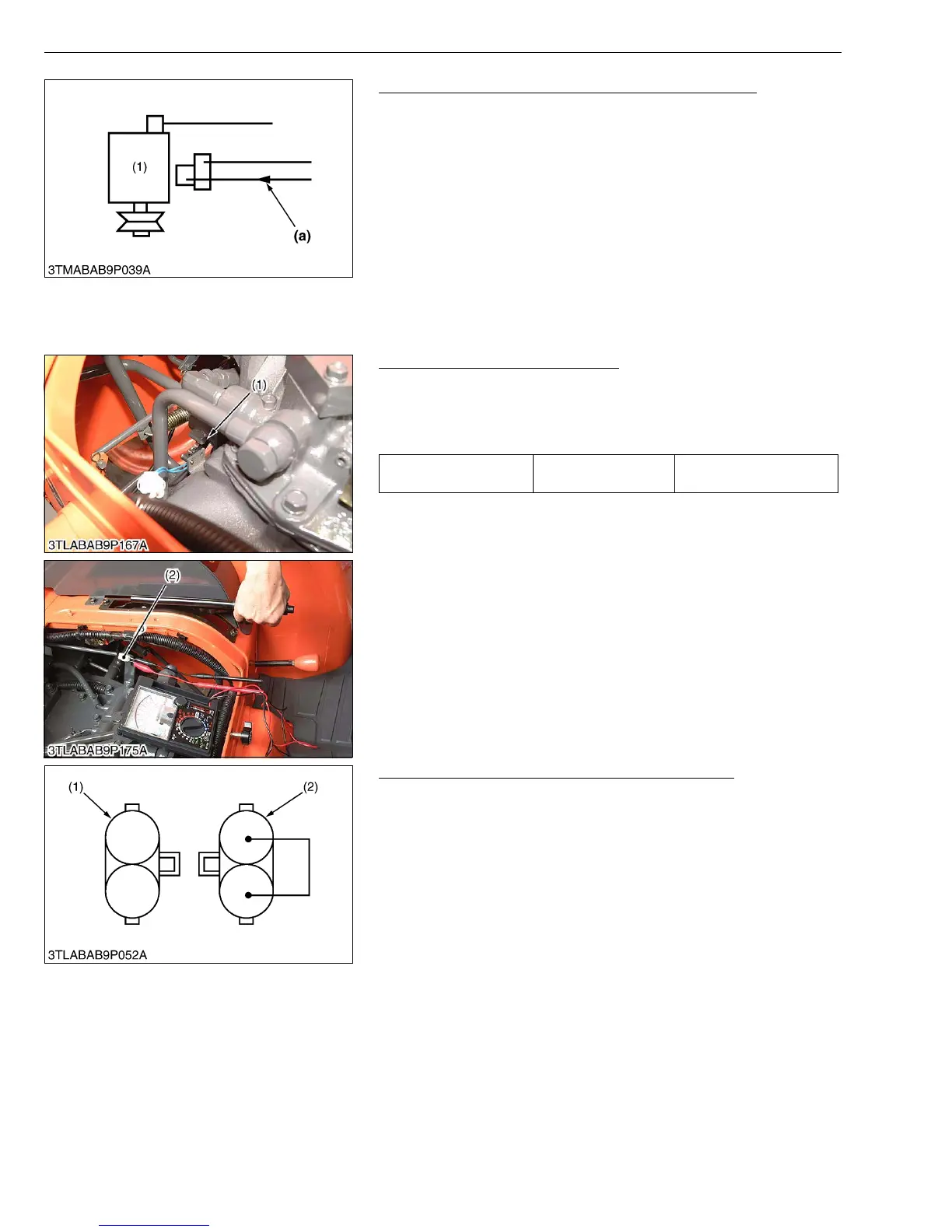

Charging Circuit (Panel Board and Wiring Harness)
1. Disconnect the 2P connector from the alternator after turning the
main switch OFF.
2. Turn the main switch ON and connect a jumper lead from the
wiring harness connector terminal (WR) to the chassis.
3. If the charge lamp does not light, the panel board circuit,
alternator, wiring harness, or fuse is fault.
W10262530
[7] MONITOR LAMP
(1) Checking
Parking Brake Switch Continuity
1. Disconnect the connector from the parking brake switch (1) after
turning the main switch OFF.
2. Measure the resistance between the two terminals.
3. If infinity is not indicated, the switch is faulty.
W1026390
Parking Brake Switch Panel and Wiring Harness
1. Disconnect the connector from the parking brake switch after
turning the main switch OFF.
2. Turn the main switch ON and connect a jumper lead between the
connector terminals of wiring harness.
3. If the parking brake indicator lamp does not light, the panel circuit
or wiring harness is faulty.
W1026754
(1) Alternator (a) From Charge Lamp
Resistance (Across
switch terminals)
In normal state Infinity
(1) Parking Brake Switch (2) Connector of Parking Brake Switch
(1) Connector of Parking Brake Switch (2) Connector of Wiring Harness
To Next Page
