9-S45
L3130 · L3430 · L3830 · L4630 · L5030, WSM
ELECTRICAL SYSTEM

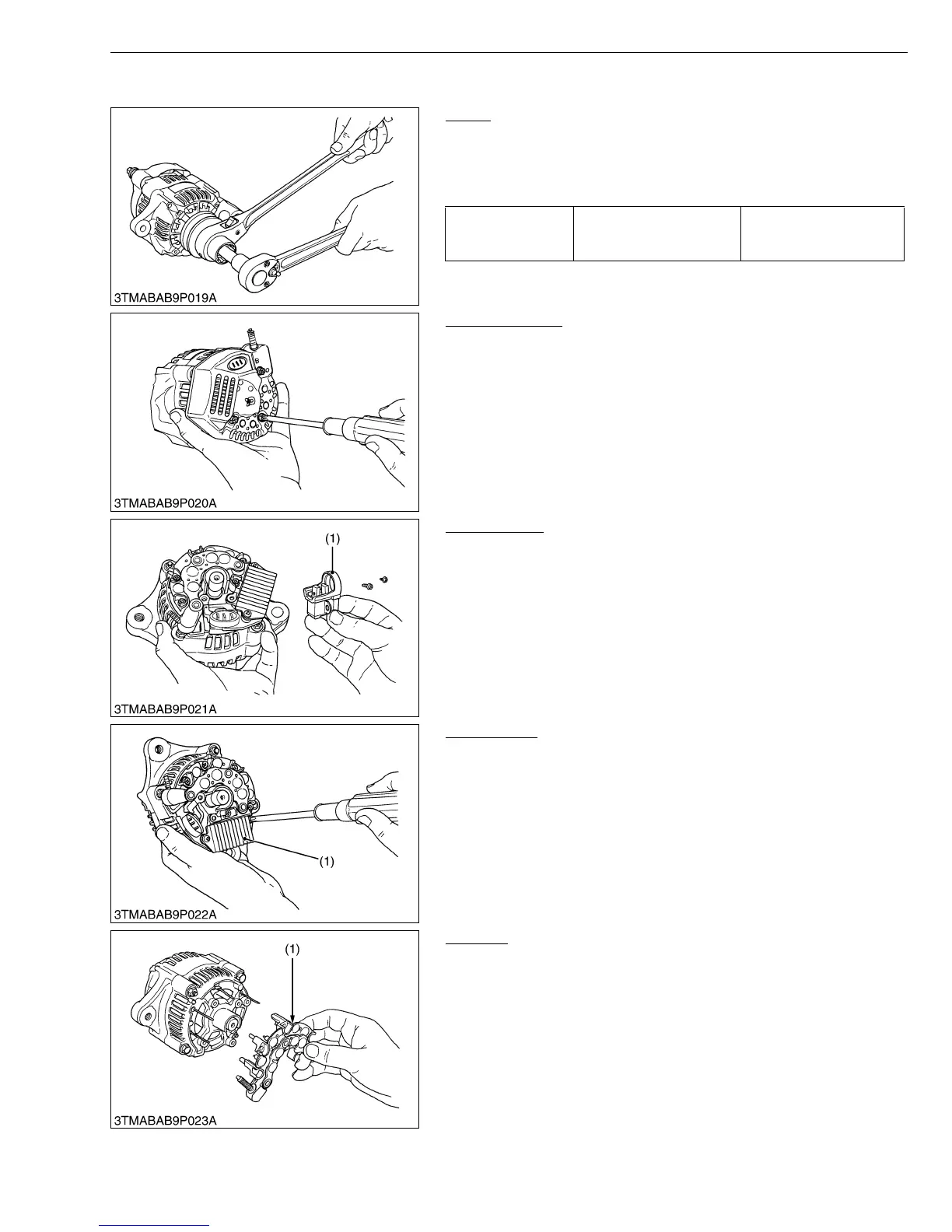

(2) Disassembling and Assembling
Pulley
1. Secure the hexagonal end of the pulley shaft with a double-
ended ratchet wrench as shown in the figure, loosen the pulley
nut with a socket wrench and remove it.
(When reassembling)
W10187280
Rear End Cover
1. Unscrew the three rear end cover screws and the B terminal nut,
and remove the rear end cover.
W10189820
Brush Holder
1. Unscrew the two screws holding the brush holder (1), and
remove the brush holder (1).
W10190540
IC Regulator
1. Unscrew the three screws holding the IC regulator (1), and
remove the IC regulator (1).
W10191230
Rectifier
1. Remove the four screws holding the rectifier (1) and the stator
lead wires.
2. Remove the rectifier (1).
W10191920
Tightening torque Pulley nut
58.3 to 78.9 N·m
5.95 to 8.05 kgf·m
43.0 to 58.2 ft-lbs
(1) Brush Holder
(1) IC Regulator
(1) Rectifier
To Next Page
