3-M9
L3130 · L3430 · L3830 · L4630 · L5030, WSM
TRANSMISSION
[2] CHARACTERISTIC AND SYSTEM OUTLINE
The GST of a new version is adapted in the L30 series
tractor. In addition to the former GST system that
controls the gear shifting and clutch operation
hydraulically, this new GST has the function to control
these operations electrically.
12 forward and 8 reverse speeds can shift only by
operating the main shift lever (GST lever) (4) and shuttle
shift lever (3) without the clutch operation as well as the
former GST system. In addition, the movement and gear
shifting according to the oil temperature and the traveling
speed can be achieved by having electronically
controlled the GST system, and a smoother operation
can be done.
Moreover, because the selected speed and the
traveling speed can be confirmed by the liquid crystal
display (LCD) (1) of electronic instrument panel
(IntelliPanel) (2), it can do a comfortable tractor
operation. And it is excellent in service because it can
confirm the error indication with an electronic instrument
panel (2) when the electric wiring is disconnected or
short-circuited.
W1014583

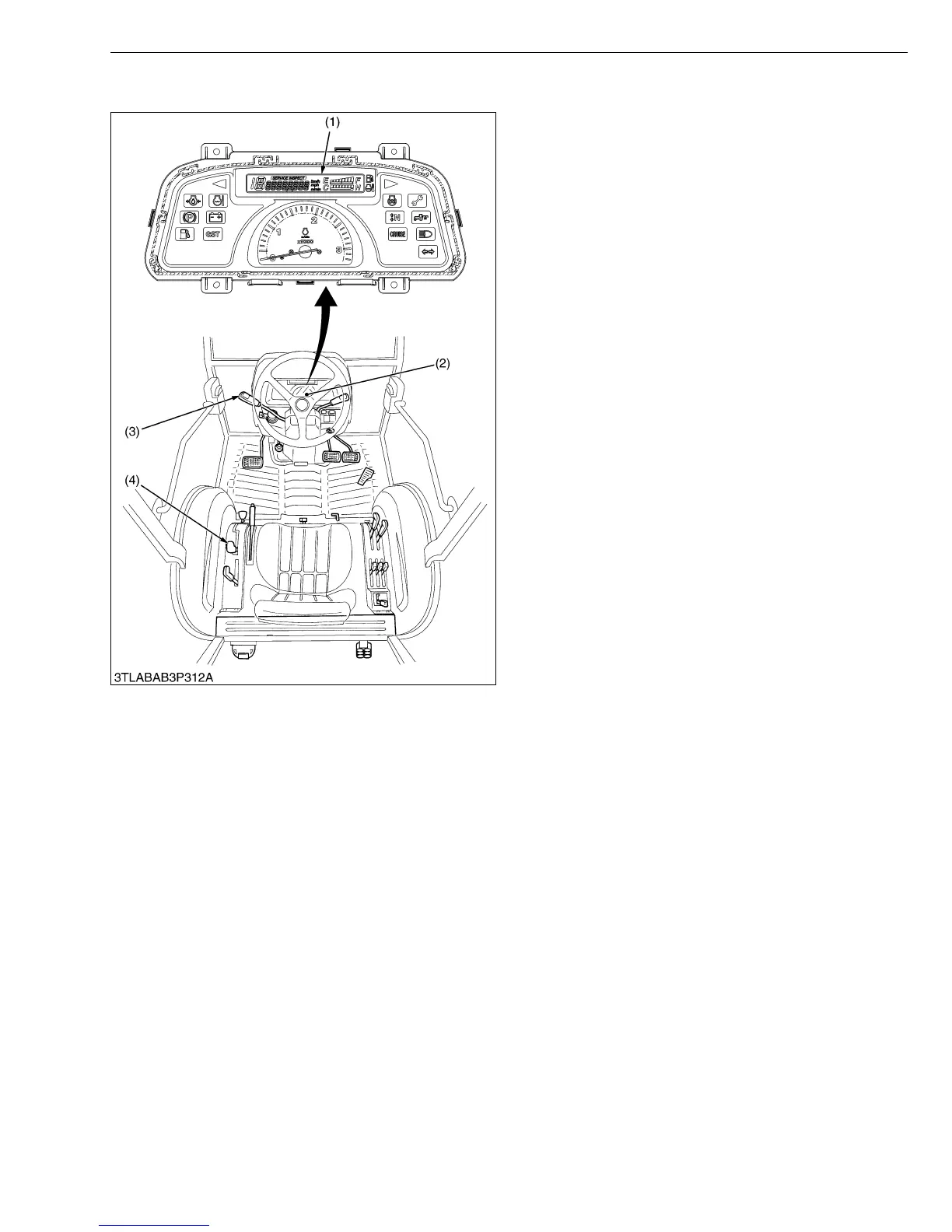

(1) Liquid Crystal Display (LCD)
(2) Electronic Instrument Panel
(IntelliPanel)
(3) Shuttle Lever
(4) Main Shift Lever (GST Lever)
To Next Page
