Tray 5
ColorQube 9301/9302/9303 Multifunction Printer
User Guide
176
Tray 5
Tray 5 is an optional high-capacity paper source. When installed, Tray 5 takes priority as the primary
paper feeder. This tray is a dedicated tray and as standard feeds A4 or 8.5 x 11 in. LEF media
Additio
nal kits can be purchased and enable the tray to take either A4, 8.5 x 11 in. or 8.5 x 14 in. SEF,
or A3
or 11 x 17 in. SEF. The following media can be loaded in Tray 5:
• Up to 4000 sheets of 75 g/m² or 20 lb paper (A4 or 8.5 x 11 in. LEF), up to 2000 sheets of 75 g/m²
or
20 lb, paper (additional kits).
•Weights ranging from 60 g/m² to 216 g/m² (16–56 lb).
•Media types:
• Bond, standard, or recycled paper
•Card
•Pre-printed media
• Hole-punched paper
Tray 5 must not be used to feed labels, transparencies,
envelopes, tabs, or carbonless paper. Tray 4
(Bypass) can be used for these media types.
Loading Tray 5
The requested paper size and type must be loaded in the tray, and the settings cannot be adjusted by
the user.
Note: The printer does not warn you if media of
incorrect size is loaded.
CAUTION: A problem may occur if a tray is opened while it is being used to feed media.
1. Press the button to open the
door.
Opening the tray automatically lowers
an elevator in the base of the tray. Wait for the paper tray
to lower.
2. The required media is displayed on the
sc
reen. Ensure that the correct media is
loaded.

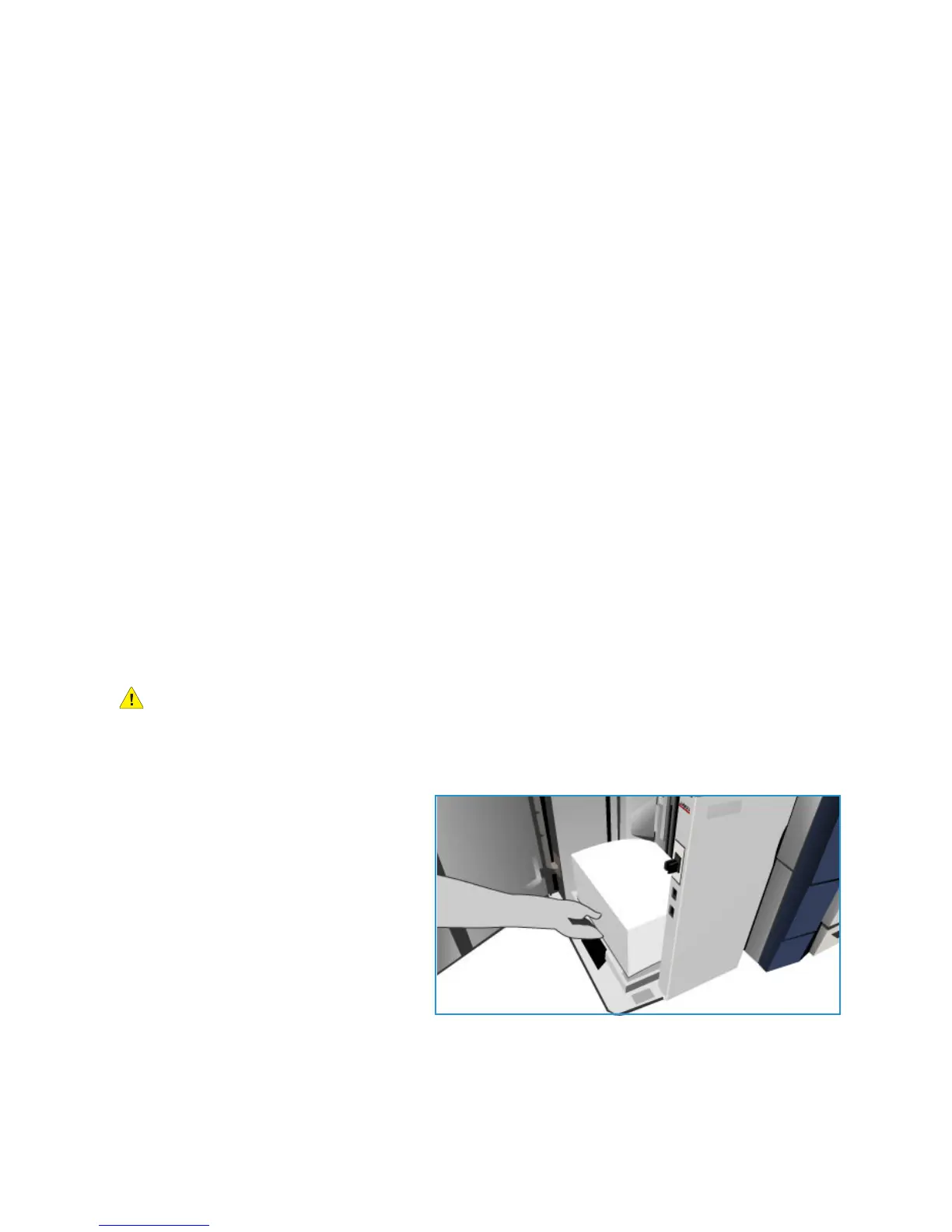

3. Place the media in the tray. The media
must be positioned against the right
side of the tray.
• Load pre-printed paper face down
and with the
top toward the front
of the printer.
• Load hole-punched paper with the
holes on the left
edge.
Paper must not be loaded above the maximum fill line.
4. Close the door.
When the door is closed, the elevator rises to feed the media.
