Xerox Phaser 6280 Service Manual

8-40 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly

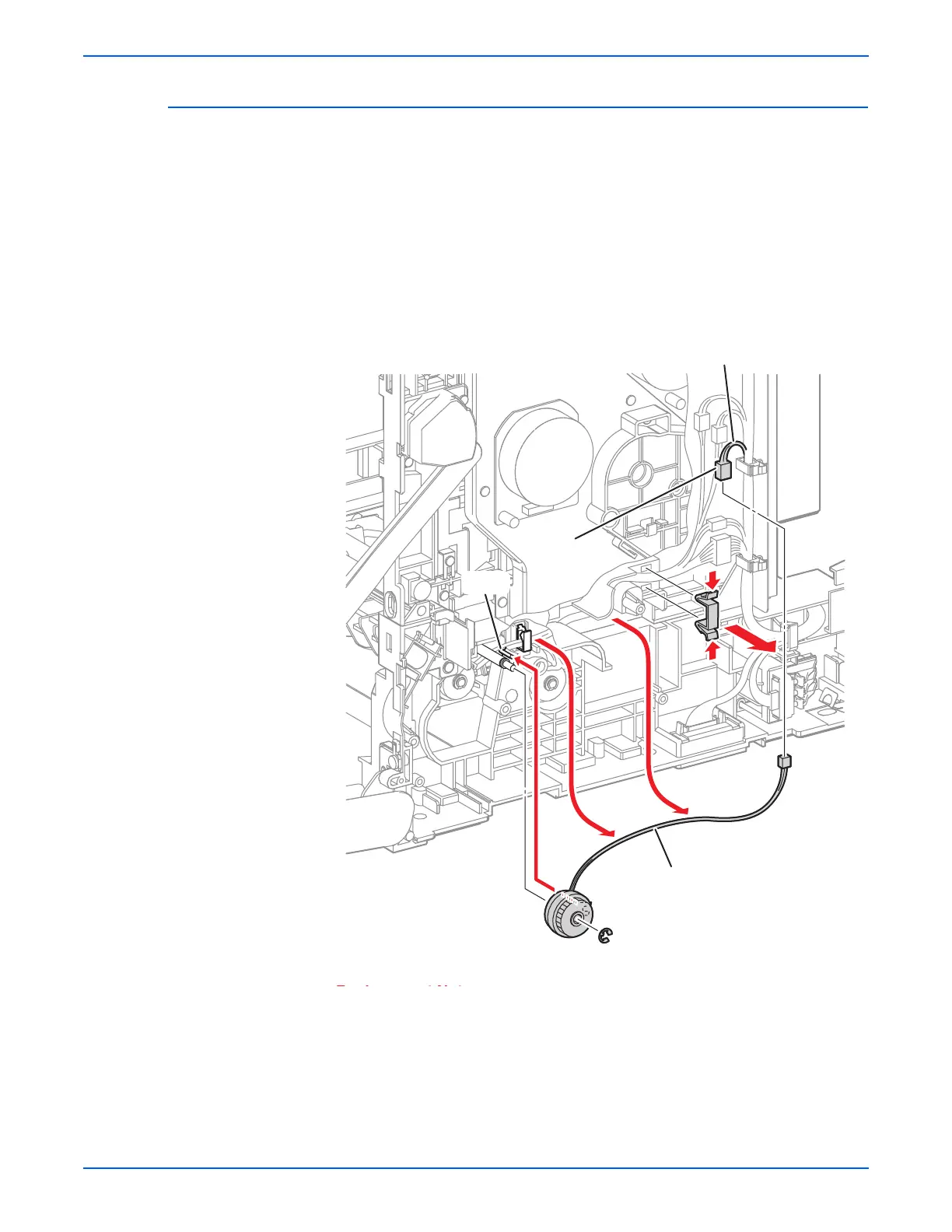

Registration Clutch (PL3.2.23)
1. Remove the Rear Cover (page 8-12).
2. Remove the Right Side Cover (page 8-13).
3. Remove the PH Drive Assembly (page 8-73).
4. Disconnect the Registration Clutch wiring harness connector P/J231.
5. Release the gray Registration Clutch wiring harness from the clamp and
the clamp of the Feeder Assembly (PL3.2.1).
6. Remove the E-ring securing the Registration Clutch to the Feeder
Assembly.
7. Remove the Registration Clutch from the Feeder Assembly.
Replacement Note
Replacement Note
Ensure to match the color of the Clutch Harness and the color of the
Clutch positioning rib. The Registration Clutch Harness is Gray.
s6280-198
Gray
Gray
Gray
P/J231
