Phaser 6280 Color Laser Printer Service Manual 8-79
Service Parts Disassembly
Electrical

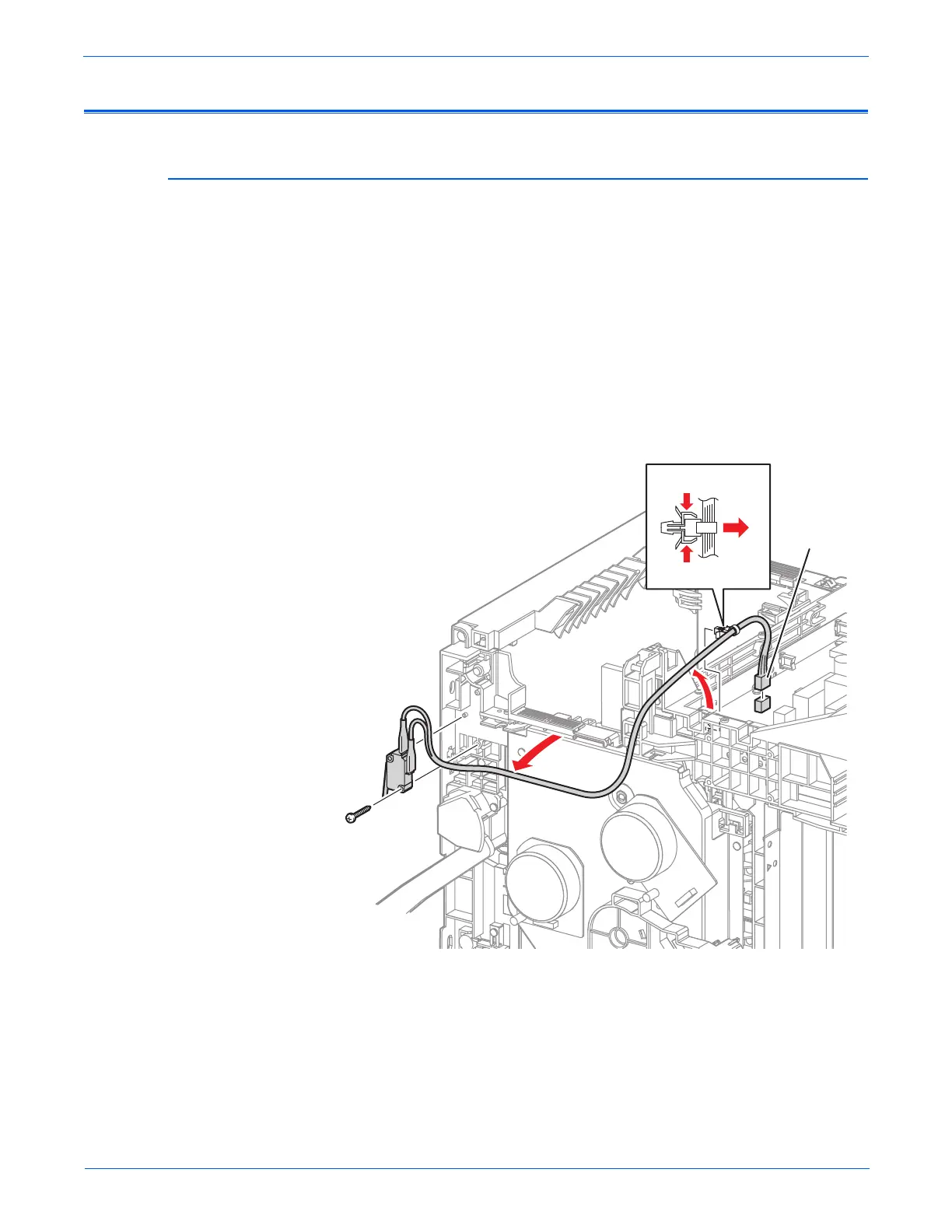

Interlock Assembly Harness (PL9.1.3)
1. Remove the Rear Cover (page 8-12).
2. Remove the Right Side Cover (page 8-13).
3. Remove the Left Side Cover (page 8-14).
4. Remove the Top Cover (page 8-15).
5. Disconnect the Interlock Harness wiring harness connector P/J44 on the
LVPS (PL9.1.4).
6. Release the Clamp on the LVPS Shield (PL9.1.9) securing the Interlock
Harness wiring harness.
7. Remove the Interlock Harness from the duct of the printer.
8. Remove 1 screw (16 mm) securing the Interlock Harness to the printer.
9. Remove the Interlock Harness from the printer.
s6280-288
P/J44
