Xerox Phaser 6280 Service Manual

Phaser 6280 Color Laser Printer Service Manual 8-101
Service Parts Disassembly
Tray 3 Left Cover (PL12.1.2)
1. Remove Tray 3 from the Optional 550-Sheet Feeder.
2. Remove 2 screws (8 mm, flanged) securing the Left Cover to the Optional
Frame Assembly (PL12.2.1).
3. Open the Left Cover toward the front side to release the 2 hooks securing
to the Optional Frame Assembly.
4. Open the rear side of the Left Cover toward the rear side and release the
convex part of the Left Cover from the concave part of the Optional Frame
Assembly.
5. Remove the Left Cover.

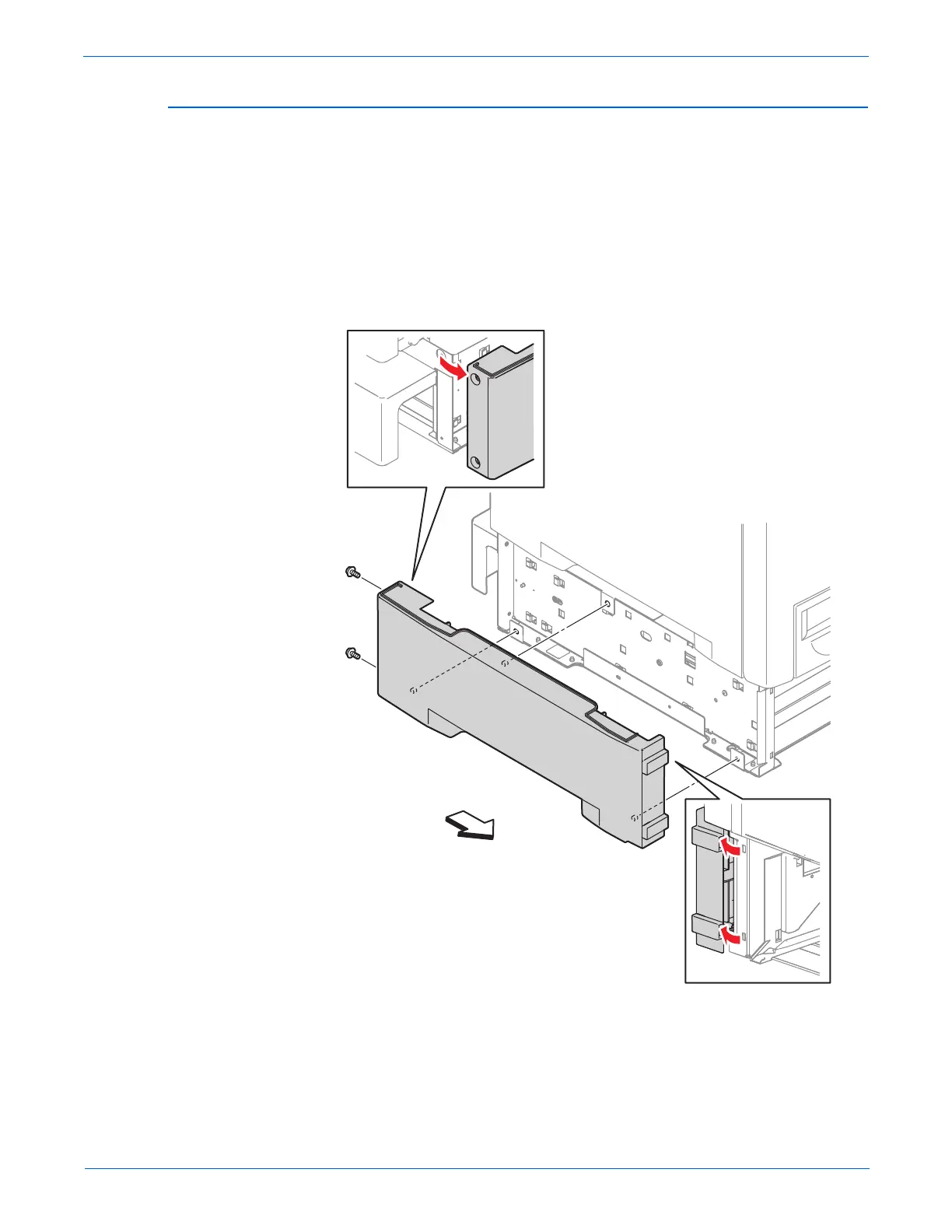

s6280-255
Front
