Phaser 6300/6350/6360 Color Laser Printer Service Manual 5-29
Print-Quality Troubleshooting

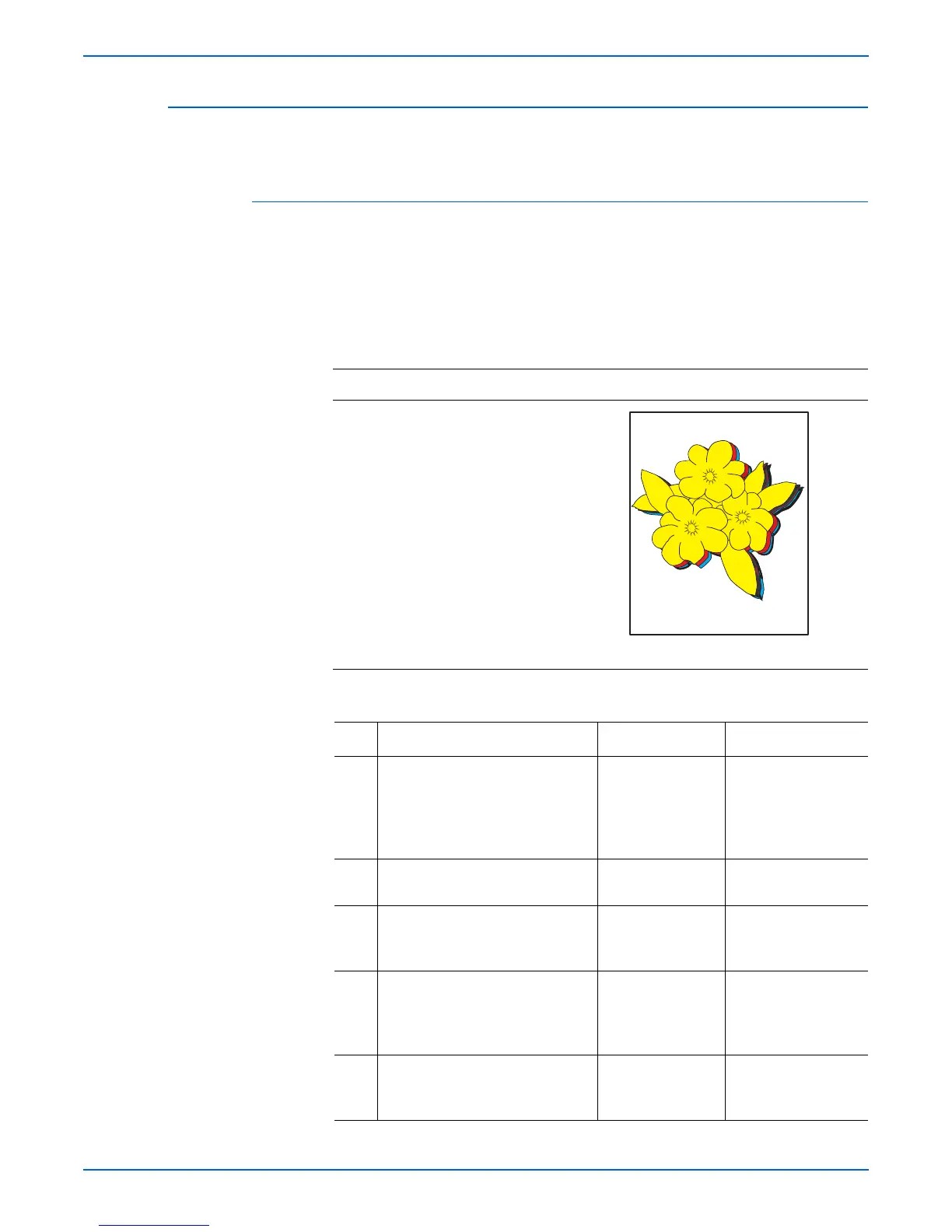

Mis-Registration, Color Layers Not Correctly Registered
The four colors of the image are not registered correctly into one image.
Initial Actions:
■ If the mis-registration is in the horizontal direction, perform the color
registration adjustment, see (page 6-3).
■ If the mis-registration is in the vertical direction, clean the CTD (ADC)
Sensor, and then print the Color Registration page.
Troubleshooting Reference Table
Applicable Parts Example Print
■ Imaging Unit, PL6.1.1
■ Laser Unit, PL6.1.2
■ CTD Sensor, PL5.2.19
■ Transfer Roller, PL5.1.4
■ HVPS, PL9.1.21
■ Image Processor Board, PL9.1.3
■ Engine Control Board, PL9.1.16
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Reseat the Imaging Unit. Latch
Door C, and check that the
Transfer Roller is fully seated and
clipped in place.
Is the problem resolved?
Complete Go to Step 2.
2 Clean the CTD (ADC) Sensor.
Is the problem resolved?
Complete Go to Step 3.
3 Replace the CTD (ADC) Sensor
(
page 8-72).
Is the problem resolved?
Complete Go to Step 4.
4 Print the 600 x 600 Service Test
Print.
Are all the colors aligned both
vertically and horizontally?
Replace the Image
Processor Board
(
page 8-99).
Go to Step 5.
5 Replace the Laser Unit,
(
page 8-77).
Does the image quality improve?
Complete Replace the Engine
Control Board
(page 8-106).
s6360-120

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
