2-38 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Theory of Operation
Tray 1 (MPT)
N
o
t
e
Envelope Feed Rollers have been added to the Tray 1 (MPT) Shaft for the
6360 model. These rollers are clipped to the shaft and held in place by
moulded pins that engage holes in the shaft.
■ Feed Roller
When the Tray 1 (MPT) Feed Solenoid energizes, the Gear MPT and the
Idler Gear are engaged by the force of the solenoid spring. The Feed
Roller rotates from the drive of the Main Drive Assembly and feeds paper
from Tray 1. After rotating one turn, the Gear MPT and the Idler Gear are
disengaged, the Main Drive Assembly and Feed Roller stop, allowing only
one sheet of paper to be fed through at a time.
■ Envelope Feed Rollers
These rollers, present on 6360 models, assist in transporting envelopes
or other custom media sizes through Tray 1 (MPT).
■ Tray 1 (MPT) No Paper Sensor
Detects whether print media is present.
■ Tray 1 (MPT) Feed Solenoid
Controls the operation (rotation/stop) of the Tray 1 (MPT) Feed Roller.
■ Size Guides
Indicates the paper width, maximum capacity, and holds the paper in
proper alignment for feeding.

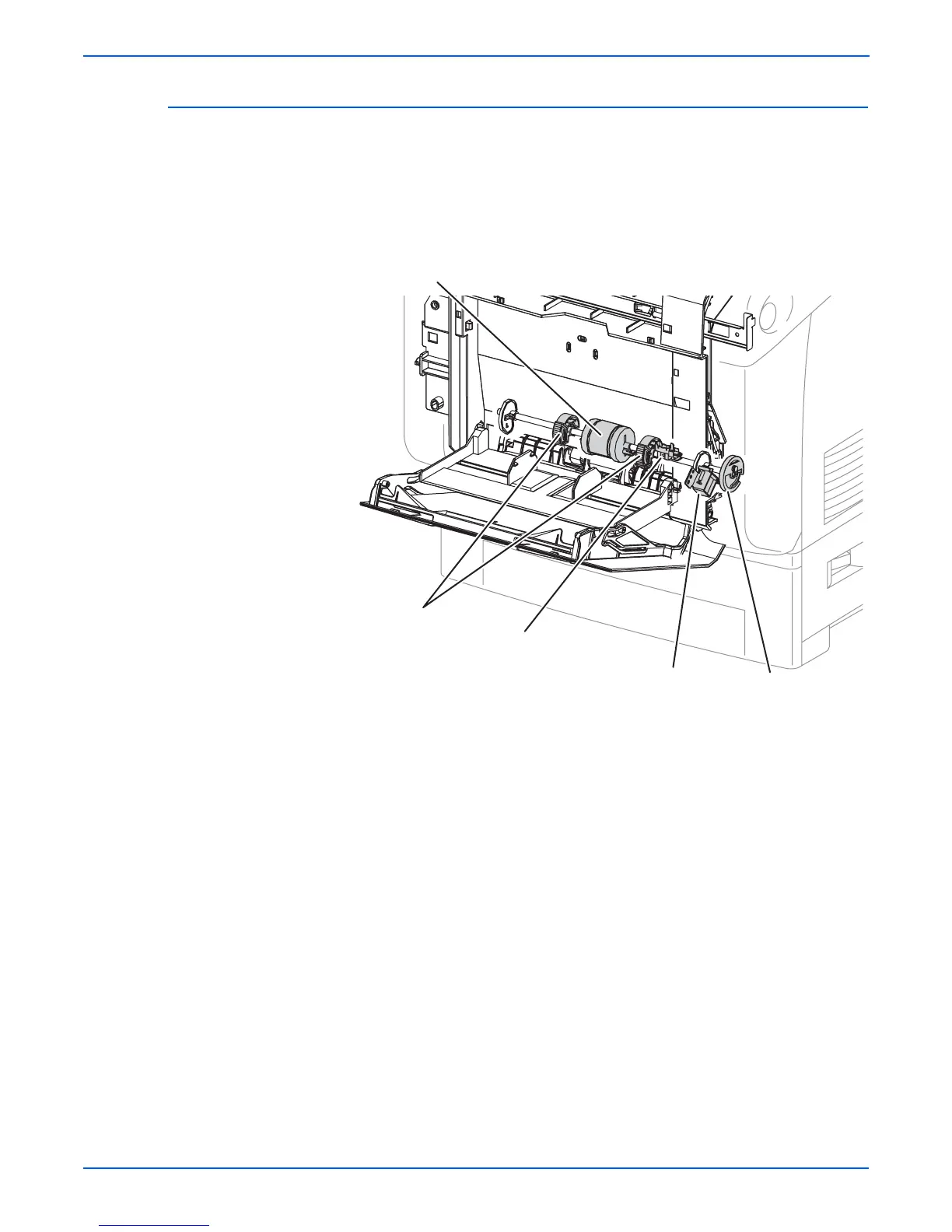

No Paper Sensor
Envelope Rollers
Feed Solenoid
Gear MPT
s6360-350
T
ray 1 (MPT)
Feed Roller

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
