Xerox Phaser 6360 Service Manual

8-6 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Service Parts Disassembly
Fastener Types
The following table lists the primary types of Posi-Drive screws used to
assemble the printer. The procedures provide dimensional specifications for
screws being removed.
Caution
Use care when installing self-tapping screws in plastic. To properly start
the screw in plastic, turn the screw counter-clockwise in the hole until you
feel the screw engage the threads, then tighten as usual. Failure to
properly align or over tighten the screw can result in damage to previously
tapped threads.

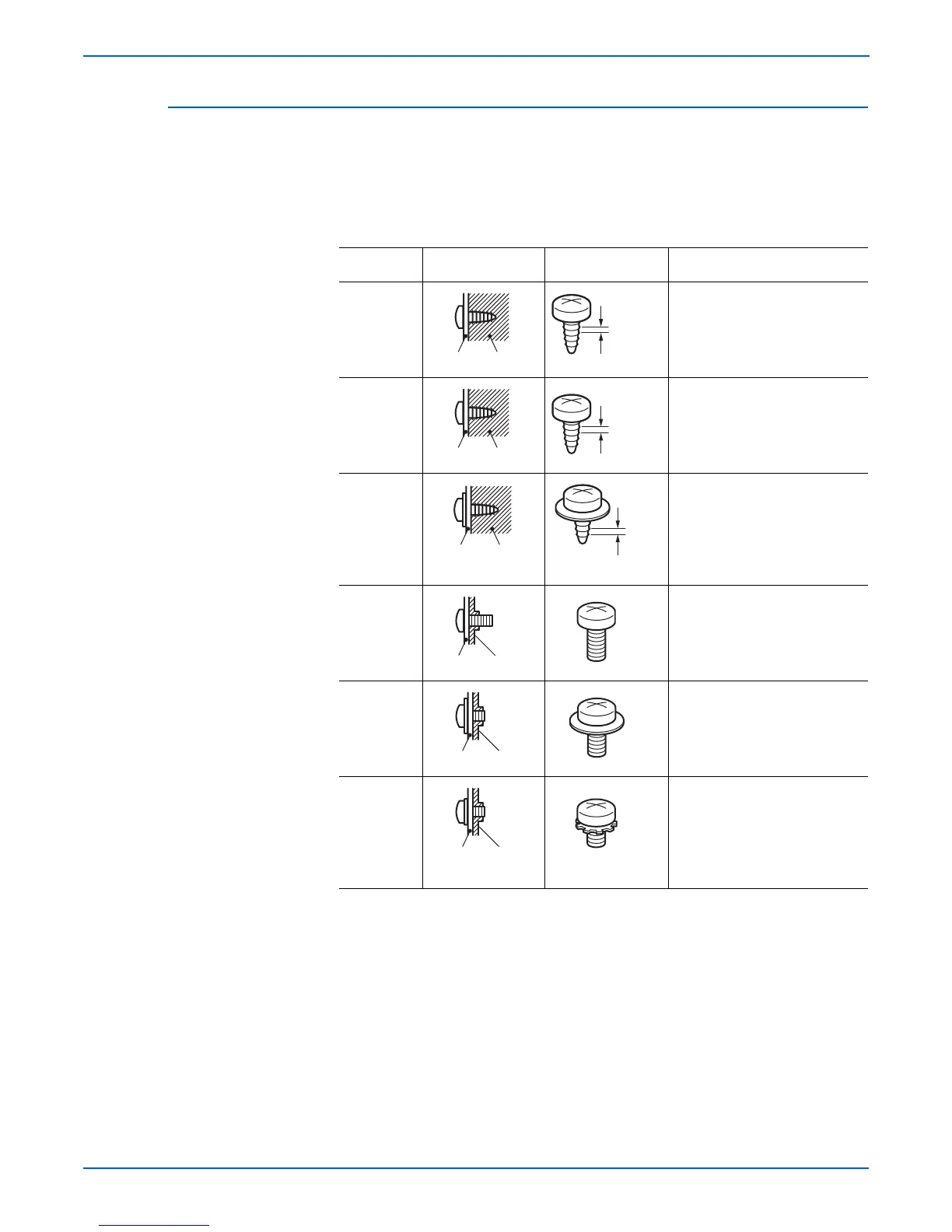

Posi-Drive Screw Types used in the Printer
Type Application Shape Characteristics
Self-
tapping,
plastic
1. Silver colored
2. Screw thread is coarse
compared to metal screw.
3. Screw tip is thin.
Self-
tapping,
plastic
1. Black colored
2. Screw thread is coarse
compared to metal screw.
3. Screw tip is thin.
Self-
tapping,
plastic with
flange
1. Silver colored
2. It has a flange.
3. Screw thread is coarse
compared to metal screw.
4. Screw tip is thin
Sheet Metal,
silver
1. Silver colored
2. Diameter is uniform
3. Typically 6 mm in length
Sheet Metal.
with flange
1. Silver colored
2. It has a flange.
3. Diameter is uniform
Sheet Metal,
silver with
lock washer
1. Silver colored
2. Includes a toothed washer
3. Diameter is uniform
4. Used for grounding
terminals.
Parts etc Plastic
Coarse
Parts etc Plastic
Coarse
Parts etc Plastic
Coarse
Parts etc Sheet metal
Parts etc Sheet metal
Parts etc Sheet metal

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
