Xerox Phaser 6360 Service Manual

Phaser 6300/6350/6360 Color Laser Printer Service Manual 8-3
Service Parts Disassembly
Also note that parent assemblies including unique components have unique
part numbers. For example, the Chute Assembly In for the 6360 model
includes a different Fuser Drive Assembly than the same part for the 6300/
6350 model. So for this parent assembly, two part numbers are listed as
shown in this example:
The Chute Assembly Out and Chute Assembly Duplex are other parent
assemblies that include unique 6360 parts. Parts common to all models do
not include the model-specific desgination. For specific assemblies and parts,
see the Parts
List on page 9-4.
ID No Part Number Name/Description
1. 116-1989-00
054K38040
Chute Assy In (with 2~30), (6300/6350)
Chute Assy In (with 2~31), (6360)

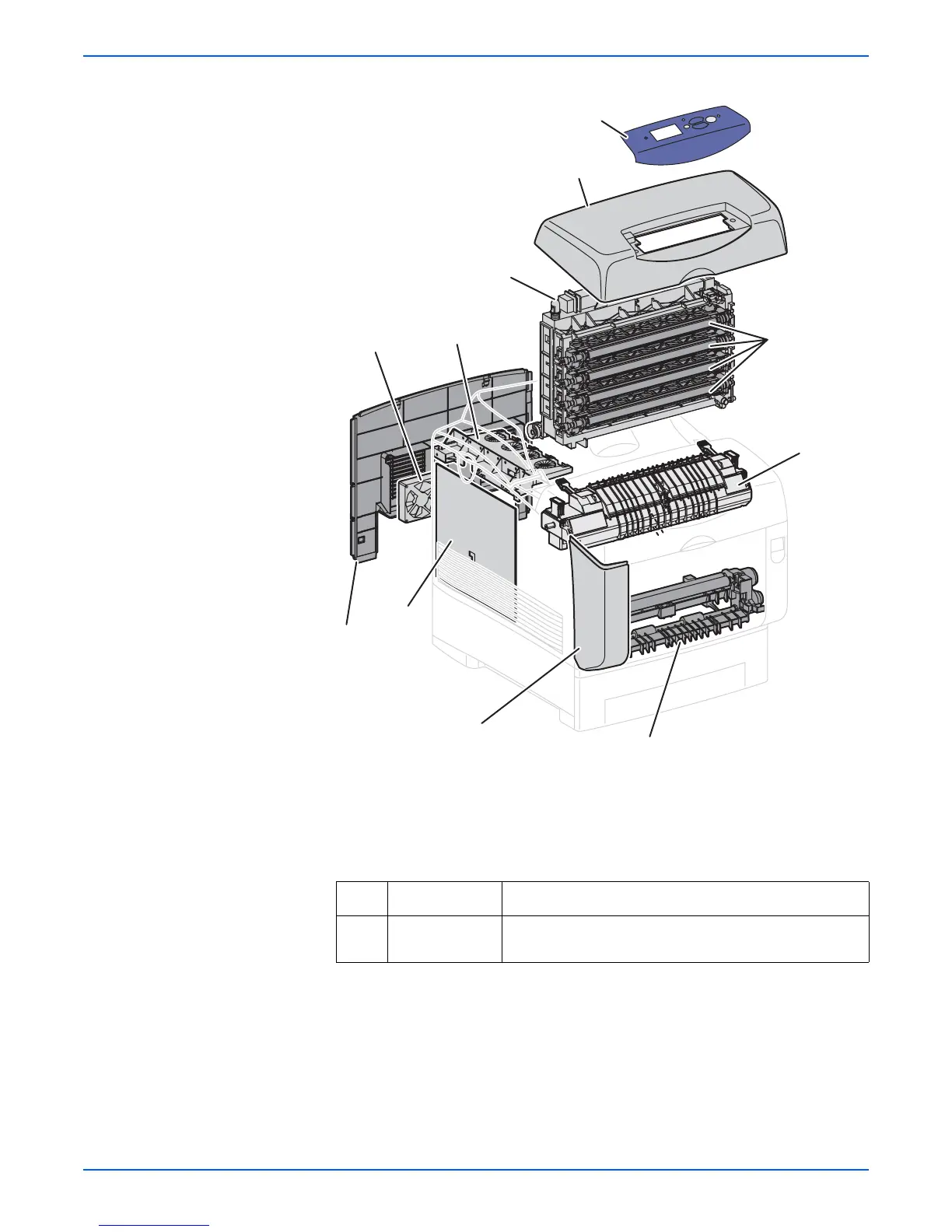

s6360-388
Front Left Cover
HVPS
CRUM Reader
Registration Chute Assembly
LVPS Fan
Rear Cover
Fuser
Control Panel
Front Cover
Developer Frame
Assembly
Developer
Assemblies

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
