Xerox WorkCentre 5890 User Manual

August 2015
5-114
Xerox® WorkCentre® 5890 Family
PL 40.15
Parts Lists

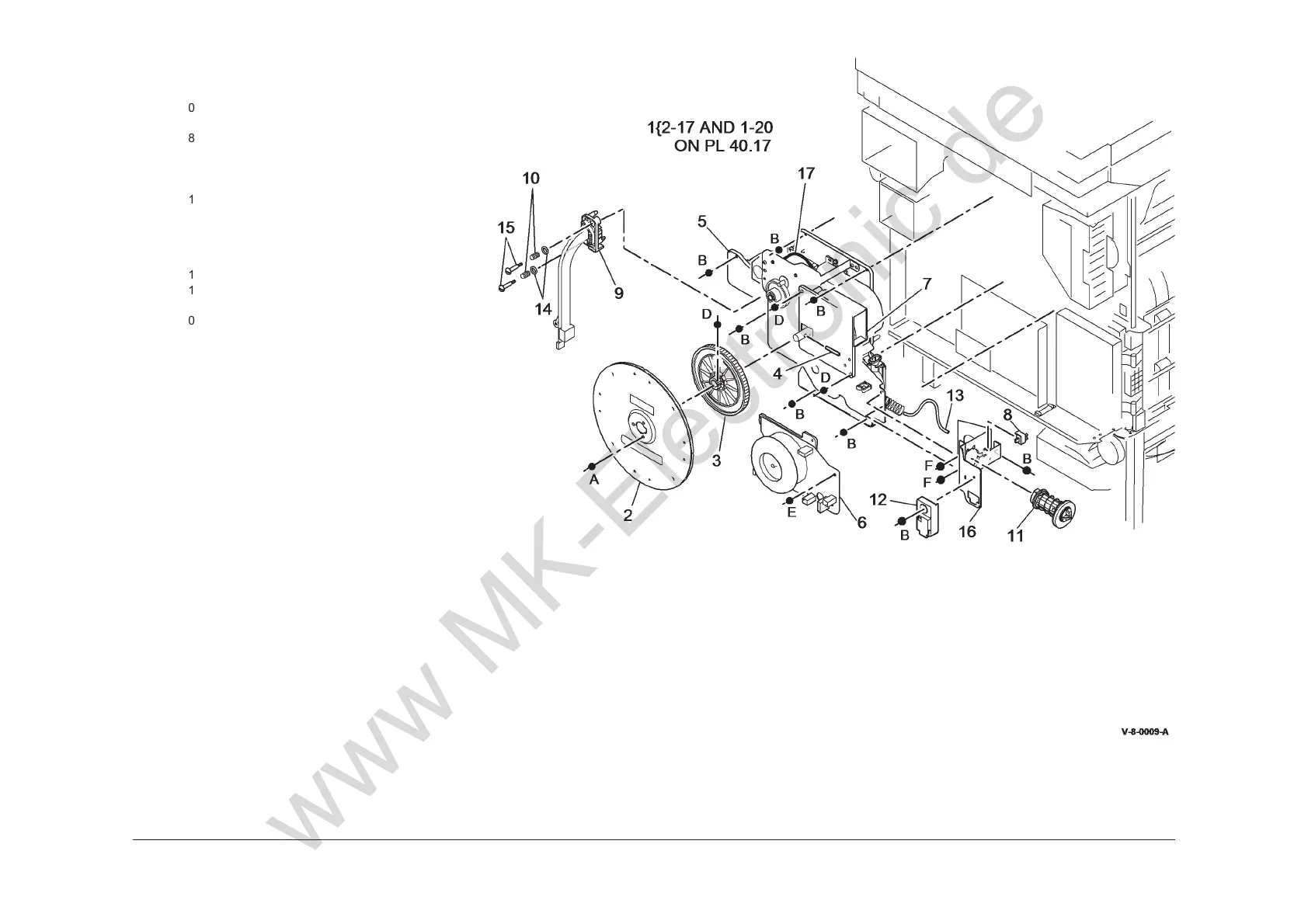

PL 40.15 Main Drive Module (45-55
p
pm) (1 of 2)
Item Part Description
1
007K14339 Main drive module (REP 40.1)
2 – Flywheel (P/O PL 40.15 Item 1)
3 807E06601 Photoreceptor drive gear (REP
40.4)
4 – Dowel pin (P/O PL 40.15 Item 1)
5 – Main drive (P/O PL 40.15 Item 1)
6 127K55421 Main drive motor and PWB
assembly (MOT42-010) (NOTE)
(REP 40.2)
7 – Ozone fan (MOT42-030) (REF: PL
90.25 Item 1)
8 130E10530 Waste toner door switch (S93-380)
9 114E18630 Fuser connector assembly
10 – Spring (P/O PL 40.15 Item 1)
11 055K36091 Shutter assembly (REP 90.10)
12 – Waste toner full sensor (Q93-350)
(P/O PL 90.10 Item 2)
13 – Auger damper kit (REF: PL 31.12
Item 5) (REP 90.10)
14 – Washer (P/O PL 40.15 Item 1)
15 – Screw (P/O PL 40.15 Item 1)
16 – Mounting bracket (P/O PL 40.15
Item 1)
17 – Photoreceptor drive motor (MOT91-
010) (P/O PL 40.15 Item 1)
NOTE: The main drive motor is an integral part of the main
drive PWB.
